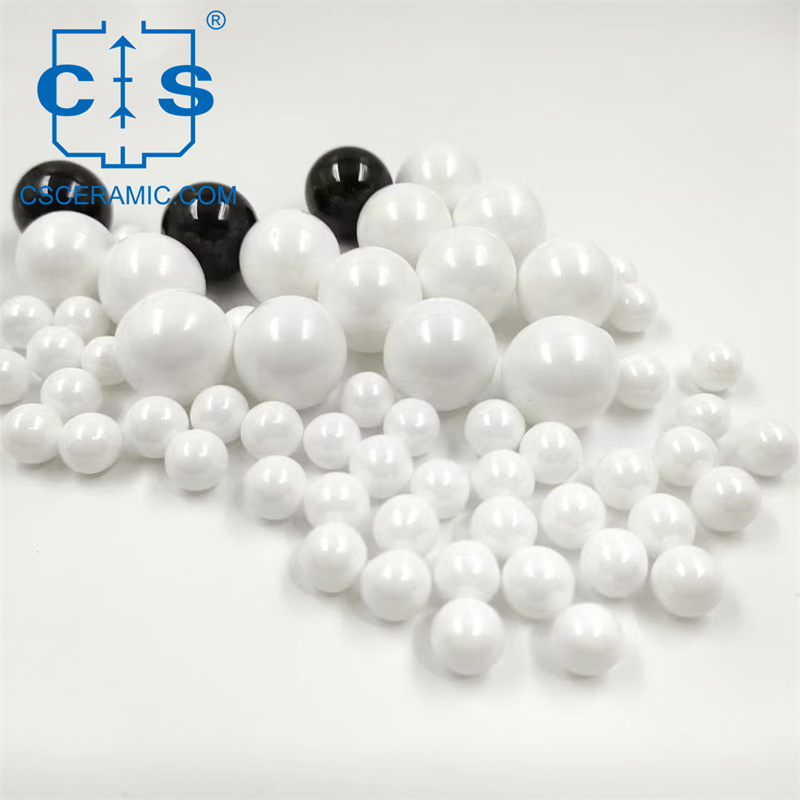

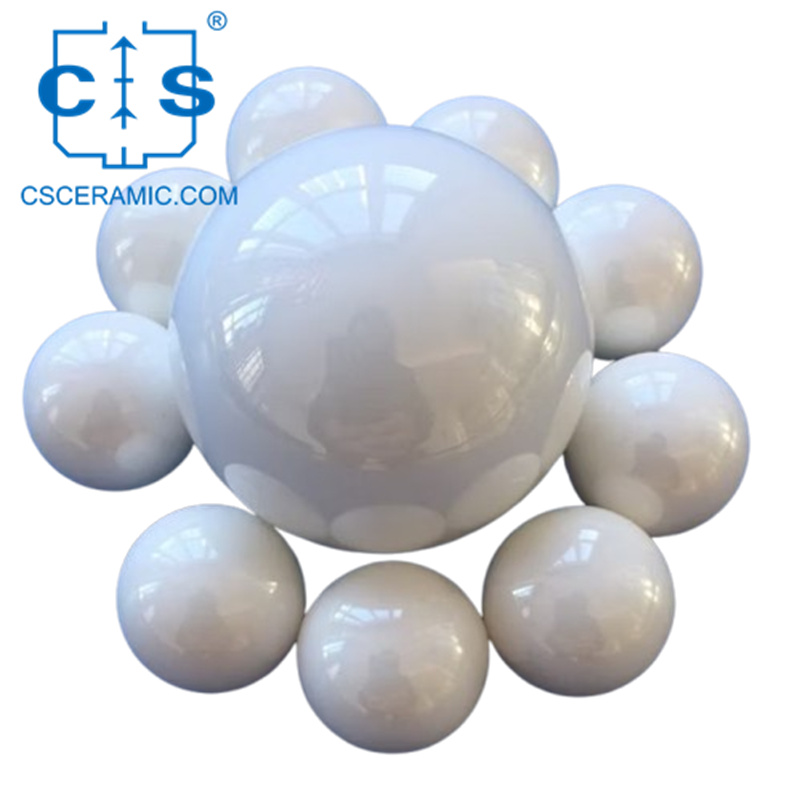

ZTA Ceramic Grinding Balls Ultra-Fine Grinding Media for High Hardness Abrasives

ZTA grinding balls feature high mechanical strength, fracture toughness, wear resistance, heat & corrosion resistance, ideal for ultra-fine grinding of high hardness abrasives.

item no. :
CS-ZTA-Q1001
Material : ZTA

contact now catalogue

description

Properties of ZTA Ceramic Grinding Beads

High Efficiency & Longevity: ZTA grinding balls boast exceptional grinding efficiency and wear resistance, ensuring a prolonged service life, ideal for intensive grinding applications.
Corrosion Resistance: With robust acid, alkali, and salt resistance, these balls are versatile for various grinding materials. Their smooth surface facilitates easy cleaning and maintenance.
Mechanical Strength & Durability: Characterized by high mechanical strength, good toughness, and high impact resistance, ZTA grinding balls remain intact during high-speed operations, minimizing downtime and maintenance costs.
Eco-Friendly & Safe: Made from non-toxic, harmless, and pollution-free materials, ZTA grinding balls are perfect for food and medicine applications, adhering to strict zero-pollution standards.

Applications of ZTA Ceramic Grinding Beads

Fine Grinding Media: Suitable for ball mills, sand mills, and other equipment, ZTA balls are ideal for ultra-fine grinding of high-viscosity, high-hardness materials requiring "zero pollution."
High-End Grinding Needs: Primarily used for ultra-fine grinding of high-hardness materials, including:
- Dyes & Coatings: Ink, pigments, paints, and more.
- Electronic Materials: Resistors, capacitors, LCD pastes, plasma display glass glues, semiconductor polishing pastes, gas sensor pastes, and others.
- Medicine, Food, & Cosmetics: Ensuring purity and safety in sensitive applications.
- Lithium Battery Raw Materials: Lithium iron, lithium titanate, graphite, silicon carbide, graphene, carbon nanotubes, alumina ceramic diaphragms, and other advanced materials.

Size Chart of ZTA Ceramic Grinding Beads

Please provide drawing and parameter requirements for customization.

Zirconia Toughened Alumina Grinding Ball
Item No.	Diameter (mm)	Purity (AL203+Zr02)
CS-ZTA-Q1001	0.5-1	26%+70%
CS-ZTA-Q1002	1-1.5	26%+70%
CS-ZTA-Q1003	2	26%+70%
CS-ZTA-Q1004	2.5	26%+70%
CS-ZTA-Q1005	3	26%+70%
CS-ZTA-Q1006	3.5	26%+70%
CS-ZTA-Q1007	4	26%+70%
CS-ZTA-Q1008	5.5	26%+70%
CS-ZTA-Q1009	6	26%+70%
CS-ZTA-Q1010	8	26%+70%
CS-ZTA-Q1011	9	26%+70%
CS-ZTA-Q1012	10	26%+70%
CS-ZTA-Q1013	13	26%+70%
CS-ZTA-Q1014	15	26%+70%
CS-ZTA-Q1015	20	26%+70%
CS-ZTA-Q1016	25	26%+70%
CS-ZTA-Q1017	30	26%+70%
