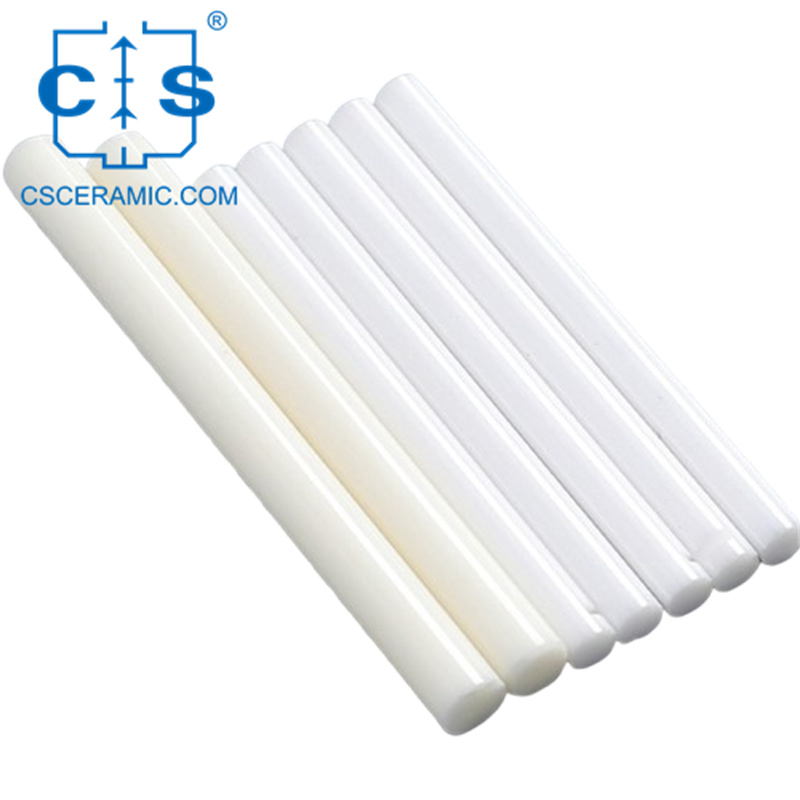

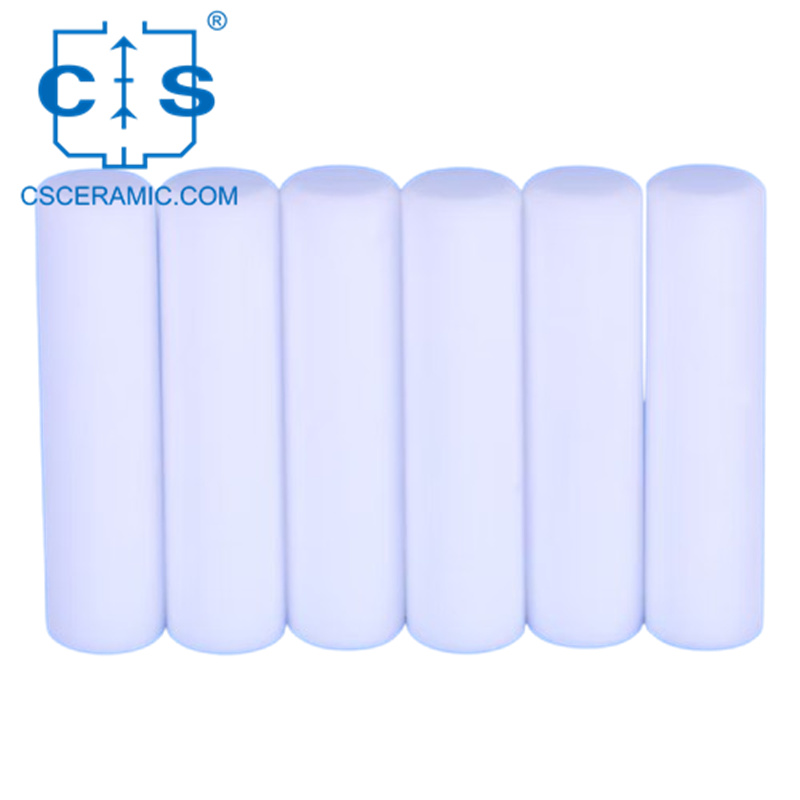

High-Temp Zirconia Toughened Alumina ZTA Ceramic Rod & Bar for Industrial Use

ZTA Rod offers high temp, acid/alkali resistance, chemical stability, hardness, wear resistance, and toughness, crucial in mech eng, high-temp, chemical, electrical, metallurgy industries.

item no. :
CS-ZR-B001
Material : ZTA

contact now catalogue

description

Properties of ZTA Ceramic Rod

Exceptional Wear & Toughness:
- The ZTA ceramic rod boasts high hardness and wear resistance, coupled with remarkable toughness, ensuring a long service life and resilience against mechanical impacts.
Corrosion Resistance:
- With excellent chemical stability, the rod is resistant to a wide range of acids and alkalis, making it suitable for extreme environments where performance stability is crucial.
High Temperature Durability:
- The rod's heat resistance and thermal shock resistance allow it to perform consistently at high temperatures for extended periods.
Superb Insulation:
- Featuring high resistivity, the ZTA ceramic rod offers superior insulation properties, ideal for applications requiring electrical isolation.

Applications of ZTA Ceramic Rod

High-Temp Refractory Industry:
- Utilized in furnace roller rods, inlet rods, heat treatment furnace rollers, and heating rods due to its heat resistance, thermal shock resistance, oxidation resistance, and wear resistance.
Mechanical Engineering Industry:
- Made into hydraulic rods, shafts, plungers, and grinding rods, ZTA ceramic rods offer higher mechanical strength, wear resistance, and reduced weight compared to metal parts.
Chemical & Metallurgical Industries:
- Known for its corrosion resistance and chemical inertia, the rod is perfect for chemical equipment like stirrers, supports, and drainage parts, as well as catalyst carriers in chemical processes.
Electronic & Electrical Industry:
- With its electrical insulation, high breakdown voltage, and mechanical strength, ZTA ceramic rods are ideal for producing reliable and long-lasting insulation parts in electronic and electrical equipment.

Size Chart of ZTA Ceramic Rod

Please provide drawing and parameter requirements for customization.

Zirconia Toughened Alumina Rod
Item No.	Diameter (mm)	Length (mm)
CS-ZR-B001	1	15-1000
CS-ZR-B002	2	15-1000
CS-ZR-B003	3	15-1000
CS-ZR-B004	4	15-1000
CS-ZR-B005	5	15-1000
CS-ZR-B006	6	15-1000
CS-ZR-B007	7	15-1000
CS-ZR-B008	8	15-1000
CS-ZR-B009	9	15-1000
CS-ZR-B010	10	15-1000
CS-ZR-B011	11	15-1500
CS-ZR-B012	12	15-1500
CS-ZR-B013	13	15-1500
CS-ZR-B014	14	15-1500
CS-ZR-B015	15	15-1500
CS-ZR-B016	16	15-1500
CS-ZR-B017	17	15-1500
CS-ZR-B018	18	15-1500
CS-ZR-B019	19	15-1500
CS-ZR-B020	20	15-1500
CS-ZR-B021	21	15-1500
CS-ZR-B022	22	15-1500
CS-ZR-B023	23	15-1500
CS-ZR-B024	24	15-1500
CS-ZR-B025	25	15-1500
CS-ZR-B026	26	15-1500
CS-ZR-B027	27	15-1500
CS-ZR-B028	28	15-1500
CS-ZR-B029	29	15-1500
CS-ZR-B030	30	15-1500
CS-ZR-B031	31	15-1500
CS-ZR-B032	32	15-1500
CS-ZR-B033	33	15-1500
CS-ZR-B034	34	15-1500
CS-ZR-B035	35	15-1500
