laboratory analysis ceramic consumables
Manufacturer of Industrial Precision Ceramics
Ceramic Crucible Leco 528-018. Manufacturer of carbon sulfur crucible & cs crucible for LECO CS230. Eltra 90148/90149/90150/90152 Horiba 905.200.380.001 Bruker: JW-N009250423 Alpha AR3818 SerCon: SC0893 LECO528-018/002-301/002-302 Elementar 905.200.380.001 AN. Used for Carbon sulfur Analyzer Elemental Analysis.
Read More
Alumina tubes both sides open are commonly used in various industrial and laboratory applications. They are ideal for use in processes such as heating, cooling, and drying, and can offer superior thermal and electrical insulation.
Read More
Alumina Ceramic Substrate Sheet is an ideal choice for applications requiring high performance, reliability, and durability. It is available in various sizes and thicknesses to suit different applications.
Read More
Achieve unparalleled levels of purity with our Bone Ash Cupels. Engineered to remove impurities and unwanted elements, these cupels enable you to extract the true essence of your precious metals.
Read More
Alumina pipes advantage:high heat resistance,good cold-resistance heat-resistance,resistance to acid and alkali corrosion. Long service life. OEM is accpected.
Read More
Alumina crucible and boat are wildly used in laboratory and industrial analysis as well as metal and nonmetal material sample melting.Available in various sizes and shapes.
Read More
Circle alumina ceramic rods have a higher strength to weight ratio than other ceramics, and can be used to manufacture lighter and stronger parts.Available in a variety of sizes and shapes.
Read More
952018.906 100μl Platinum/Pt Crucibles(Sample Pans) for TA Instruments TA Q500/Q50/TGA 2950/2050. Manufacturer for TA crucibles and DSC sample pans. TA Instruments tga analyser good alternative sample cups.
Read More
Zirconia ceramic are used in shaft, plunger, sealing structure, auto-mobile industry, oil drilling equipment, insulation parts in electrical equipment, ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity. We can supply the products according to customer's drawings, samples and performance requi1
Read More
1. Do different size of Platinum/PT Crucibles as you need.2. Send us design drawing or specification of Platinum/PT Crucibles . Manufacturer of Platinum/PT Crucibles .CS CERMAIC CO.,LTD
Read More
item no. :
CS-YHG-YC001Material : ZrO2
High Temperature Resistance & Anti-Poisoning Ability: The zirconia oxygen sensor heater boasts exceptional high temperature resistance and robust anti-poisoning capabilities, ensuring reliable operation even in harsh environments.
Integrated Heater for Fast Ignition & Response: Equipped with an integrated heater, it consumes low heating power while delivering swift ignition and quick response times, optimizing sensor performance and efficiency.
Excellent Aging Resistance & Longevity: With outstanding aging resistance, the zirconia oxygen sensor heater guarantees a long service life, providing consistent and dependable performance over extended periods.
Key Engine Control Component: The zirconia oxygen sensor serves as the vital component of engine control systems, responsible for detecting oxygen concentration in exhaust gases. By feeding these test results to the ECU (Engine Control Unit), it precisely controls fuel injection amounts, maintaining the engine's theoretical air-fuel ratio.
Emission Control & Environmental Benefits: This advanced sensor helps regulate automobile exhaust emissions, significantly reducing environmental pollution. It contributes to cleaner air and a healthier planet by ensuring optimal engine combustion.
Wide Applications in Internal Combustion Engines: Zirconia oxygen sensors are widely used in various internal combustion engines, including those in the automotive and construction machinery industries. They monitor oxygen content in engine exhaust, enabling the control of pollutant emissions and enhancing fuel combustion efficiency. Their role is indispensable in these industries, driving forward advancements in engine performance and sustainability.
| Please provide the requirements listed below at least, if the customized design needed: |
| 1. Sensor types, including air-fuel ratio type oxygen sensor, switch type oxygen sensor and five-wire wide range type planar oxygen sensor |
| 2. Specification request |
| 3. Drawings |

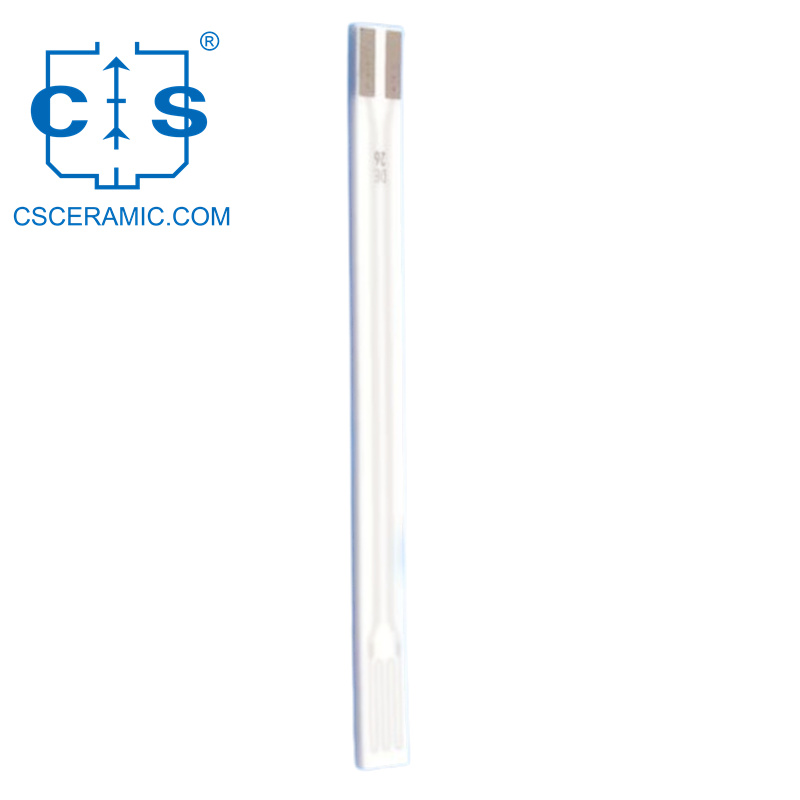

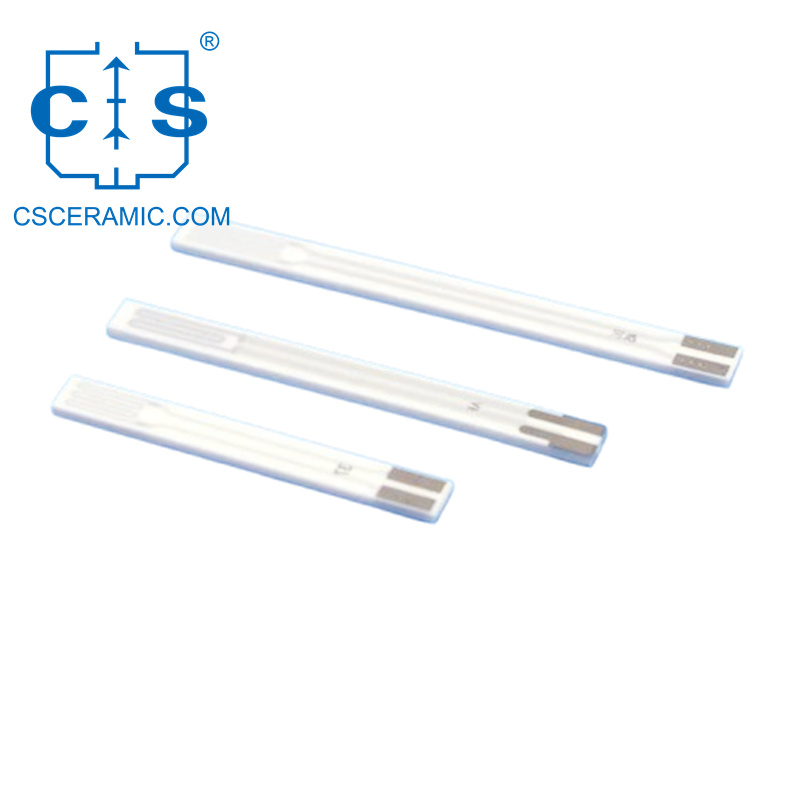

Zirconia Oxygen Sensor Chip For Switch Type Oxygen Sensor
Item NO.
Length (mm) ±0.5
Width (mm) ±0.1
Thickness (mm) ±0.1
Resistance (Ω)
under temp. of 24℃±3℃
Note
CS-YHG-YC001
58.6
4.4
1.28
9.0±1.5
/
CS-YHG-YC002
54.0
4.4
1.28
9.0±1.5
/
CS-YHG-YC003
54.0
4.4
1.28
6.0±1.2
/
CS-YHG-YC004
54.0
4.4
1.28
13.0±1.5
/
CS-YHG-YC005
36.5
4.2
1.28
9.0±1.5
/
CS-YHG-YC006
36.0
4.4
1.28
3.0±0.5
/
CS-YHG-YC007
30.0
2.5
0.90
/
2 wires
CS-YHG-YC008
27.0
2.5
0.90
17.0±3.0
/
Zirconia Oxygen Sensor Chip For Air-fuel Ratio Type Oxygen Sensor
Item NO.
Length (mm) ±0.5
Width (mm) ±0.1
Thickness (mm) ±0.1
Resistance (Ω)
under temp. of 24℃±3℃
Note
CS-YHG-YC009
46.2
4.0
1.45
2.1±0.3
@A/F=4%,lp=0.3mA
CS-YHG-YC010
46.2
4.0
1.45
2.1±0.3
@A/F=4%,lp=0.5mA
Zirconia Oxygen Sensor Chip For Five-wire Wide Range Type Planar Oxygen Sensor
Item NO.
Length (mm) ±0.5
Width (mm) ±0.1
Thickness (mm) ±0.1
Resistance (Ω)
under temp. of 24℃±3℃
Note
CS-YHG-YC011
52.5
4.2
1.30
2.8±0.4
@air,lp=4.0mA
CS-YHG-YC012
52.5
4.2
1.30
2.8±0.4
@air,lp=6.0mA
CS-YHG-YC013
59.6
4.4
1.30
3.1±0.4
@air,lp=4.0mA
CS-YHG-YC014
59.6
4.4
1.30
3.0±0.4
@air,lp=4.0mA
CS-YHG-YC015
55.0
4.25
1.30
3.0±0.4
@air,lp=4.0mA
CS-YHG-YC016
55
4.25
1.30
3.0±0.4
@air,lp=4.0mA
CS-YHG-YC017
52.0
4.2
1.30
3.4±0.5
@air,lp=6.0mA
Premium Zirconia Sleeve Corrosion Resistant for Chemical & Industrial Use
Designed for a wide range of industrial applications, zirconia ceramic sleeves are ideal for use in chemical engineering, metallurgy, pharmaceutical production, and power generation.
High Precision Zirconia Ceramic Mold Positioning Block
The Premium Zirconia Ceramic Locating Block is primarily utilized in mold positioning, enabling the swift and accurate establishment of positional relationships between workpieces, thereby ensuring precise and efficient mold processing.
High Strength Zirconia Ceramic Grinding Mortar & Pestle
Zirconia Mortars & Pestles are renowned for their exceptional strength, outstanding resistance to high temperatures, and unparalleled wear resistance. Thanks to these qualities, zirconia mortars and pestles are perfect for grinding solid substances into fine powders or crushing them into smaller particles.
High-Temp Y&Ca-Stabilized Zirconia Ceramic Refractory Plates
zirconia ceramic refractory plates come in two distinct series: yttrium-stabilized and calcium-stabilized, tailored to meet the specific needs of your application. Both series exhibit exceptional high-temperature resistance, withstanding temperatures up to 1600°C, and offering unmatched thermal shock resistance.
High-Temp Zirconia Ceramic Rollers for Flattening & Crushing
zirconia ceramic rollers are also suitable for roll crushers in the fragmentation of ore. Their robust construction and superior performance make them a trusted choice for industries that demand precision, durability, and reliability.
High-Temp Zirconia Ceramic Piston for Piston Pumps & Industrial Use
Primarily used in piston pumps, Zirconia ceramic pistons regulate the pressure and flow rate of fluids through efficient reciprocating motion.
ZrO2 Ceramic Shaft For Motors & Pumps
Featuring high hardness, wear resistance, mechanical strength, heat tolerance, corrosion resistance, and electrical insulation, ZrO2 ceramic shaft is ideal for motors, pumps, precision tools, medical devices, and chemical equipment.
ZrO2 Ceramic Fiber Ferrule - High Precision For Optical Connectors
ZrO2 ceramic fiber ferrule is a precision-crafted optical component made from hard, dimensionally accurate zirconia ceramic. It's primarily used in optical fiber connectors, attenuators, and stubs for precise positioning and connection in communication networks.
