item no. :
CS-YHG-CX001Material : ZrO2

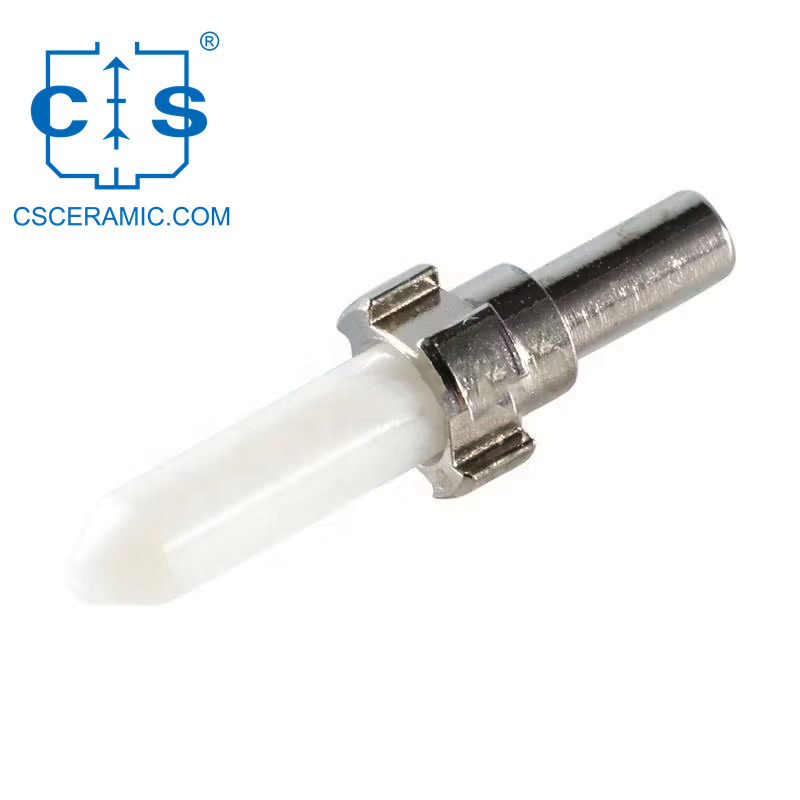

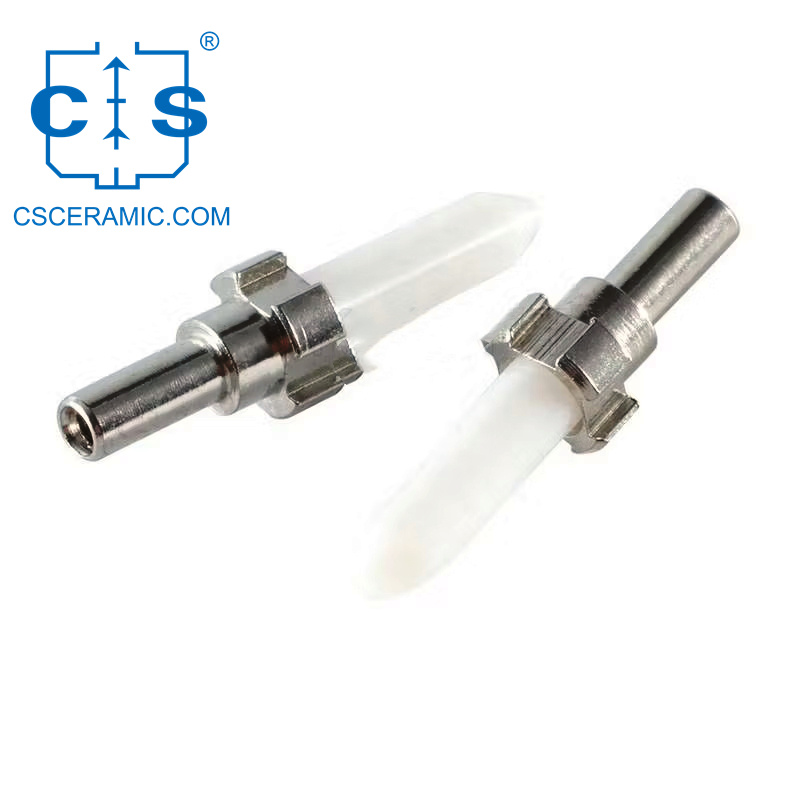

Ideal for optical fiber connectors, our ZrO2 ceramic fiber ferrule plays a crucial role in optical communication, medical treatment, industrial automation, and optical detection applications. Its high hardness, good wear resistance, precision machining, and chemical corrosion resistance make it a reliable choice for critical optical connections.
| Provide drawing and specification requirements, available dimension range as following: |
| 1. External Diameter: 0.5-3.2mm |
| 2. Inner Diameter: 0.06-0.8mm |
| 3. Length: 2.5-33mm |
SC Single Mode
Item No.
Outer Diameter
(mm)
Inner Diameter
(mm)
Concentricity
(mm)
Flexural Strength
(mpa)
Hardness
(HV)
CS-YHG-CX001
2.499±0.0005
d（0.1250）+0.001
≤0.001
≥1200
≥1200
CS-YHG-CX001-1
2.499±0.0005
d（0.1255）+0.001
≤0.001
≥1200
≥1200
CS-YHG-CX001-2
2.499±0.0005
d（0.1260）+0.001
≤0.001
≥1200
≥1200
SC Single Mode, with Flange
Item No.
Outer Diameter
(mm)
Inner Diameter
(mm)
Concentricity
(mm)
Flexural Strength
(mpa)
Hardness
(HV)
CS-YHG-CX002
2.499±0.0005
d（0.1250）+0.001
≤0.001
≥1200
≥1200
CS-YHG-CX002-1
2.499±0.0005
d（0.1255）+0.001
≤0.001
≥1200
≥1200
CS-YHG-CX002-2
2.499±0.0005
d（0.1260）+0.001
≤0.001
≥1200
≥1200
APC/SC
Item No.
Outer Diameter
(mm)
Inner Diameter
(mm)
Concentricity
(mm)
Flexural Strength
(mpa)
Hardness
(HV)
CS-YHG-CX003
2.499±0.0005
d（0.1250）+0.001
≤0.0008
≥1200
≥1200
CS-YHG-CX003-1
2.499±0.0005
d（0.1255）+0.001
≤0.0008
≥1200
≥1200
CS-YHG-CX003-2
2.499±0.0005
d（0.1260）+0.001
≤0.0008
≥1200
≥1200
APC/SC, with Flange
Item No.
Outer Diameter
(mm)
Inner Diameter
(mm)
Concentricity
(mm)
Flexural Strength
(mpa)
Hardness
(HV)
CS-YHG-CX004
2.499±0.0005
d（0.1250）+0.001
≤0.0008
≥1200
≥1200
CS-YHG-CX004-1
2.499±0.0005
d（0.1255）+0.001
≤0.0008
≥1200
≥1200
CS-YHG-CX004-2
2.499±0.0005
d（0.1260）+0.001
≤0.0008
≥1200
≥1200
APC/SC, Stepped
Item No.
Outer Diameter
(mm)
Inner Diameter
(mm)
Concentricity
(mm)
Flexural Strength
(mpa)
Hardness
(HV)
CS-YHG-CX005
2.499±0.0005
d（0.1250）+0.001
≤0.0008
≥1200
≥1200
CS-YHG-CX005-1
2.499±0.0005
d（0.1255）+0.001
≤0.0008
≥1200
≥1200
CS-YHG-CX005-2
2.499±0.0005
d（0.1260）+0.001
≤0.0008
≥1200
≥1200
APC/SC, with Flange, Stepped
Item No.
Outer Diameter
(mm)
Inner Diameter
(mm)
Concentricity
(mm)
Flexural Strength
(mpa)
Hardness
(HV)
CS-YHG-CX006
2.499±0.0005
d（0.1250）+0.001
≤0.0008
≥1200
≥1200
CS-YHG-CX006-1
2.499±0.0005
d（0.1255）+0.001
≤0.0008
≥1200
≥1200
CS-YHG-CX006-2
2.499±0.0005
d（0.1260）+0.001
≤0.0008
≥1200
≥1200
LC Single Mode
Item No.
Outer Diameter
(mm)
Inner Diameter
(mm)
Concentricity
(mm)
Flexural Strength
(mpa)
Hardness
(HV)
CS-YHG-CX007
1.249±0.0005
d（0.1250）+0.001
≤0.001
≥1200
≥1200
CS-YHG-CX007-1
1.249±0.0005
d（0.1255）+0.001
≤0.001
≥1200
≥1200
CS-YHG-CX007-2
1.249±0.0005
d（0.1260）+0.001
≤0.001
≥1200
≥1200
LC Single Mode, with Flange
Item No.
Outer Diameter
(mm)
Inner Diameter
(mm)
Concentricity
(mm)
Flexural Strength
(mpa)
Hardness
(HV)
CS-YHG-CX008
1.249±0.0005
d（0.1250）+0.001
≤0.001
≥1200
≥1200
CS-YHG-CX008-1
1.249±0.0005
d（0.1255）+0.001
≤0.001
≥1200
≥1200
CS-YHG-CX008-2
1.249±0.0005
d（0.1260）+0.001
≤0.001
≥1200
≥1200
MU Single Mode, with Flange
Item No.
Outer Diameter
(mm)
Inner Diameter
(mm)
Concentricity
(mm)
Flexural Strength
(mpa)
Hardness
(HV)
CS-YHG-CX009
2.499±0.0005
d（0.1250）+0.001
≤0.001
≥1200
≥1200
CS-YHG-CX009-1
2.499±0.0005
d（0.1255）+0.001
≤0.001
≥1200
≥1200
CS-YHG-CX009-2
2.499±0.0005
d（0.1260）+0.001
≤0.001
≥1200
≥1200
ST, with Flange
Item No.
Outer Diameter
(mm)
Inner Diameter
(mm)
Concentricity
(mm)
Flexural Strength
(mpa)
Hardness
(HV)
CS-YHG-CX010
2.499±0.0005
d（0.1250）+0.001
≤0.001
≥1200
≥1200
CS-YHG-CX010-1
2.499±0.0005
d（0.1255）+0.001
≤0.001
≥1200
≥1200
CS-YHG-CX010-2
2.499±0.0005
d（0.1260）+0.001
≤0.001
≥1200
≥1200
LC (Non-Standard)
Item No.
Outer Diameter
(mm)
Inner Diameter
(mm)
Concentricity
(mm)
Flexural Strength
(mpa)
Hardness
(HV)
CS-YHG-CX011
0.5-3.2
0.06-0.8
2.5-33
≥1200
≥1200
SC (Non-Standard)
Item No.
Outer Diameter
(mm)
Inner Diameter
(mm)
Concentricity
(mm)
Flexural Strength
(mpa)
Hardness
(HV)
CS-YHG-CX012
0.5-3.2
0.06-0.8
2.5-33
≥1200
≥1200
Premium Zirconia Sleeve Corrosion Resistant for Chemical & Industrial Use
Designed for a wide range of industrial applications, zirconia ceramic sleeves are ideal for use in chemical engineering, metallurgy, pharmaceutical production, and power generation.
High Precision Zirconia Ceramic Mold Positioning Block
The Premium Zirconia Ceramic Locating Block is primarily utilized in mold positioning, enabling the swift and accurate establishment of positional relationships between workpieces, thereby ensuring precise and efficient mold processing.
High Strength Zirconia Ceramic Grinding Mortar & Pestle
Zirconia Mortars & Pestles are renowned for their exceptional strength, outstanding resistance to high temperatures, and unparalleled wear resistance. Thanks to these qualities, zirconia mortars and pestles are perfect for grinding solid substances into fine powders or crushing them into smaller particles.
High-Temp Y&Ca-Stabilized Zirconia Ceramic Refractory Plates
zirconia ceramic refractory plates come in two distinct series: yttrium-stabilized and calcium-stabilized, tailored to meet the specific needs of your application. Both series exhibit exceptional high-temperature resistance, withstanding temperatures up to 1600°C, and offering unmatched thermal shock resistance.
High-Temp Zirconia Ceramic Rollers for Flattening & Crushing
zirconia ceramic rollers are also suitable for roll crushers in the fragmentation of ore. Their robust construction and superior performance make them a trusted choice for industries that demand precision, durability, and reliability.
High-Temp Zirconia Ceramic Piston for Piston Pumps & Industrial Use
Primarily used in piston pumps, Zirconia ceramic pistons regulate the pressure and flow rate of fluids through efficient reciprocating motion.
ZrO2 Ceramic Shaft For Motors & Pumps
Featuring high hardness, wear resistance, mechanical strength, heat tolerance, corrosion resistance, and electrical insulation, ZrO2 ceramic shaft is ideal for motors, pumps, precision tools, medical devices, and chemical equipment.
ZrO2 Zirconia Bearing Balls High-Speed Ceramic Non-Magnetic Ball
ZrO2 zirconia ceramic bearing balls offer high strength, toughness, temperature resistance, corrosion resistance, and non-magnetic properties. Their self-lubricating capabilities make them ideal for environments requiring no lubricating medium pollution.
