laboratory analysis ceramic consumables
Manufacturer of Industrial Precision Ceramics
Ceramic Crucible Leco 528-018. Manufacturer of carbon sulfur crucible & cs crucible for LECO CS230. Eltra 90148/90149/90150/90152 Horiba 905.200.380.001 Bruker: JW-N009250423 Alpha AR3818 SerCon: SC0893 LECO528-018/002-301/002-302 Elementar 905.200.380.001 AN. Used for Carbon sulfur Analyzer Elemental Analysis.
Read More
Alumina tubes both sides open are commonly used in various industrial and laboratory applications. They are ideal for use in processes such as heating, cooling, and drying, and can offer superior thermal and electrical insulation.
Read More
Alumina Ceramic Substrate Sheet is an ideal choice for applications requiring high performance, reliability, and durability. It is available in various sizes and thicknesses to suit different applications.
Read More
Achieve unparalleled levels of purity with our Bone Ash Cupels. Engineered to remove impurities and unwanted elements, these cupels enable you to extract the true essence of your precious metals.
Read More
Alumina pipes advantage:high heat resistance,good cold-resistance heat-resistance,resistance to acid and alkali corrosion. Long service life. OEM is accpected.
Read More
Alumina crucible and boat are wildly used in laboratory and industrial analysis as well as metal and nonmetal material sample melting.Available in various sizes and shapes.
Read More
Circle alumina ceramic rods have a higher strength to weight ratio than other ceramics, and can be used to manufacture lighter and stronger parts.Available in a variety of sizes and shapes.
Read More
952018.906 100μl Platinum/Pt Crucibles(Sample Pans) for TA Instruments TA Q500/Q50/TGA 2950/2050. Manufacturer for TA crucibles and DSC sample pans. TA Instruments tga analyser good alternative sample cups.
Read More
Zirconia ceramic are used in shaft, plunger, sealing structure, auto-mobile industry, oil drilling equipment, insulation parts in electrical equipment, ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity. We can supply the products according to customer's drawings, samples and performance requi1
Read More
1. Do different size of Platinum/PT Crucibles as you need.2. Send us design drawing or specification of Platinum/PT Crucibles . Manufacturer of Platinum/PT Crucibles .CS CERMAIC CO.,LTD
Read More

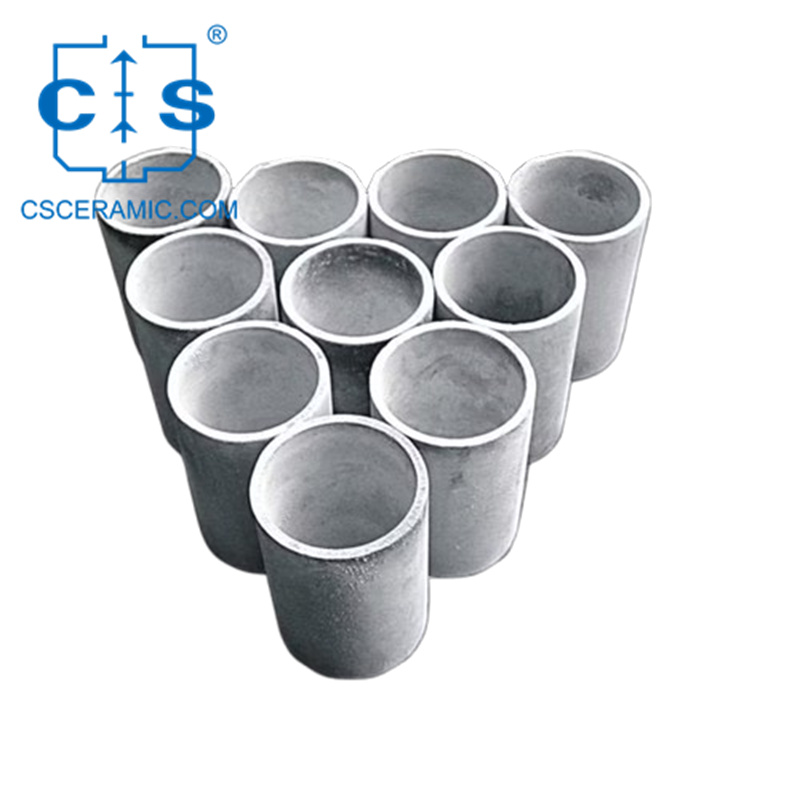

item no. :
CS-NBSIC-G1001Material : NBSiC
Durability & Reusability: The NBSiC crucible boasts high hardness and exceptional wear resistance, ensuring long-term use without wear failure. Its durability allows for multiple reuses, reducing costs and waste.
High-Temperature Resistance: With a maximum use temperature exceeding 1650°C, the NBSiC crucible excels in high-temperature applications. Its thermal shock resistance and oxidation resistance are top-notch, maintaining strength and hardness even at extreme temperatures.
Corrosion Resistance & Cleanliness: The crucible's excellent corrosion resistance prevents metal infiltration and contamination of heating materials. This ensures purity in chemical analysis experiments and industrial material testing and analysis.
The NBSiC crucible is widely utilized in high-temperature chemical analysis experiments and industrial material testing and analysis. It is ideal for calcining and melting various materials, including metals, ceramics, glass, and more, making it a versatile and reliable tool for scientific and industrial applications.
Please provide drawing and parameter requirements for customization.
| NBSIC Crucible Cylinderical | ||||
| Item No. |
Outer Dia. (mm) |
Inner Dia. (mm) |
Height (mm) |
Wall Thickness (mm) |
| CS-NBSIC-G1001 | 32.5 | 26.5 | 29 | 3 |
| CS-NBSIC-G1002 | 38 | 29 | 32.5 | 4.5 |
| CS-NBSIC-G1003 | 38 | 29.8 | 45 | 4.1 |
| CS-NBSIC-G1004 | 41 | 33 | 71.5 | 4 |
| CS-NBSIC-G1005 | 42 | 33 | 73 | 4.5 |
| CS-NBSIC-G1006 | 45 | 38 | 18 | 3.5 |
| CS-NBSIC-G1007 | 47.5 | 38 | 74 | 4.75 |
| CS-NBSIC-G1008 | 51 | 41 | 122 | 5 |
| CS-NBSIC-G1009 | 60 | 51 | 100 | 4.5 |
| CS-NBSIC-G1010 | 65 | 55 | 64.5 | 5 |
| CS-NBSIC-G1011 | 71 | 61 | 111 | 5 |
| CS-NBSIC-G1012 | 72.5 | 62.5 | 113 | 5 |
| CS-NBSIC-G1013 | 73 | 62.5 | 125.5 | 5.25 |
| CS-NBSIC-G1014 | 80 | 58 | 91 | 11 |
| CS-NBSIC-G1015 | 93 | 83 | 103 | 5 |
| CS-NBSIC-G1016 | 100 | 92 | 132 | 4 |
| CS-NBSIC-G1017 | 104 | 90 | 182 | 7 |
| CS-NBSIC-G1018 | 380 | 344 | 255 | 18 |
| NBSIC Crucible Square | ||||
| Item No. |
Length (mm) |
Width (mm) |
Height (mm) |
Wall Thickness (mm) |
| CS-NBSIC-G1019 | 70 | 70 | 25 | 4 |
| CS-NBSIC-G1020 | 100 | 100 | 30 | 4.5 |
| CS-NBSIC-G1021 | 100 | 30 | 25 | 3 |
| CS-NBSIC-G1022 | 160 | 160 | 72 | 4.5 |
| CS-NBSIC-G1023 | 175 | 175 | 50 | 5 |
| CS-NBSIC-G1024 | 180 | 70 | 35 | 5 |
| CS-NBSIC-G1025 | 190 | 80 | 40 | 5.5 |
| CS-NBSIC-G1026 | 200 | 35 | 8 | 4.75 |
| CS-NBSIC-G1027 | 265 | 175 | 20 | 5.2 |
| CS-NBSIC-G1028 | 490 | 255 | 50 | 6 |
Corrosion Resistant NBSIC Riser Tube for Casting Machine
The nitride-bonded silicon carbide riser tube, made of SiC & Si powder, sintered in N2, offers thermal shock & corrosion resistance, high strength, airtightness, ideal for low-pressure casting, automating aluminum molding.
Nitride Bonded SiC NBSIC Beam for Ceramic Kilns Up to 1500°C Resistance
The nitride-bonded silicon carbide beam is widely used in ceramic sintering kilns for its high temp resistance (up to 1500°C), good thermal conductivity, strong oxidation resistance, long life, high strength, optimizing space & boosting kiln capacity.
High Temp NBSIC Refractory Plate for Kiln Use
The nitride-bonded silicon carbide refractory plate is widely used in ceramic kilns, featuring good thermal conductivity, strong oxidation resistance up to 1500℃, long lifespan, reducing plate thickness & enhancing kiln efficiency.
High-Temp Zirconia Ceramic Bolts & Screws Premium Fasteners
Through meticulous shaping and rigorous high-temperature sintering processes, Zirconia bolts and screws are engineered to deliver exceptional mechanical strength, hardness, and wear resistance. Their high-temperature endurance and corrosion resistance make them stand out in the most demanding environments.
Aluminum Pans and Lids 901670.901/901684.901 for TA Instruments TA Instruments T Zero low mass Q20/Q200/Q2000/Q25(Sample Cups)
Liquid sample test for T Zero Q20/Q200/Q25 .901670.901/901684.901 TA Tzero Aluminum Sample Pans and lids for TA Instruments .Manufacturer for TA dsc analyzer crucibles and DSC sample pans .TA Instruments good alternative sample cups . TA 901683.901/901684.901
Graphite Crucible 760-414 /769-994
LECO 769-761760-414/769-994 Graphite Crucible. Manufacturer of LECO Alpha Graphite Crucible.
85μl Zirconia crucible with lid equivalent to Netzsch GB397053 /GB397052
Manufacturer for Netzsch crucibles and sample cups. Netzsch Instruments good alternative DSC sample pans.
Alumina lids equivalent to GB445175 for 0.2/0.3ml crucible NGB810411, GB445172 pierced, ø 0.5 mm hole for Netzsch(Cover)
ø 0.5 mm hole GB445175 Netzsch Alumina crucibles lids for Netzsch DSC 404 F1/F3 Pegasus, STA 449 F1/F3/F5 Jupiter® TDA DSC and TGA measurements. Manufacturer for Netzsch crucibles and sample cups. Netzsch Instruments good alternative DSC sample pans.
