item no. :

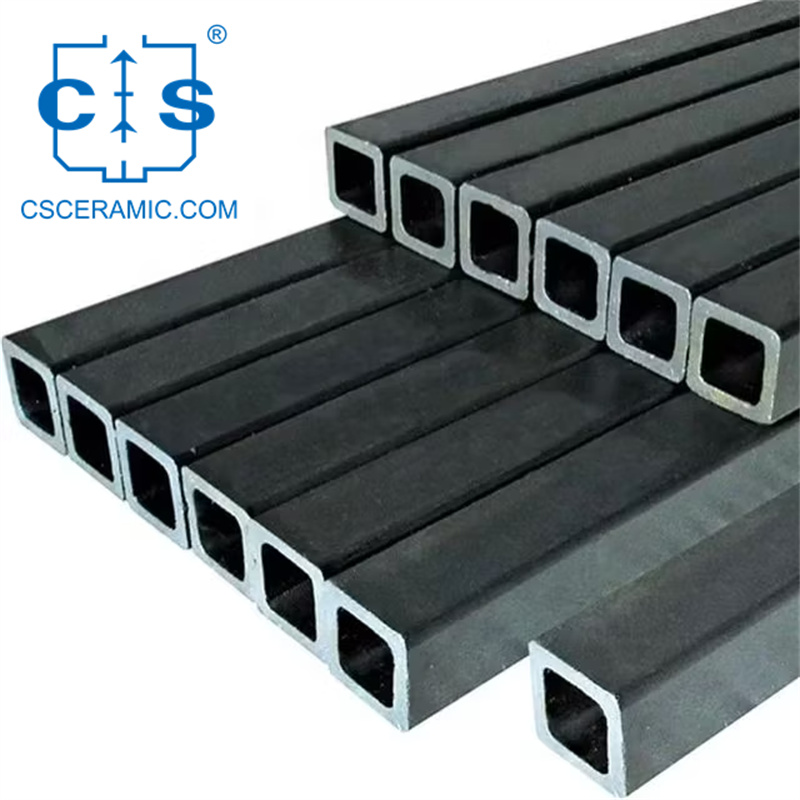

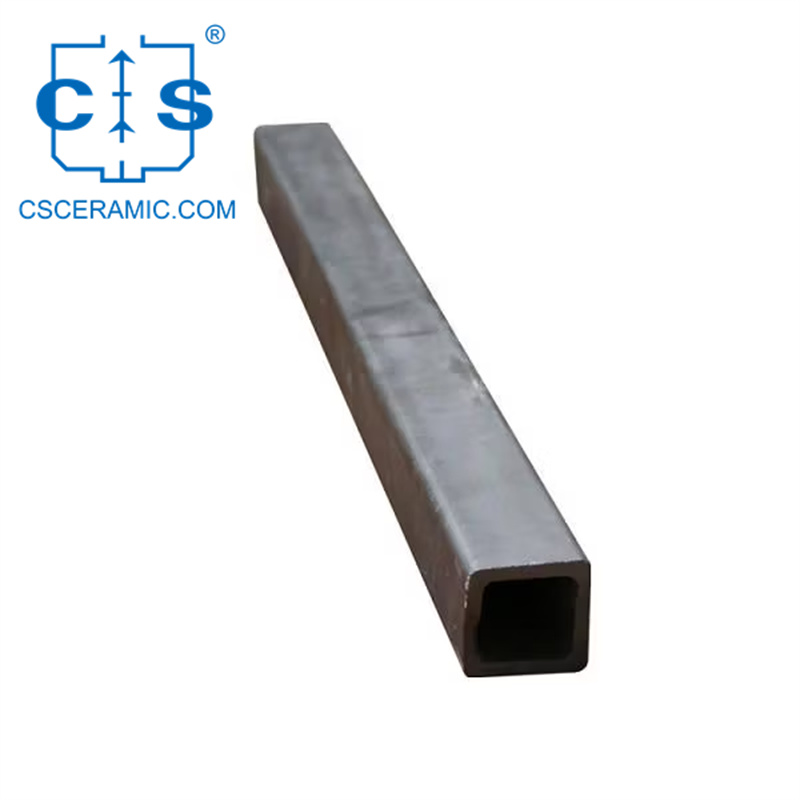

CS-NBSIC-FL001Material : NBSiC
High-Temperature Resistance: The NBSiC beam excels in high-temperature applications, with a maximum use temperature of up to 1500°C. Its robust oxidation and thermal shock resistance make it well-suited for ceramic sintering environments, ensuring reliability and durability.
Enhanced Structural Strength: Boasting high compressive and bending strength, the NBSiC beam allows for reduced dimensions, thereby optimizing space utilization and enhancing the production capacity of kilns. This leads to improved efficiency and cost-effectiveness in ceramic sintering processes.
Dimensional Stability & Cleanliness: With a small thermal expansion coefficient and stable structure, the NBSiC beam ensures minimal deformation during use. It also produces no slag or contamination to the sintered ceramics, preserving the purity and quality of the final products.
The NBSiC beam serves as a critical bearing structure in various types of ceramic sintering kilns, including tunnel kilns, shuttle kilns, roller kilns, and push plate kilns. Its function is to support the kiln's structure and carry the ceramics that need to be sintered, ensuring smooth and efficient operation of the sintering process.
Please provide drawing and parameter requirements for customization.
| NBSIC Beam | ||||
| Item No. |
Cross-sectional Height (mm) |
Cross-sectional Width (mm) |
Wall Thickness (mm) |
Length (mm) |
| CS-NBSIC-FL001 | 20 | 20 | 4 | 50-4500mm |
| CS-NBSIC-FL002 | 20 | 20 | 5 | 50-4500mm |
| CS-NBSIC-FL003 | 20 | 30 | 4 | 50-4500mm |
| CS-NBSIC-FL004 | 20 | 30 | 5 | 50-4500mm |
| CS-NBSIC-FL005 | 20 | 40 | 5 | 50-4500mm |
| CS-NBSIC-FL006 | 25 | 30 | 5 | 50-4500mm |
| CS-NBSIC-FL007 | 30 | 30 | 4 | 50-4500mm |
| CS-NBSIC-FL008 | 30 | 30 | 5 | 50-4500mm |
| CS-NBSIC-FL009 | 30 | 40 | 4 | 50-4500mm |
| CS-NBSIC-FL010 | 30 | 40 | 5 | 50-4500mm |
| CS-NBSIC-FL011 | 30 | 40 | 6 | 50-4500mm |
| CS-NBSIC-FL012 | 30 | 50 | 4 | 50-4500mm |
| CS-NBSIC-FL013 | 30 | 50 | 5 | 50-4500mm |
| CS-NBSIC-FL014 | 30 | 50 | 6 | 50-4500mm |
| CS-NBSIC-FL015 | 30 | 60 | 5 | 50-4500mm |
| CS-NBSIC-FL016 | 30 | 60 | 6 | 50-4500mm |
| CS-NBSIC-FL017 | 45 | 50 | 4 | 50-4500mm |
| CS-NBSIC-FL018 | 45 | 50 | 5 | 50-4500mm |
| CS-NBSIC-FL019 | 45 | 50 | 6 | 50-4500mm |
| CS-NBSIC-FL020 | 40 | 40 | 5 | 50-4500mm |
| CS-NBSIC-FL021 | 40 | 40 | 6 | 50-4500mm |
| CS-NBSIC-FL022 | 40 | 40 | 7 | 50-4500mm |
| CS-NBSIC-FL023 | 40 | 50 | 6 | 50-4500mm |
| CS-NBSIC-FL024 | 40 | 50 | 7 | 50-4500mm |
| CS-NBSIC-FL025 | 40 | 60 | 5 | 50-4500mm |
| CS-NBSIC-FL026 | 40 | 60 | 6 | 50-4500mm |
| CS-NBSIC-FL027 | 40 | 60 | 7 | 50-4500mm |
| CS-NBSIC-FL028 | 45 | 45 | 5 | 50-4500mm |
| CS-NBSIC-FL029 | 45 | 45 | 6 | 50-4500mm |
| CS-NBSIC-FL030 | 45 | 45 | 7 | 50-4500mm |
| CS-NBSIC-FL031 | 50 | 50 | 5 | 50-4500mm |
| CS-NBSIC-FL032 | 50 | 50 | 6 | 50-4500mm |
| CS-NBSIC-FL033 | 50 | 50 | 7 | 50-4500mm |
| CS-NBSIC-FL034 | 50 | 60 | 6 | 50-4500mm |
| CS-NBSIC-FL035 | 50 | 60 | 7 | 50-4500mm |
| CS-NBSIC-FL036 | 50 | 60 | 8 | 50-4500mm |
| CS-NBSIC-FL037 | 50 | 70 | 6 | 50-4500mm |
| CS-NBSIC-FL038 | 50 | 70 | 7 | 50-4500mm |
| CS-NBSIC-FL039 | 50 | 70 | 8 | 50-4500mm |
| CS-NBSIC-FL040 | 60 | 60 | 6 | 50-4500mm |
| CS-NBSIC-FL041 | 60 | 60 | 7 | 50-4500mm |
| CS-NBSIC-FL042 | 60 | 60 | 8 | 50-4500mm |
| CS-NBSIC-FL043 | 60 | 60 | 9 | 50-4500mm |
| CS-NBSIC-FL044 | 60 | 70 | 7 | 50-4500mm |
| CS-NBSIC-FL045 | 60 | 70 | 8 | 50-4500mm |
| CS-NBSIC-FL046 | 60 | 70 | 9 | 50-4500mm |
| CS-NBSIC-FL047 | 60 | 80 | 7 | 50-4500mm |
| CS-NBSIC-FL048 | 60 | 80 | 8 | 50-4500mm |
| CS-NBSIC-FL049 | 60 | 80 | 9 | 50-4500mm |
| CS-NBSIC-FL050 | 60 | 90 | 7 | 50-4500mm |
| CS-NBSIC-FL051 | 60 | 90 | 8 | 50-4500mm |
| CS-NBSIC-FL052 | 60 | 90 | 9 | 50-4500mm |
| CS-NBSIC-FL053 | 70 | 70 | 7 | 50-4500mm |
| CS-NBSIC-FL054 | 70 | 70 | 8 | 50-4500mm |
| CS-NBSIC-FL055 | 70 | 70 | 9 | 50-4500mm |
