item no. :

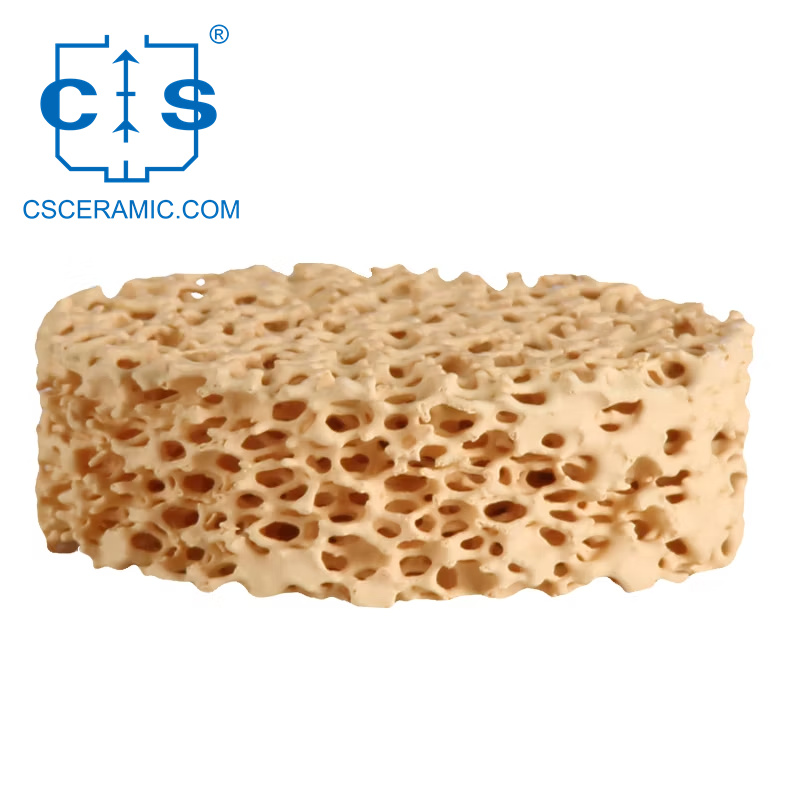

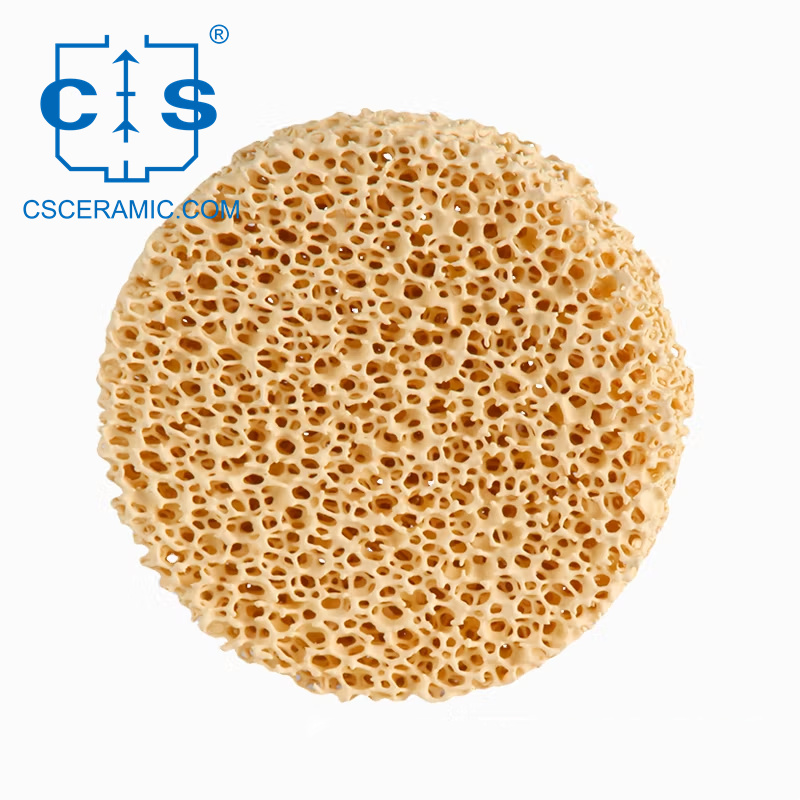

CS-MO-PM1001Material : MgO
High-Temperature Resistance: Magnesia ceramic foam filters are renowned for their exceptional resistance to high temperatures, making them ideal for applications in harsh thermal conditions.
Corrosion Resistance: These filters are also highly resistant to corrosion, ensuring they maintain their integrity and performance in environments exposed to aggressive chemicals.
High Porosity & Large Filtration Surface Area: With high porosity and a large internal surface area, magnesia ceramic foam filters offer superior filtration capacity, allowing for efficient removal of particles and contaminants.
Low Flow Resistance: The filters' design minimizes flow resistance, ensuring smooth and efficient fluid flow without compromising filtration efficiency.
Excellent Filtration Effect: Combining these attributes, magnesia ceramic foam filters provide an excellent filtration effect, making them essential for a wide range of industrial applications requiring high-performance filtration solutions.
Impurity Removal in Magnesium Smelting: Magnesia ceramic foam filters are widely used in the smelting industry of magnesium and its alloys. They effectively filter out impurities in molten metal, such as oxides, inclusions, and gases, ensuring a cleaner and higher-quality metal stream.
Reduction of Casting Defects: By removing impurities, these filters help to significantly reduce casting defects such as porosity, inclusions, and cracks. This leads to stronger, more reliable castings with improved mechanical properties.
Enhancement of Casting Quality: The use of magnesia ceramic foam filters not only improves the appearance of castings but also enhances their overall quality. Cleaner molten metal results in smoother surfaces, more uniform microstructures, and better dimensional accuracy.
Industry-Standard for High-Quality Castings: In the magnesium alloy casting industry, magnesia ceramic foam filters are often considered a standard for achieving high-quality castings. Their ability to improve casting quality and reduce defects makes them an indispensable tool for metal casters.
Please provide drawing and parameter requirements for customization.
| Magnesia Ceramic Foam Filter Round | ||||
| Item NO. | Diameter(mm) | Thickness(mm) | Pore Density PPI | Porosity(%) |
| CS-MO-PM1001 | 40 | 11 | 10/20/30/40/50/60 | 80~90 |
| CS-MO-PM1002 | 40 | 22 | 10/20/30/40/50/60 | 80~90 |
| CS-MO-PM1003 | 50 | 15 | 10/20/30/40/50/60 | 80~90 |
| CS-MO-PM1004 | 50 | 22 | 10/20/30/40/50/60 | 80~90 |
| CS-MO-PM1005 | 75 | 22 | 10/20/30/40/50/60 | 80~90 |
| CS-MO-PM1006 | 80 | 22 | 10/20/30/40/50/60 | 80~90 |
| CS-MO-PM1007 | 90 | 22 | 10/20/30/40/50/60 | 80~90 |
| CS-MO-PM1008 | 100 | 22 | 10/20/30/40/50/60 | 80~90 |
| CS-MO-PM1009 | 120 | 22 | 10/20/30/40/50/60 | 80~90 |
| CS-MO-PM1010 | 150 | 25 | 10/20/30/40/50/60 | 80~90 |
| Magnesia Ceramic Foam Filter Round Square | |||||
| Item NO. | Length(mm) | Width(mm) | Thickness(mm) | Pore Density PPI | Porosity(%) |
| CS-MO-PM2001 | 40 | 40 | 10 | 10/20/30/40/50/60 | 80~90 |
| CS-MO-PM2002 | 40 | 40 | 22 | 10/20/30/40/50/60 | 80~90 |
| CS-MO-PM2003 | 50 | 50 | 10 | 10/20/30/40/50/60 | 80~90 |
| CS-MO-PM2004 | 50 | 50 | 22 | 10/20/30/40/50/60 | 80~90 |
| CS-MO-PM2005 | 50 | 50 | 30 | 10/20/30/40/50/60 | 80~90 |
| CS-MO-PM2006 | 75 | 50 | 22 | 10/20/30/40/50/60 | 80~90 |
| CS-MO-PM2007 | 75 | 75 | 22 | 10/20/30/40/50/60 | 80~90 |
| CS-MO-PM2008 | 100 | 100 | 22 | 10/20/30/40/50/60 | 80~90 |
| CS-MO-PM2009 | 150 | 100 | 22 | 10/20/30/40/50/60 | 80~90 |
| CS-MO-PM2010 | 150 | 150 | 22 | 10/20/30/40/50/60 | 80~90 |
| CS-MO-PM2011 | 40-300 | 40-300 | 10-50 | 10/20/30/40/50/60 | 80~90 |
High-Temp MgO Crucible for Non-Ferrous & Precious Metals
The Magnesium Oxide Crucible is ideal for smelting non-ferrous metals, precious metals like platinum, rhodium, iridium, and high-purity radioactive metals such as uranium and thorium alloys.
Electrical Insulation MgO Ceramic Heating Rods for Electric Heaters
Magnesium oxide ceramic rods are used as heating tubes in electric heaters to extend metal water tank and pipe service life.
High-Temp MgO Ceramic Tube for Heaters & Cables
MgO tube, resistant to high temp with good electrical insulation, serves as electric heater, thermocouple protection, & cable insulation tubes.
High Temp MgO Ceramic Board for Electronics & Industry
MgO plates, resistant to high temp up to 2000°C, are used as insulation boards, heat-resistant gaskets, and burning boards in electronics & industry.
Tzero Sample Press and Die Sets Kit Standard equivalent to TA 901600.901
TA 901600.901 Includes a Tzero Press and die sets for Tzero Pans/Tzero Lids and Tzero Low Mass Pans/Tzero Lids, Tzero Pans/Tzero Hermetic Lids, Standard /Aluminum Pans/Lids and Standard Hermetic Pans/Lids.
80 uL Aluminum Pans equivalent to TA 957363.901 for TA Q5000 IR
TA 957363.901 Aluminum Sample Pans for TA Instruments .Manufacturer for TA dsc analyzer crucibles and DSC sample pans .TA Instruments good alternative sample cups .
Quartz Crucible Solid Bottom equivilent to TA 820055.002 for use with TA TGAHP150
TA 820055.002 for TGA HP150 Quartz crucibles sample cups for TA Instruments. Manufacturer for TA crucibles and DSC sample pans. TA Instruments good alternative sample pans.
LECO Consumables Nickel Basket Low Oxygen 502-345
LECO Consumables Nickel Basket suitable for LECO oxygen, nitrogen, hydrogen analyzer.
