item no. :
CS-MO-G1001Material : MgO
High-Temperature Resistance: Magnesium oxide ceramic tubes are renowned for their exceptional resistance to high temperatures, capable of enduring temperatures exceeding 2000℃. This makes them an ideal choice for applications in harsh and extreme thermal conditions.
Corrosion Resistance: With outstanding corrosion resistance, MgO ceramic tubes can withstand direct contact with a wide range of chemical substances without degradation. This durability ensures they maintain their integrity and performance in corrosive environments.
Excellent Electrical Insulation: Magnesium oxide ceramic tubes also boast very good electrical insulation properties, making them suitable for electrical applications where insulation is crucial. This feature enhances safety and reliability in various industrial and electronic settings.
Electric Heater Protection Tube: Magnesium oxide ceramic tubes are highly valued as protection tubes in electric heaters. Their exceptional heat resistance and electrical insulation properties make them ideal for safeguarding heater components from extreme temperatures and ensuring efficient heat transfer.
Thermocouple Protection Tube: These tubes are also widely used as thermocouple protection tubes. By providing a durable and heat-resistant barrier, MgO ceramic tubes protect thermocouples from harsh environmental conditions, ensuring accurate temperature measurements and延长设备使用寿命.
Cable Insulation Tube: Magnesium oxide ceramic tubes serve as reliable cable insulation tubes, offering superior electrical insulation and mechanical strength. This makes them essential for applications requiring high-voltage insulation and protection against environmental factors such as moisture and chemicals.
Please provide drawing and parameter requirements for customization.

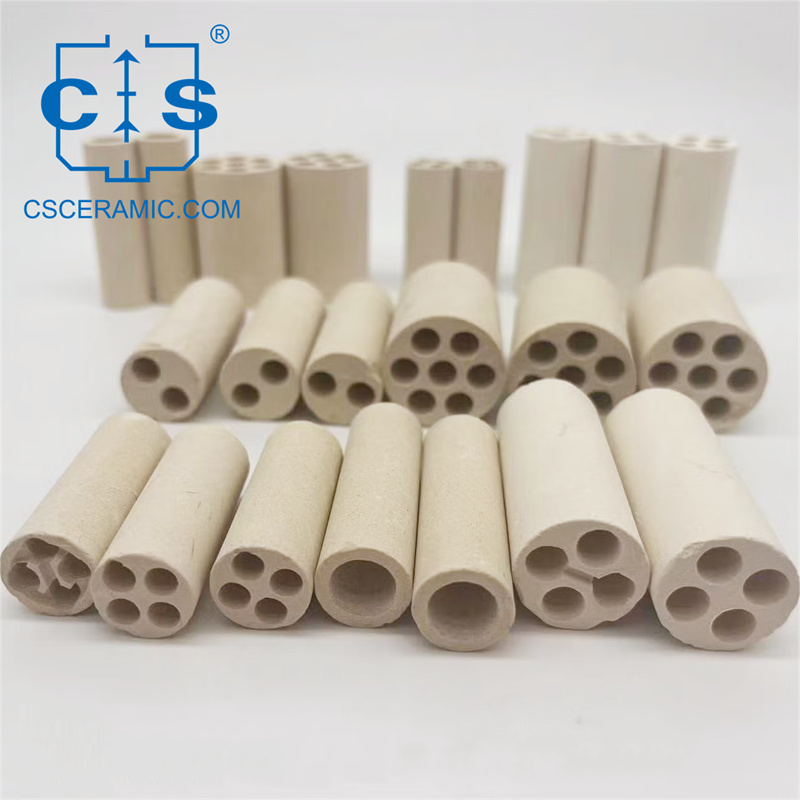

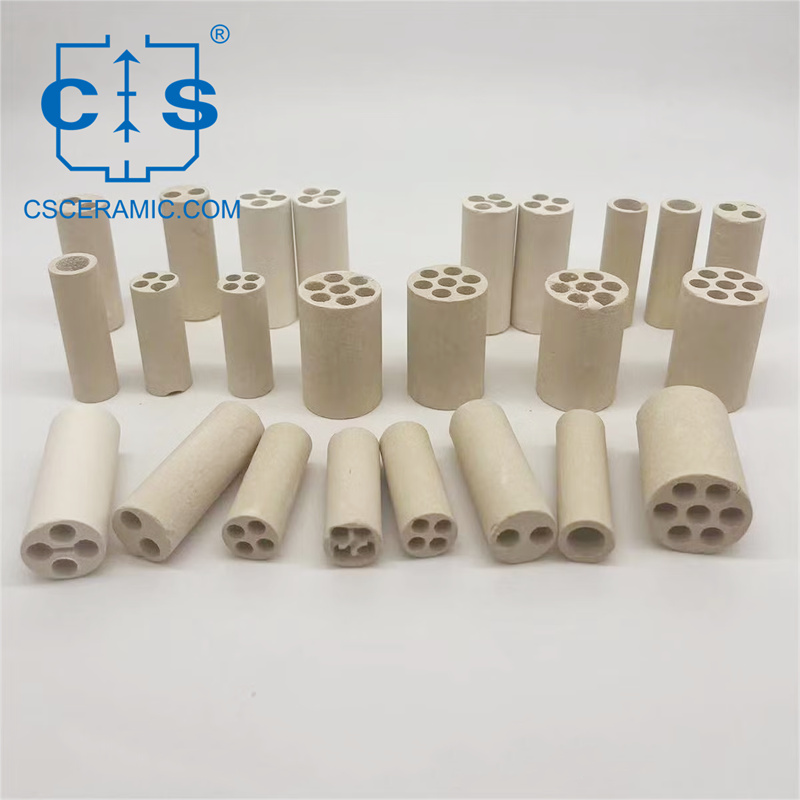

| Magnesia Ceramic Tube Single-bore | ||||
| Item NO. |
Outer Diameter (mm) |
Inner Diameter (mm) |
Length (mm) |
Purity (%) |
| CS-MO-G1001 | 1.2 | 0.5 | 30 | 99.5 |
| CS-MO-G1002 | 3.7 | 2.0 | 30 | 99.5 |
| CS-MO-G1003 | 3.9 | 1.3 | 30 | 99.5 |
| CS-MO-G1004 | 5.0 | 2.0 | 30 | 99.5 |
| CS-MO-G1005 | 5.0 | 3.0 | 30 | 99.5 |
| CS-MO-G1006 | 5.5 | 2.0 | 30 | 99.5 |
| CS-MO-G1007 | 6.4 | 3.4 | 40 | 99.5 |
| CS-MO-G1008 | 7.0 | 4.0 | 40 | 99.5 |
| CS-MO-G1009 | 8.0 | 5.0 | 40 | 99.5 |
| CS-MO-G1010 | 9.0 | 6.0 | 40 | 99.5 |
| CS-MO-G1011 | 13.0 | 9.0 | 50 | 99.5 |
| CS-MO-G1012 | 14.0 | 8.0 | 50 | 99.5 |
| CS-MO-G1013 | 15.0 | 10.0 | 50 | 99.5 |
| CS-MO-G1014 | 16.0 | 9.0 | 50 | 99.5 |
| CS-MO-G1015 | 18.0 | 10.0 | 50 | 99.5 |
| CS-MO-G1016 | 19.0 | 19.0 | 50 | 99.5 |
| CS-MO-G1017 | 1.2-25 | 0.5-20 | 30-500 | 99.5 |
| Magnesia Ceramic Tube Double-bores | ||||
| Item NO. |
Outer Diameter (mm) |
Inner Diameter (mm) |
Length (mm) |
Purity (%) |
| CS-MO-G2001 | 5.3 | 1.6 | 25 | 99.5 |
| CS-MO-G2002 | 7.0 | 2.4 | 40 | 99.5 |
| CS-MO-G2003 | 9.0 | 3.0 | 50 | 99.5 |
| CS-MO-G2004 | 11.0 | 3.5 | 40 | 99.5 |
| CS-MO-G2005 | 15.0 | 4.5 | 40 | 99.5 |
| CS-MO-G2006 | 18.0 | 5.0 | 50 | 99.5 |
| CS-MO-G2007 | 13.0 | 4.5 | 40 | 99.5 |
| CS-MO-G2008 | 20.0 | 6.0 | 50 | 99.5 |
| Magnesia Ceramic Tube Three-bores | ||||
| Item NO. |
Outer Diameter (mm) |
Inner Diameter (mm) |
Length (mm) |
Purity (%) |
| CS-MO-G3001 | 6.6 | 1.3 | 50 | 99.5 |
| CS-MO-G3002 | 6.6 | 1.3 | 100 | 99.5 |
| CS-MO-G3003 | 9 | 3 | 50 | 99.5 |
| CS-MO-G3004 | 13.6 | 2.3 | 50 | 99.5 |
| CS-MO-G3005 | 18 | 5 | 100 | 99.5 |
| CS-MO-G3006 | 20 | 6 | 100 | 99.5 |
| Magnesia Ceramic Tube Four-bores | ||||
| Item NO. |
Outer Diameter (mm) |
Inner Diameter (mm) |
Length (mm) |
Purity (%) |
| CS-MO-G4001 | 4.0 | 1.1 | 20 | 99.5 |
| CS-MO-G4002 | 5.0 | 1.3 | 25 | 99.5 |
| CS-MO-G4003 | 6.0 | 1.4 | 25 | 99.5 |
| CS-MO-G4004 | 7.0 | 1.6 | 25 | 99.5 |
| CS-MO-G4005 | 8.0 | 1.8 | 25 | 99.5 |
| CS-MO-G4006 | 9.0 | 2.5 | 25 | 99.5 |
| CS-MO-G4007 | 11.0 | 3.0 | 40 | 99.5 |
| CS-MO-G4008 | 12.0 | 3.5 | 40 | 99.5 |
| CS-MO-G4009 | 13.0 | 4.0 | 40 | 99.5 |
| CS-MO-G4010 | 15.0 | 4.0 | 50 | 99.5 |
| CS-MO-G4011 | 16.0 | 4.0 | 40 | 99.5 |
| CS-MO-G4012 | 17.0 | 5.0 | 50 | 99.5 |
| CS-MO-G4013 | 18.0 | 5.0 | 50 | 99.5 |
| CS-MO-G4014 | 19.0 | 5.5 | 50 | 99.5 |
| CS-MO-G4015 | 20.0 | 5.5 | 50 | 99.5 |
| CS-MO-G4016 | 22.0 | 6.0 | 50 | 99.5 |
| CS-MO-G4017 | 24.0 | 6.8 | 50 | 99.5 |
| CS-MO-G4018 | 25.0 | 7.0 | 50 | 99.5 |
| CS-MO-G4019 | 26.0 | 7.0 | 50 | 99.5 |
| CS-MO-G4020 | 28.0 | 8.0 | 50 | 99.5 |
| Magnesia Ceramic Tube Seven-bores | ||||
| Item NO. |
Outer Diameter (mm) |
Inner Diameter (mm) |
Length (mm) |
Purity (%) |
| CS-MO-G7001 | 9 | 1.8 | 25 | 99.5 |
| CS-MO-G7002 | 11 | 2.5 | 25 | 99.5 |
| CS-MO-G7003 | 13 | 3 | 30 | 99.5 |
| CS-MO-G7004 | 15 | 3.5 | 35 | 99.5 |
| CS-MO-G7005 | 17 | 4 | 40 | 99.5 |
| CS-MO-G7006 | 18 | 4.5 | 40 | 99.5 |
| CS-MO-G7007 | 20 | 4.5 | 50 | 99.5 |
| CS-MO-G7008 | 22 | 5 | 50 | 99.5 |
| CS-MO-G7009 | 25 | 5 | 50 | 99.5 |
| CS-MO-G7010 | 27 | 7 | 50 | 99.5 |
| CS-MO-G7011 | 29 | 7 | 50 | 99.5 |
| CS-MO-G7012 | 33 | 7 | 50 | 99.5 |
| CS-MO-G7013 | 48 | 8.3 | 50 | 99.5 |
