Read Moreitem no. :
CS-THG-B9001Color :
BlackPort :
Shenzhen China, Express deliverylead date :
1-7 daysMaterial : Silicon Carbide
Purity : 90%
Shape : Fish
Original Country : Made in China

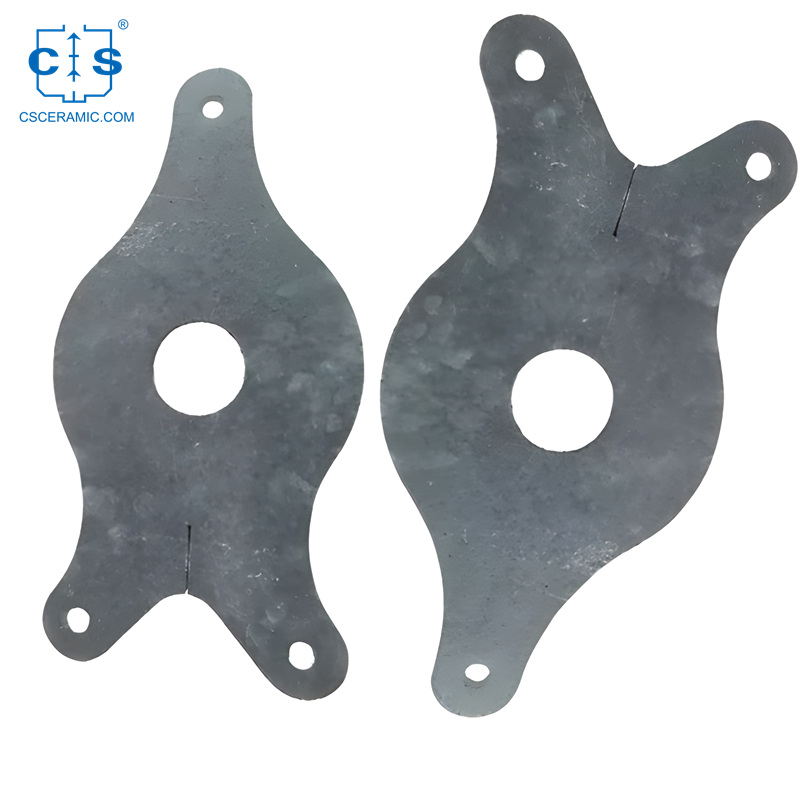

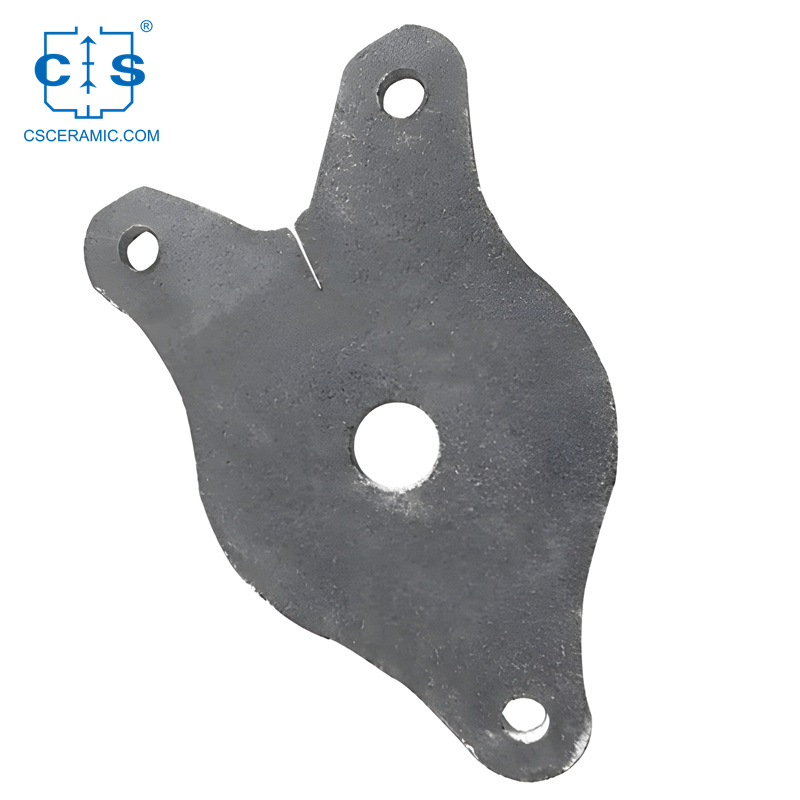

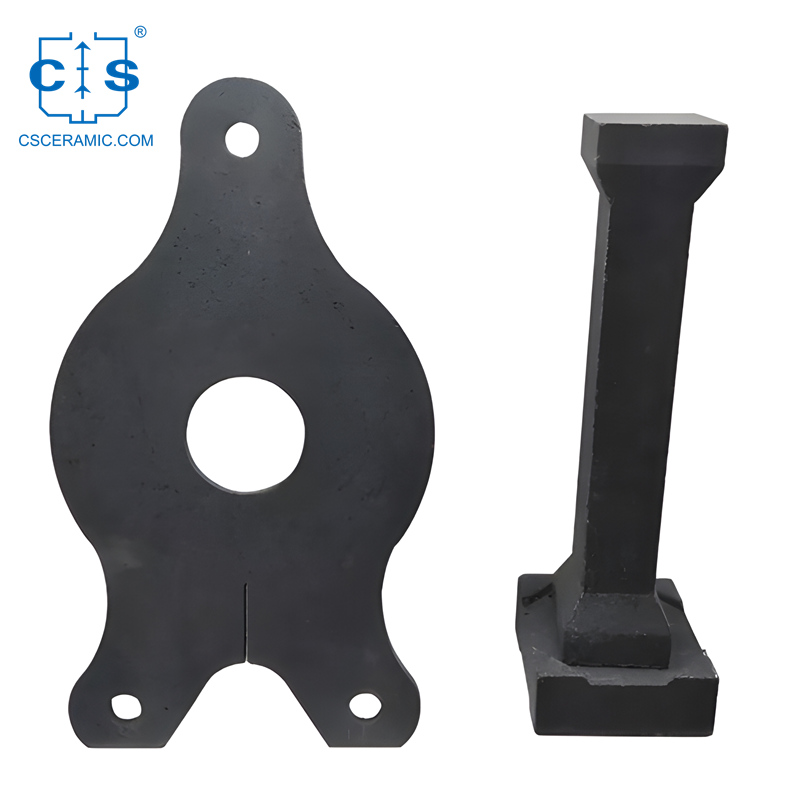

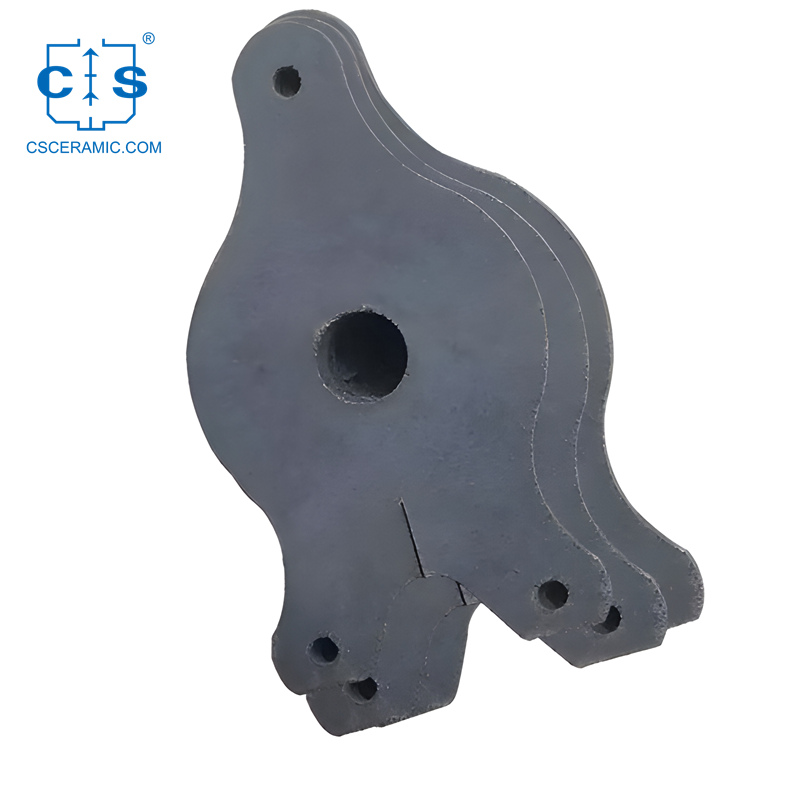

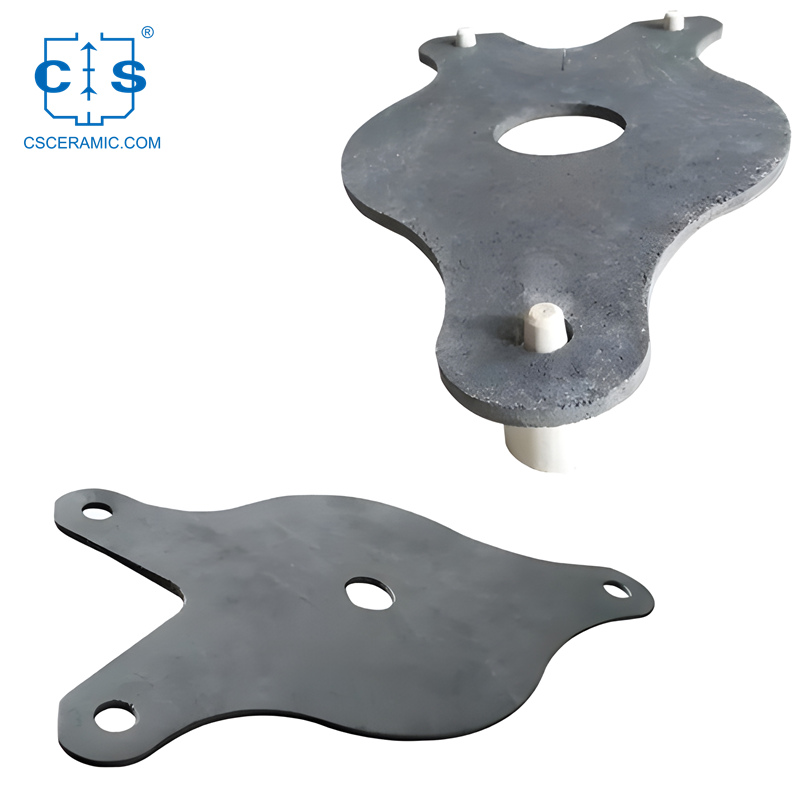

Silicon Carbide Fish Shaped Kiln Shelves Ceramic Regualr SiC plates for Firing Dishware
Silicon Carbide Kiln Shelves Features
1.Superior wear resistance, impact resistance and corrosion resistance;
2.Excellent flatness and temperature resistance up to 1380℃;
3.Excellent oxidation resistance;
4.Good dimensional control of complex shapes;
5.Easy installation;
6.Longer service life ( about 5 times more than that of alumina ceramic and 6 times more than that of polyurethane).
Silicon Carbide Fish Shaped Plates Specification
ITEM | Fish Plate Size Range | A(mm) | B(mm) | C(mm) | D(mm) |
CS-THG-B9001 | 6 | 165 | 285 | 240 | φ18 |
CS-THG-B9002 | 6 | 170 | 288 | 238 | φ18 |
CS-THG-B9003 | 8 | 187 | 363 | 313 | φ18 |
CS-THG-B9004 | 8 | 195 | 350 | 295 | φ18 |
CS-THG-B9005 | 8.5 | 200 | 370 | 320 | φ18 |
CS-THG-B9006 | 9.5 | 220 | 390 | 335 | φ18 |
CS-THG-B9007 | 10 | 218 | 406 | 350 | φ18 |
CS-THG-B9008 | 10 | 230 | 405 | 350 | φ18 |
CS-THG-B9009 | 10.5 | 230 | 410 | 355 | φ18 |
CS-THG-B9010 | 11 | 230 | 410 | 360 | φ18 |
CS-THG-B9011 | 12 | 230 | 430 | 400 | φ18 |
CS-THG-B9012 | 15 | 300 | 460 | 470 | φ18 |
Thickness 7-10mm can be Customized
Items | SIC brick and tube | SIC burner | SIC path brick | SIC and infrared painting |
SIC % ≥ | 60-85 | 90 | 85 | 42 |
Fe2O3 ≤ | 1 | 1 | 1 | / |
Bulk Density g/cm3 ≥ | 2.3 | 2.5 | 2.5 | |
Compressive Strength Mpa ≥ | 30 | 50 | 60-80 | |
Refractoriness °C ≥ | 1500 | 1500 | 1500 | |
Permanent Linear Change % ≤ | 1400°C 3h 0.5 | 1500°C 3h 0.5 | 1400°C 3h 0.5 | |
Heat Shock Stability 850°C Water Cooling Times | ≥10 | ≥10 | ≥10 | |
0.2Mpa refractoriness under load °C | 1400 | 1500 | 1400 | 1000°C air cooling ≥30 |
Silicon carbide ceramic fish shaped plate is applied in daily ceramic Kiln,sanitary ceramic kiln,electronic ceramic kiln and other kilns.
1.When it can be used in daily ceramic,such as reinforce ceramics, white ceramic and high-class ceramics.
2.Through the burning of 1400°C,it can offer mild,bright and white enamel feeling.
3.When silicon carbide ceramic fish shaped plates can be used in high class washing basin high-class bowl and bowl urinal.
4.Through the burning of 1300°C, SiC plate kiln shelves provides high enamel and high abrasion resistance.It can keep gloss and quality for more than 10 years.
5.Silicon carbide ceramic fish shaped plates are used in electronic ceramic, emery wheel and magnetic material.
Please choose our silicon carbide ceramic fish plates and it can save your using cost,giving you high economic benefit.
2. The placement of sic refractory board should avoid plane stacking, and the upright arrangement method should be adopted.
3. The surface of sic refractory board is sprayed with alumina refractory coating, so it should be placed at the edge of the kiln before use.
4. In order to ensure that the sic refractory board is used for a long time without damage, the fired articles should be placed dry and then installed in the kiln.
5. glaze after the product, contact with the refractory board part of the glaze should be wiped clean.
6. When constructing the refractory board, the refractory pillar should be kept vertical and straight to ensure uniform and smooth stress.
7. The distance of the refractory board should be greater than 15-20mm.
8. The design of the firing curve should be in line with the normal operating conditions, and should not be rapid hot and cold.
9. cooling should be used to cool, avoid the use of cold air rapid cooling, and affect the refractory board.
10. carefully handle the kiln, avoid handling by hand in high temperature, and avoid collision.
SiC Kiln Shelves Fish Plates Packing & Shipping
Silicon Carbide fish plate test standard
1.The test standard for Si Carbide fish plates depends on the type of material and application of the fish plate.
2.Generally, the standard for examination the effectiveness of a angle shell would be supported on ASTM A 370 or ASTM A 617, which provide test methods for the determination of physical science properties of steel products.
3.Other standards such as ASTM A 681 and ASTM A 682 Crataegus oxycantha also be used to test the mechanical properties of a fish plate. 4.Additionally, the monetary standard for non-destructive testing of a angle plate would depend on the type of material and application.
5.ASTM E 23 is a standard for testing the insensibility of metallic materials, which tin be used to test the insensibility of a angle plate.
OEM Requirements
1. If there are drawings, please send drawings (CAD,PDF, hand sketch), etc.
2. Specify the size, quantity, thickness and other specifications.
3. Determine the processing technology (simple cutting, drilling, to map custom parts, grinding, milling saw cutting, etc.).
4. Pay according to the actual quotation.
Note: If the size requirements are particularly accurate, please explain to customer service. Because there are certain tolerances in normal process standards such as cutting, grinding and drilling, please explain in advance if there are precision requirements for irregular parts.
Why Choose Us
As a professional industrial ceramic supplier, we have a series of advantages that guarantee our market share in the international trade market.
1.Reliable quality control, complete specifications, support customization of non-standard products.
2.Professional and committed service team.
3.Multiple protection of packaging, secure and reliable.
4.Highly efficient delivery channel, safe and rest-assured.
FAQ
1.Q: What is the difference between silicon carbide kiln plates and other kiln plates?
A: Silicon carbide kiln plates are more durable and resistant to higher temperatures than other types of kiln plates. They also provide superior thermal shock resistance and are more chemically resistant than other kiln plates.
2. How is silicon carbide kiln plate made?
A:Silicon carbide kiln plate is made by heating a mixture of silicon carbide and other materials such as alumina and magnesia at high temperatures. The resulting material is then pressed into plates and cooled. The plates are then cut to the desired size and shape.
3. What are the benefits of using silicon carbide kiln plates?
A:Silicon carbide kiln plates are known for their high heat resistance, making them ideal for use in high temperature kilns. They are also highly durable and have a low thermal expansion rate, making them ideal for use in industrial applications.
Silicon carbide ceramics are known for their lightweight and high strength, allowing them to provide superior protection from bullets, shrapnel, and other ballistic threats.
