item no. :
CS-THG-BYX02Color :
BlackPort :
Any ports of Chinalead date :
5-7 daysMaterial : Silicon Carbide
Purity : 90%
Shape : Multiple
Original Country : Made in China

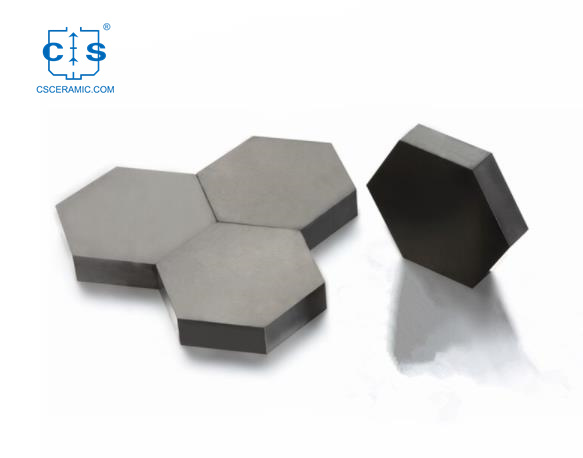

High Temperature SiC Ceramic Regular Hexagon Plate Length 20-400mm Thickness 6-25mm Purity 90% Customized
1. Silicon Carbide Plate has excellent thermal conductivity, high strength, and low thermal expansion coefficient.
2. It is corrosion-resistant and can resist heat up to 1600°C.
3. It is a very hard material, with a hardness of 9.5 on the Mohs scale.
4. It is highly resistant to abrasion and wear and can be used in applications with high-pressure and high-temperature.
5. It is used in a wide range of applications like semiconductor manufacturing, engine components, and aerospace components.
6. It has very low electrical conductivity, which makes it an ideal material for electrical insulation.
1. Wear Resistant Coatings: Silicon carbide plates are often used as a wear-resistant coating for automotive, industrial, and other machinery parts.
2. Aerospace Parts: The hardness and strength of silicon carbide plates make them ideal for use in aerospace parts, where they can withstand extreme temperatures and vibration.
3. Heat Exchangers: Due to its high thermal conductivity, silicon carbide plates are often used in heat exchangers to transfer heat more efficiently.
4. Semiconductor Devices: Silicon carbide plates are often used in semiconductor devices as a dielectric layer to reduce power loss.
5. Solar Panels: Silicon carbide plates are also used in some solar panels to increase the efficiency of energy conversion.
6. Refractory Material: Silicon carbide is often used as a refractory material, due to its high melting point and resistance to chemical corrosion.
SiC Plate's Physical Properties
Item | Unit | Data |
Chemical Composition Sic≥ | % | 90 |
Max Service Temp. | °C | 1550 |
Refractoriness≥ | SK | 39 |
2Kg/cm2 Refractoriness under load T2≥ | °C | 1750 |
Modulus of Rupture at room temp.≥ | Kg/cm2 | 500 |
Modulus of Rupture at 1400°C≥ | Kg/cm2 | 550 |
Compressive Strength≥ | Kg/cm2 | 1300 |
Thermal Expansion at 1000°C | % | 0.42-0.48 |
Apparent Porosity | % | 7-8 |
Bulk Density | g/cm3 | 2.70-2.75 |
Thermal Conductivity at 1000°C | Kcal/m.hr °C | 13.5-14.5 |
Name | Item No | Width(mm) | Thickness (mm) | Purity |

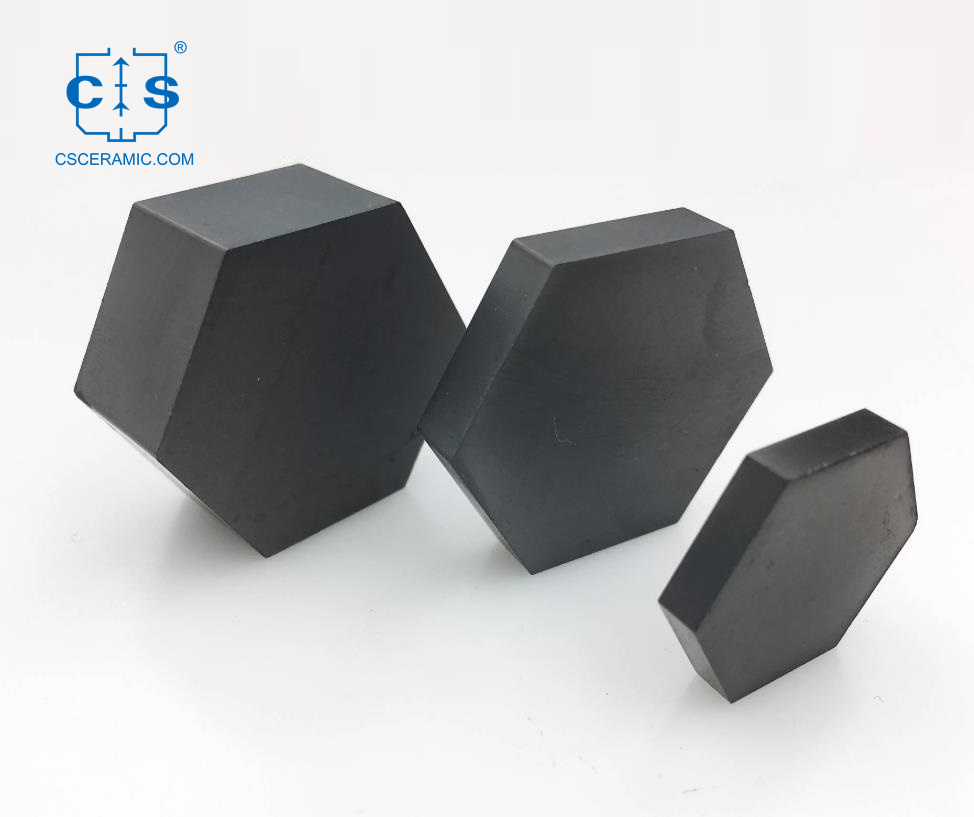

Hexagon plate | CS-THG-BYX01 | 20--400 | 6--25 | 90% |

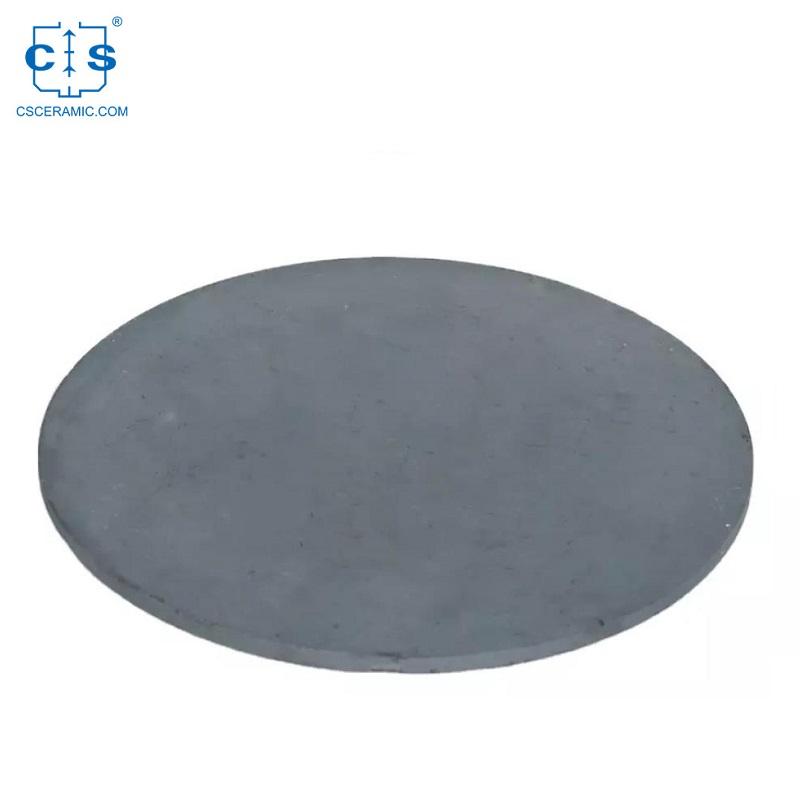

Round Plate |
CS-THG-BYX02 |
60-400 | 2-25 | 90% |
|
Note:Other specifications are available as your request. |

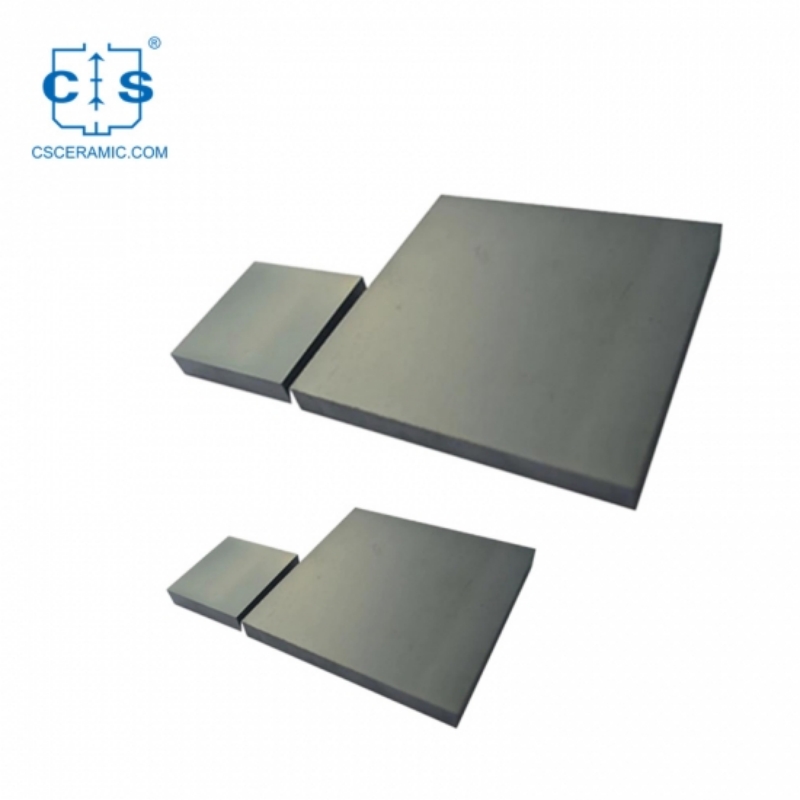

Square Plate |
Rectangle Plate |
|
||||||
Item No. |
Length
(mm)
|
Width (mm) |
Thickness (mm) |
Item No. |
Length
(mm)
|
Width (mm) |
Thickness (mm) |
Purity |
CS-THG-B001 |
300 |
300 |
3-8 |
CS-THG-B041 |
550 |
380 |
8-25 |
90% |
CS-THG-B002 |
300 |
350 |
3-8 |
CS-THG-B042 |
550 |
370 |
8-25 |
|
CS-THG-B003 |
400 |
450 |
3-8 |
CS-THG-B043 |
550 |
300 |
8-25 |
|
CS-THG-B004 |
420 |
450 |
3-8 |
CS-THG-B044 |
530 |
530 |
8-25 |
|
CS-THG-B005 |
480 |
480 |
3-8 |
CS-THG-B045 |
530 |
330 |
8-25 |
|
CS-THG-B006 |
480 |
500 |
3-8 |
CS-THG-B046 |
520 |
500 |
8-25 |
|
CS-THG-B007 |
370 |
550 |
3-8 |
CS-THG-B047 |
520 |
490 |
8-25 |
|
CS-THG-B008 |
370 |
600 |
3-8 |
CS-THG-B048 |
500 |
480 |
8-25 |
|
CS-THG-B009 |
500 |
600 |
3-8 |
CS-THG-B049 |
500 |
450 |
8-25 |
|
CS-THG-B010 |
400 |
500 |
3-8 |
CS-THG-B050 |
500 |
420 |
8-25 |
|
CS-THG-B011 |
500 |
500 |
3-8 |
CS-THG-B051 |
500 |
400 |
8-25 |
|
CS-THG-B012 |
600 |
600 |
3-8 |
CS-THG-B052 |
500 |
390 |
8-25 |
|
CS-THG-B013 |
765 |
730 |
8-25 |
CS-THG-B053 |
500 |
370 |
8-25 |
|
CS-THG-B014 |
740 |
520 |
8-25 |
CS-THG-B054 |
480 |
480 |
8-25 |
|
CS-THG-B015 |
732 |
445 |
8-25 |
CS-THG-B055 |
480 |
400 |
8-25 |
|
CS-THG-B016 |
730 |
400 |
8-25 |
CS-THG-B056 |
480 |
360 |
8-25 |
|
CS-THG-B017 |
730 |
280 |
8-25 |
CS-THG-B057 |
480 |
330 |
8-25 |
|
CS-THG-B018 |
720 |
630 |
8-25 |
CS-THG-B058 |
460 |
440 |
8-25 |
|
CS-THG-B019 |
700 |
700 |
8-25 |
CS-THG-B059 |
460 |
350 |
8-25 |
|
CS-THG-B020 |
700 |
550 |
8-25 |
CS-THG-B060 |
460 |
320 |
8-25 |
|
CS-THG-B021 |
700 |
500 |
8-25 |
CS-THG-B061 |
450 |
450 |
8-25 |
|
CS-THG-B022 |
700 |
450 |
8-25 |
CS-THG-B062 |
450 |
420 |
8-25 |
|
CS-THG-B023 |
640 |
800 |
8-25 |
CS-THG-B063 |
450 |
400 |
8-25 |
|
CS-THG-B024 |
640 |
500 |
8-25 |
CS-THG-B064 |
450 |
380 |
8-25 |
|
CS-THG-B025 |
625 |
300 |
8-25 |
CS-THG-B065 |
450 |
340 |
8-25 |
|
CS-THG-B026 |
610 |
400 |
8-25 |
CS-THG-B066 |
430 |
420 |
8-25 |
|
CS-THG-B027 |
600 |
600 |
8-25 |
CS-THG-B067 |
420 |
400 |
8-25 |
|
CS-THG-B028 |
600 |
550 |
8-25 |
CS-THG-B068 |
420 |
380 |
8-25 |
|
CS-THG-B029 |
600 |
520 |
8-25 |
CS-THG-B069 |
400 |
400 |
8-25 |
|
CS-THG-B030 |
600 |
400 |
8-25 |
CS-THG-B070 |
400 |
380 |
8-25 |
|
CS-THG-B031 |
600 |
370 |
8-25 |
CS-THG-B071 |
400 |
350 |
8-25 |
|
CS-THG-B032 |
560 |
380 |
8-25 |
CS-THG-B072 |
400 |
280 |
8-25 |
|
CS-THG-B033 |
560 |
270 |
8-25 |
CS-THG-B073 |
400 |
250 |
8-25 |
|
CS-THG-B034 |
550 |
550 |
8-25 |
CS-THG-B074 |
380 |
380 |
8-25 |
|
CS-THG-B035 |
550 |
520 |
8-25 |
CS-THG-B075 |
365 |
365 |
8-25 |
|
CS-THG-B036 |
550 |
500 |
8-25 |
CS-THG-B076 |
350 |
350 |
8-25 |
|
CS-THG-B037 |
550 |
480 |
8-25 |
CS-THG-B077 |
340 |
320 |
8-25 |
|
CS-THG-B038 |
550 |
450 |
8-25 |
CS-THG-B078 |
340 |
310 |
8-25 |
|
CS-THG-B039 |
550 |
430 |
8-25 |
CS-THG-B079 |
320 |
320 |
8-25 |
|
CS-THG-B040 |
550 |
400 |
8-25 |
Note: Other specifications are available as your request. |
Sic Ceramic Plate Test Standard
1.Hardness Test: Vickers or Rockwell Hardness tests are used to measure the hardness of silicon carbide plates.
2.Thermal Conductivity Test: This test measures the ability of silicon carbide plates to conduct heat from one point to another.
3.Tensile Strength Test: This test measures the amount of force required to break the silicon carbide plates.
4.Flexural Strength Test: This test measures the amount of force required to bend the silicon carbide plates.
5.Impact Strength Test: This test measures the ability of the silicon carbide plates to resist impact.
OEM Service
1. Design: Design of the silicon carbide plate should be customized according to customer's specific requirements.
2. Quality: The silicon carbide plate should meet the highest quality standards.
3. Surface Finish: The surface finish of the silicon carbide plate should be smooth and free from defects.
4. Size: The size of the silicon carbide plate should be exact and meet the customer's requirements.
5. Strength: The silicon carbide plate should be strong and durable.
6. Heat Resistance: The silicon carbide plate should be able to withstand extreme temperatures.
7. Corrosion Resistance: The silicon carbide plate should be resistant to corrosion.
8. Cost-Effectiveness: The silicon carbide plate should be cost-effective and affordable.
Silicon Carbide Plate's Use/Maintenance Methods
1. The storage site of sic refractory board must be kept dry and away from moisture.
2. The placement of sic refractory board should avoid plane stacking, and the upright arrangement method should be adopted.
3. The surface of sic refractory board is sprayed with alumina refractory coating, so it should be placed at the edge of the kiln before use.
4. In order to ensure that the sic refractory board is used for a long time without damage, the fired articles should be placed dry and then installed in the kiln.
5. glaze after the product, contact with the refractory board part of the glaze should be wiped clean.
6. When constructing the refractory board, the refractory pillar should be kept vertical and straight to ensure uniform and smooth stress.
7. The distance of the refractory board should be greater than 15-20mm.
8. The design of the firing curve should be in line with the normal operating conditions, and should not be rapid hot and cold.
9. cooling should be used to cool, avoid the use of cold air rapid cooling, and affect the refractory board.
10. carefully handle the kiln, avoid handling by hand in high temperature, and avoid collision.
Packing & Shipping
Why Choose Us
As a professional industrial ceramic supplier, we have a series of advantages that guarantee our market share in the international trade market.
1.Reliable quality control, complete specifications, support customization of non-standard products.
2.Professional and committed service team.
3.Multiple protection of packaging, secure and reliable.
4.Highly efficient delivery channel, safe and rest-assured.
FAQ
1. What is Silicon Carbide Plate?
Silicon Carbide Plate is a high-performance plate material made from a combination of silicon and carbon. It is extremely hard and heat-resistant, making it ideal for a variety of applications from furnace linings and kiln furniture to cutting tools, nozzles, and wear-resistant components.
2. What are the benefits of using Silicon Carbide Plate?
Silicon Carbide Plate offers many benefits, including excellent strength and wear-resistance, high temperature resistance, low thermal expansion, and excellent thermal shock resistance. It also has high electrical and thermal conductivity and oxidation resistance, making it ideal for a variety of applications.
3. What are the applications of Silicon Carbide Plate?
Silicon Carbide Plate is used in a variety of industries, including automotive, aerospace, semiconductor, and energy. It is ideal for high-temperature parts, components, and furniture, as well as cutting tools, nozzles, and wear-resistant components.
4. What is the maximum temperature of Silicon Carbide Plate?
Silicon Carbide Plate can withstand temperatures up to 1600°C (2912°F).
