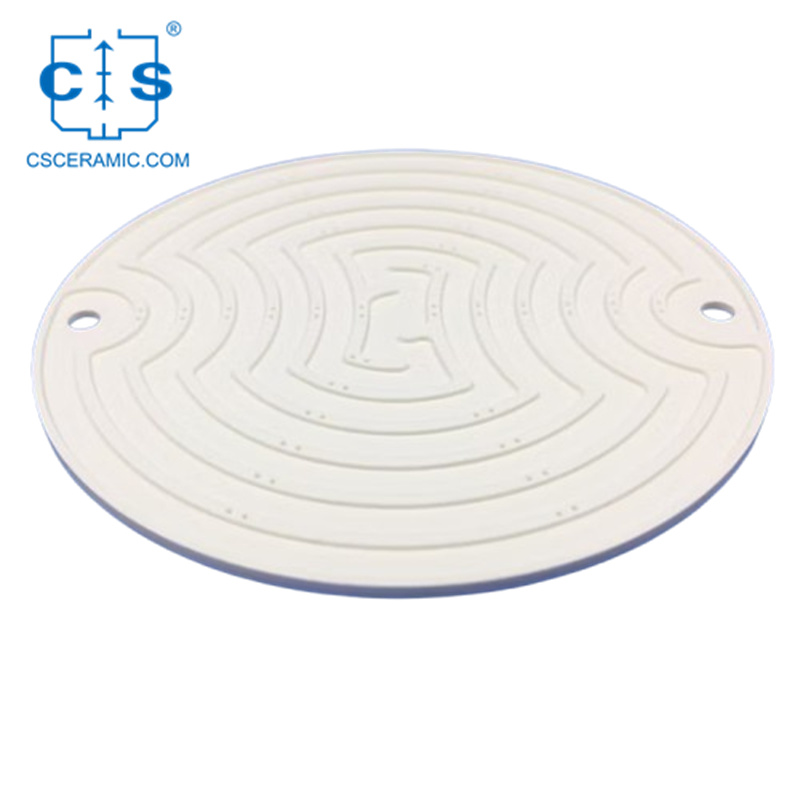

Ultra-Pure PBN Ceramic Heater Plate for Metallurgical & Semiconductor Equipment

The PBN-PG-PBN ceramic heater features excellent thermal shock resistance, conductivity, and anisotropy, widely used in metallurgical and semiconductor manufacturing equipment.

item no. :
CS-PBN/PG-1001
Material : BN

contact now catalogue

description

Properties of PBN Ceramic Heating Element

Advanced Boron Nitride Ceramic Heater: Our heater is crafted from a combination of pyrolytic boron nitride and pyrolytic graphite, both manufactured using high-temperature chemical vapor deposition (CVD) for superior performance.
Exceptional Thermal Properties: It boasts very good thermal shock resistance, ensuring it can handle extreme temperature changes without damage.
High Thermal Conductivity: The heater efficiently transfers heat, providing consistent and reliable performance in various applications.
Anisotropic Characteristics: The unique anisotropy of the material allows for precise control of heat distribution, enhancing overall performance and efficiency.
Ideal for High-Temp Applications: Perfect for industries requiring high-temperature heating solutions, such as electronics, semiconductors, and aerospace.

Applications of PBN Ceramic Heating Element

Versatile PBN Ceramic Heating Plate: Our PBN ceramic heating plate is designed for use in a wide range of metallurgical and semiconductor manufacturing equipment, making it a versatile solution for various industrial applications.
High-Performance Heating: The plate's ceramic composition ensures efficient and uniform heating, ideal for precise temperature control in critical processes.
Durability and Reliability: Made from high-quality materials, the heating plate offers exceptional durability and reliability, ensuring long-lasting performance in demanding environments.
Semiconductor Industry Applications: Perfect for use in semiconductor manufacturing equipment, where precise temperature control is crucial for achieving high-quality results.
Metallurgical Equipment Compatibility: Suitable for a variety of metallurgical equipment, providing efficient heating solutions for metal processing and treatment processes.

Cutomized Design of PBN Ceramic Heating Element

Please provide drawing and parameter requirements. (shall include but not limited to working temperature, current, power supply voltage)

Tags : Pyrolytic Boron Nitride Heater Plate Boron Nitride Ceramic Heater High-Temp CVD Ceramic Heater Semiconductor Manufacturing Ceramic Heater PBN Ceramic Heating Element
