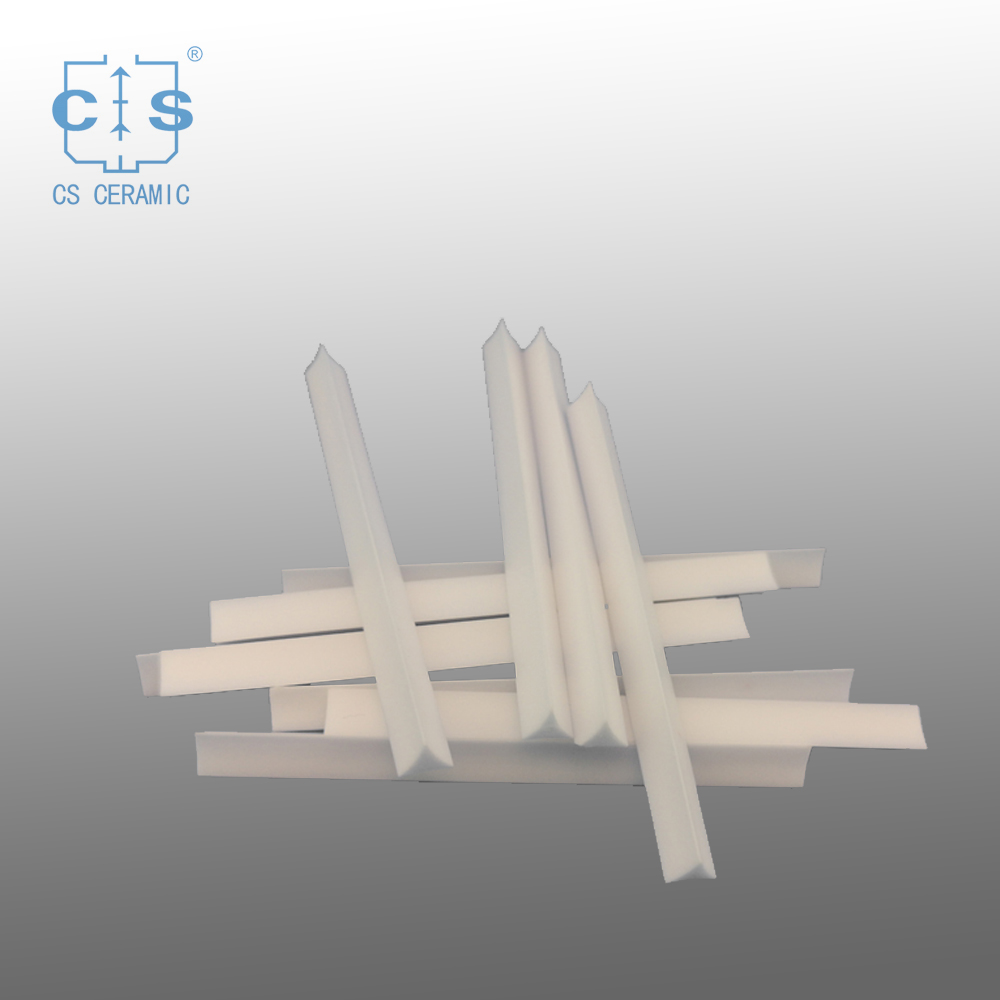

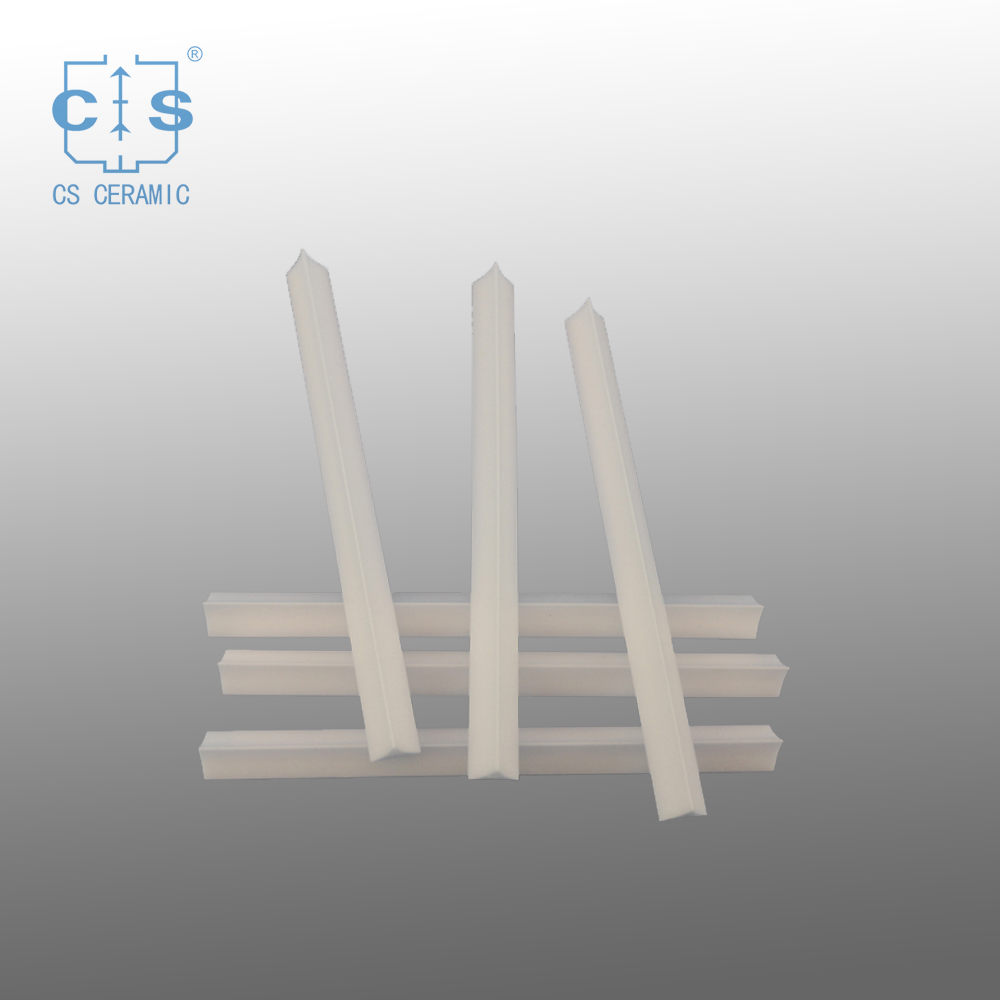

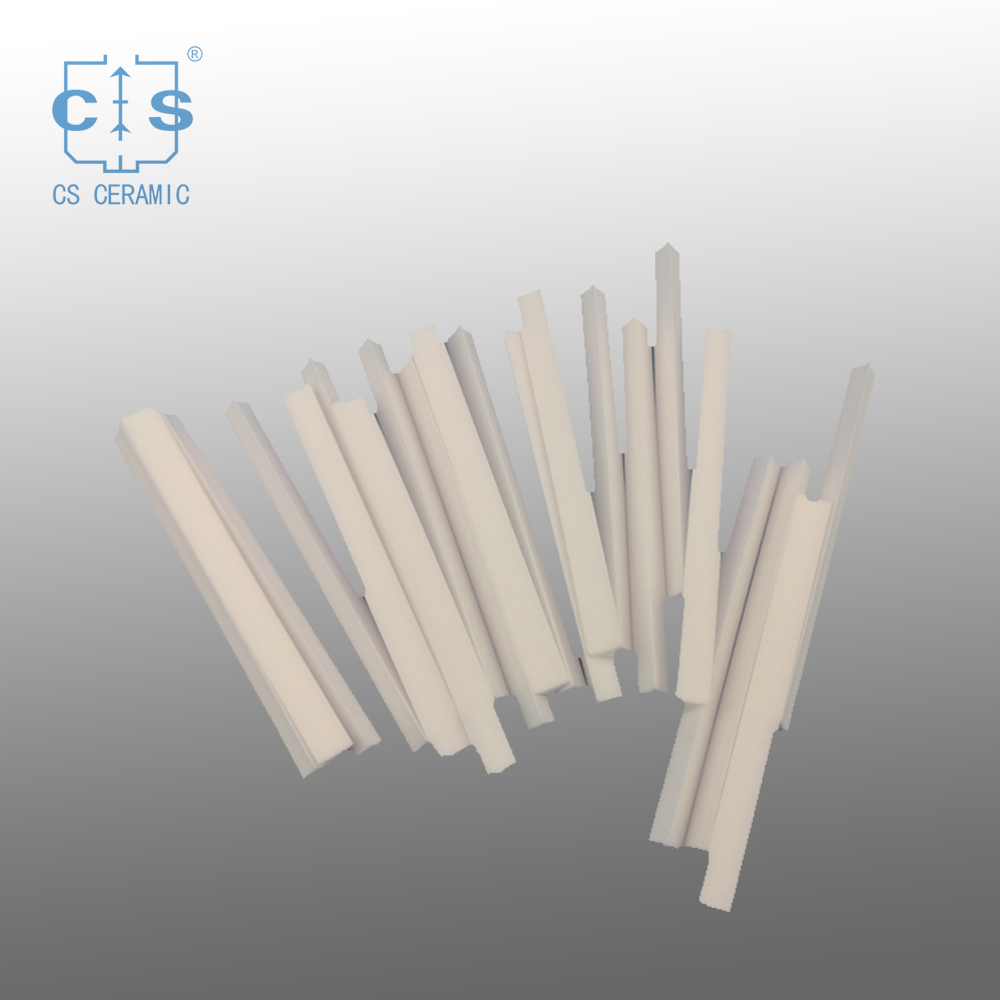

Triangle alumina ceramic rods have a higher strength to weight ratio than other ceramics, and can be used to manufacture lighter and stronger parts.Available in a variety of sizes and shapes.
item no. :
CS-OT-092Color :
White99.5% 99.7% 99% 90% 92% 95%
Material : Alumina ceramic
Length : 1-2500mm
Shape : Triangle
1. Alumina ceramic rods have superior mechanical strength, fracture toughness≥5.6Mpa.m3/2.
2. Alumina ceramic rods are non-reactive and non-toxic, making them ideal for use in medical and food processing applications.
3. Alumina ceramic rods are corrosion-resistant, which makes them a goodness selection for use in undefined environments.
4. Alumina ceramic rods are electrically insulative, volume resistivity>1014Ohm/cm2 and can be used as an operational physical phenomenon insulator.
5. High temperature resistance, 1600℃ in long use,1800℃ in short use (Al2O3≥99%).
1. Alumina Ceramic rod is a high-strength, corrosion-resistant material designed for use in a widely straddle of heavy-duty applications.
2. It features superior wear resistance, excellent thermal traumatise resistance, and outstanding physical phenomenon insulation properties.
3. The rod is machined and polished to super ticket tolerances and is available in a variety of sizes and shapes.
4. Its non-porous, non-toxic, and non-magnetic properties work it nonesuch for use in medical, chemical, and solid food processing applications, as well as for electrical insulation and heat transfer.
5. The rod is strong, rigid, and capable to withstand senior high temperatures and pressures, qualification it an ideal choice for a variety of industrial and commercial applications.
OEM: All sizes can be customized and can be made into various complex shapes with high dimensional accuracy. Please clearly provide the height, bottom diameter, top diameter, wall thickness and any special requirements. To speed up the quotation, please provide drawings.
How to make alumina ceramic rods?
1. Wear-resistant Seals: Alumina ceramic rods are used in applications that require wear-resistant seals and bearings, such as pumps, valves, and compressors.
2. Heat Exchangers: Alumina ceramic rods are used in heat exchangers to help regulate temperature and provide thermal insulation.
3. Insulation: Alumina ceramic rods are also used as an effective thermal insulator in many applications, such as electrical components, heating elements, and aircraft components.
4. Machining: Alumina ceramic rods are often used in machining applications because of their hardness and durability. They can be used for drilling, grinding, and cutting.
5. Medical: Alumina ceramic rods are also used in medical devices such as prosthetics and orthotics. They are also used in dental implants and bone grafts.
| Item | Test Condition | 95% Al2O3 | 99% Al2O3 | 99.5% Al2O3 | ||
| Physical properties | Density | g/cm3 | >3.6 | 3.89 | 3.96 | |
| Moisture absorption | % | 0 | 0 | 0 | ||
| Mechanical properties | ROHS Hardness | ≥85 | ≥89 | ≥89 | ||
| Flexural strength | psiX103 | 20℃ | 358 | 550 | 550 | |
| Compressive strength | psiX103 | 20℃ | 2068(300) | 2600(377) | 2600(377) | |
| Fracture toughness | Mpa.m3/2 | K(l c) | 4.3 | 5.6 | 6 | |
| Thermal properties | Maximum use temperature | ℃ | 1450 | 1600 | 1650 | |
| Thermal expansion coefficient | 1X10-6/℃ | (25-1000℃) | 7.6 | 7.9 | 8.2 | |
| Thermal shock resistance | ℃ | Tc | 250 | 200 | 200 | |
| Thermal conductivity | w/mok | 20℃ | 16 | 30 | 30.4 | |
| Electrical properties | Volume resistivity | Ohm/cm2 | 100℃ | >1013 | >1014 | >1014 |
| Dielectric breakdown strength | KV/mm | 8.7(220) | 8.7(220) | 8.7(220) | ||
| Dielectric constant | (E) | 1MHz25℃ | 9 | 9.7 | 9.7 | |
| Dielectric constant (100MHz) | (E) | 9.5 | ||||
Q1. What information should we supply to get a quote?
Please offer the specification of ceramic rod, such as shape, dimension, quantity, application etc.
Q2. What types of alumina ceramic rods are available?
Alumina ceramic rods are available in a variety of sizes, shapes, and grades, depending on the application. Common types include rods with a standard round shape, rods with a rectangular shape, rods with a triangle shape, and rods with a hexagonal shape.
Q3. How do I choose the right alumina ceramic rod for my application?
Choosing the right alumina ceramic rod for your application will depend on a number of factors, including the type of application, the size and shape of the rod, and the grade of the material.
Q4. What is the lead time for the alumina rod?
The lead time for the alumina rod is dependent on the size and quantity required. Please contact us for more infor.
1. First, place the alumina ceramic rod in a solution of warm water and mild detergent.
2. Use a soft cloth or brush to scrub the rod gently, taking care not to damage the ceramic.
3. Rinse the rod off with clean, warm water and make sure all detergent residue is removed.
4. Dry the alumina ceramic rod with a clean, soft cloth, and inspect it for any remaining dirt or debris.
5. If necessary, repeat the cleaning process until the rod is free of any residue.
1. Visual inspection of the rod for any signs of damage or irregularities.
2. Measurement of the length, width, and thickness of the rod to check for accuracy.
3. Checking for any leaks or pinhole defects in the rod.
4. Verification of the material and chemical composition of the rod.
1. We supply personalized and customized services to contact your personal needs.
2. We are experienced professionals with a good record of success.
3. We provide superior client service and promptly respond to all inquiries.
4. We provide militant prices and strive to ensure that your funds receive the best value.
5. We use the latest technologies and tools to ensure that your project is completed to the highest standards.
Square Alumina Rod Alumina Ceramic Rods Length 1-2500mm
Square alumina ceramic rods have a higher strength to weight ratio than other ceramics, and can be used to manufacture lighter and stronger parts.Available in a variety of sizes and shapes.
Circle Alumina Rod Ceramic Rods Length 1-2500mm
Circle alumina ceramic rods have a higher strength to weight ratio than other ceramics, and can be used to manufacture lighter and stronger parts.Available in a variety of sizes and shapes.
Alumina Ceramic Pipes Thermocouple Insulator Ceramic Protection Tube(Closed one End) 1-2500mm
Alumina pipes advantage:high heat resistance,good cold-resistance heat-resistance,resistance to acid and alkali corrosion. Long service life. OEM is accpected.
2/4 Hole Alumina Ceramic Tubes Insulation Thermocouple Protection Ceramic Alumina Pipes
Thermocouple protection alumina tubes is mainly used to divide the different electrode of themometric element, they are lightweight and cost-effective, making them a great choice for cost-conscious applications.
Square Alumina Ceramic Tubes One hole 1-2000mm
Square alumina tubes have high corrosion resistance, excellent thermal shock resistance, high thermal insulation. A variety of specifications available. OEM/ODM is acceptable.
Alumina Ceramic Tubes/Pipes Both Open Single Bore Tubes Length 1mm-2500mm
Alumina tubes both sides open are commonly used in various industrial and laboratory applications. They are ideal for use in processes such as heating, cooling, and drying, and can offer superior thermal and electrical insulation.
OEM Alumina Rod Ceramic Rods
Alumina ceramic rods have a higher strength to weight ratio than other ceramics, and can be used to manufacture lighter and stronger parts.All sizes can be customized and can be made into various complex shapes with high dimensional accuracy.
Small Alumina Ceramic Rods for Textile Machine
Alumina rods/tubes are lightweight and durable, making them suitable for use in a variety of textile applications. Available in a variety of sizes and shapes.
