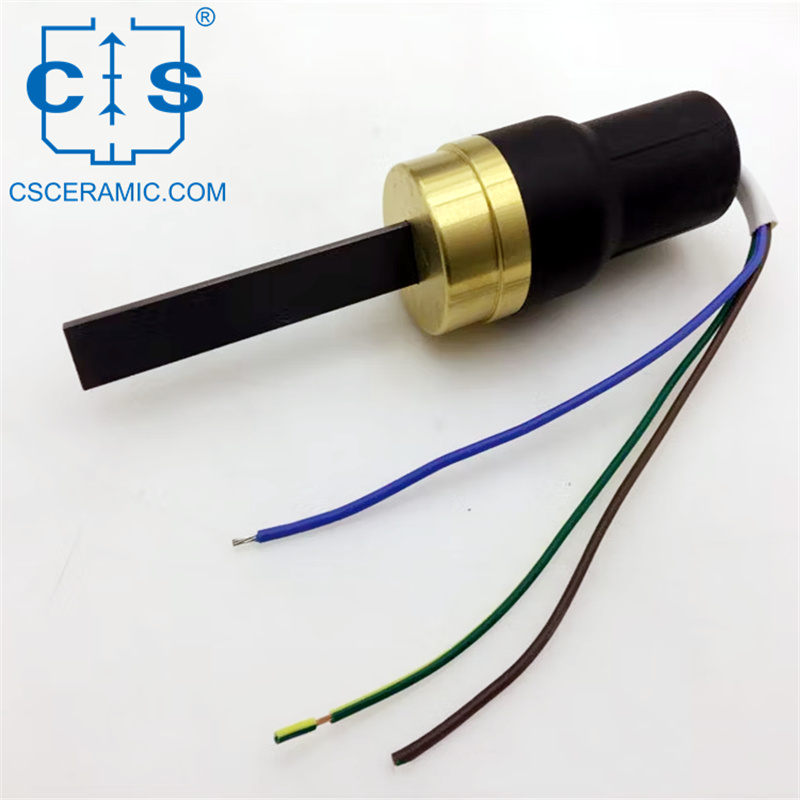

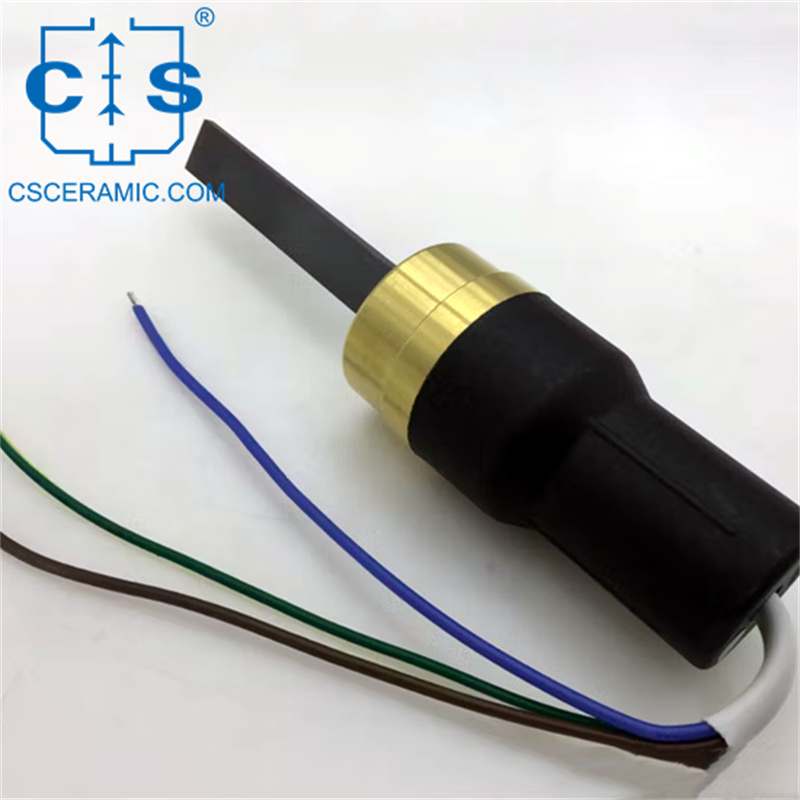

Si3N4 Ceramic Ignitor Rapid Heat-Up to 1000℃ Ignition via Direct/Blast Transfer for Terminal Protection

The Si3N4 ceramic ignitor, rapidly heats to 800~1000℃ in seconds, igniting fuel via direct or blast heat transfer, with a temperature buffer and insulation package protecting against terminal damage and conductive ash-induced shorts.

item no. :
CS-DHG-JR138
Material : Si3N4

contact now catalogue

description

Properties of Si3N4 Heating Element

High-Temperature Resistance: Engineered for extreme conditions, our heating element boasts a dry burning temperature of up to 1200℃, making it ideal for high-temperature applications.
High Surface Load Capacity: With a heating load of up to 25w/cm2, this heating element can handle high power densities efficiently, ensuring reliable performance.
Corrosion Resistance: Its superior acid and alkali corrosion resistance makes it resilient to harsh environments, extending its durability and lifespan.
Rapid Heating with Thermal Shock Resistance: Boasting excellent thermal shock resistance, our heating element achieves a surface temperature of 800℃ within just 15 seconds, ensuring fast and efficient heating.
Long-Lasting Oxidation Resistance: With outstanding oxidation resistance, our heating element offers a long service life, capable of enduring up to 100,000 uses, ensuring cost-effective and reliable performance over time.

Applications of Si3N4 Heating Element

Widespread Industrial Use: Our ignitor is extensively utilized in industrial burners, preheaters, gas water heaters, mold heaters, packaging machinery, industrial heating equipment, cigarette lighters, and other high-temperature ignition devices, showcasing its reliability and adaptability.
Home Appliance Industry: Perfect for igniting gas water heaters, gas stoves, and gas dryers, our Si3N4 ignitor offers rapid ignition speeds and extended service life, enhancing the performance of your household appliances.
Industrial Processes: Meet the heating and ignition demands of plastics, rubber, petrochemical, and other industrial processes with our ignitor. Featuring high heating efficiency, a broad operating temperature range, and excellent corrosion resistance, it ensures optimal process outcomes.
Industrial Equipment: Ideal for industrial burners, mold heaters, and packaging equipment, our Si3N4 ignition rod guarantees dependable performance, enhancing the operational efficiency of your industrial setups.

Size Chart of Si3N4 Heating Element

Please provide drawing and parameter requirements for customization.

Silicon Nitride Heating Element
Item NO.	Total Length (mm)	Heating Zone		Encapsulation Zone				Voltage (V)	Power (W)
Item NO.	Total Length (mm)	LH (mm)	WH (mm)	LA (mm)	WA (mm)	DA (mm)	DH (mm)	Voltage (V)	Power (W)
CS-DHG-JR138	138	94	17	23	25	12	4	AC220-240	700/450
CS-DHG-JR128	128	84	17	23	25	12	4	AC220-240	600/400
CS-DHG-JR95	95	58	17	23	25	12	4	AC220-240	400
CS-DHG-JR52	52	15	17	23	25	12	4	AC110	100
CS-DHG-JR135	135	98	23	23	31	12	4	AC220-240	900/600
CS-DHG-JR115	115	76	30	25	38	12	4	AC220-240	900/600
