item no. :
CS-A-07-1Color :
WhiteMaterial : Alumina ceramic
Cover : with
1. High temperature resistance: The short-circuit form of alumina crucible with lid is able to withstand temperatures up to 1600°C, qualification it suitable for a variety of applications.
2. Thermal expansion: It has a low thermal expansion rate, which makes it ideal for use in senior high temperature applications.
3. High thermal shock resistance: It is able to withstand sudden changes in temperature, making it suitable for applications that want rapid heating and cooling.
4. High chemical resistance: It is highly resistant to a variety of chemicals, qualification it suitable for apply in corrosive environments.
5. High mechanical strength: The short take shape of alumina crucible with lid has a high mechanical strength, making it right for use in applications that need a strong and durable material.

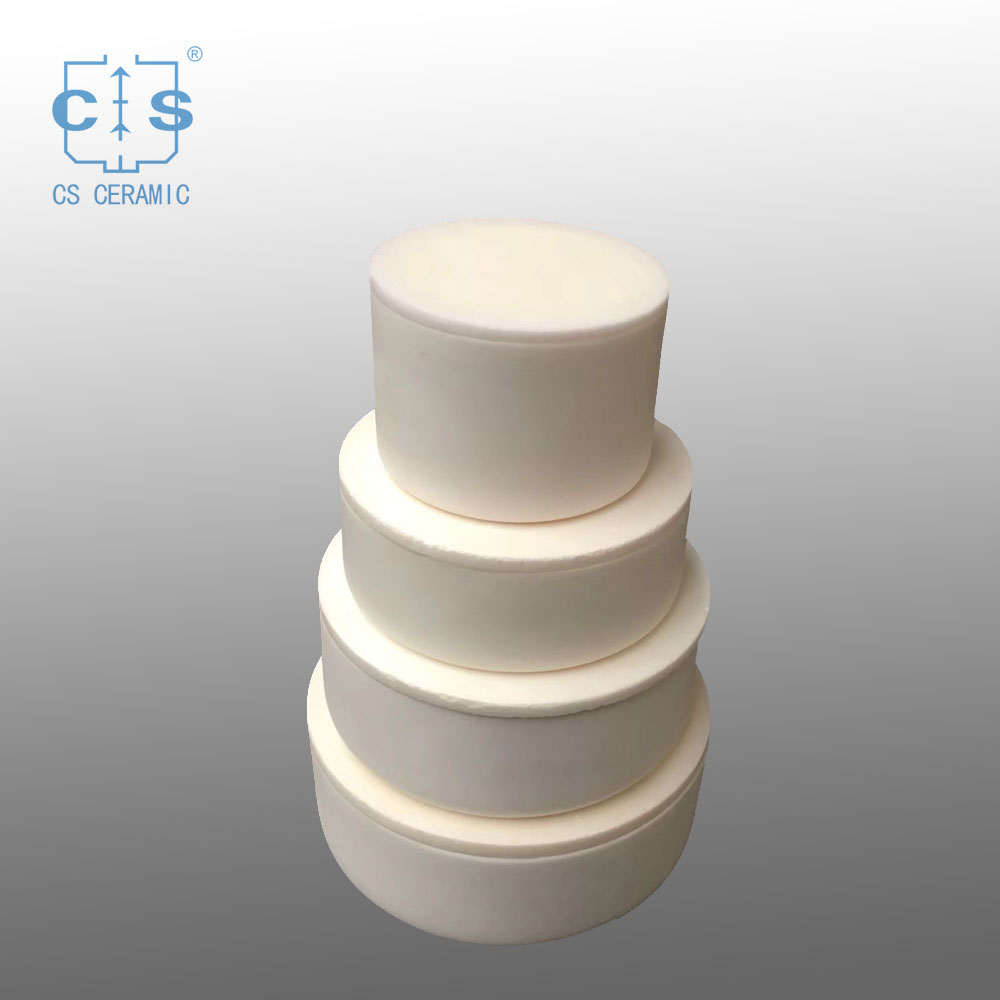

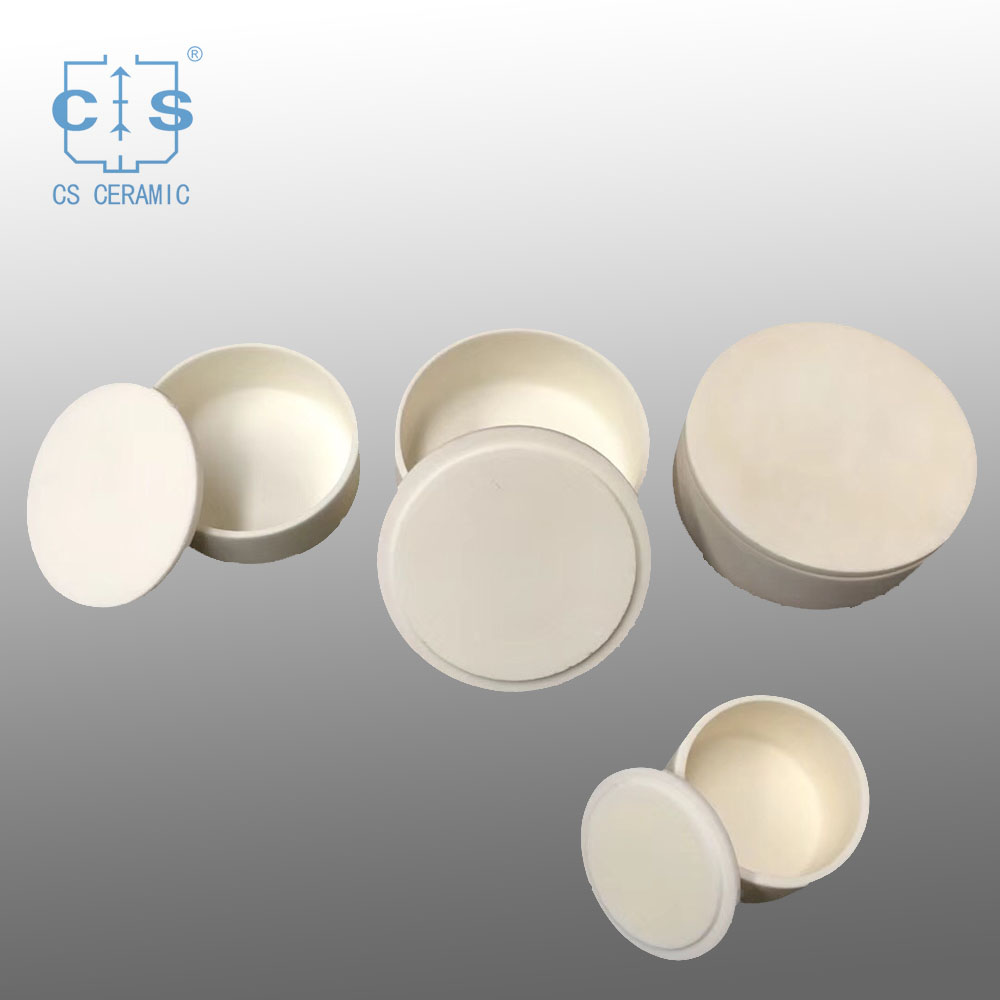

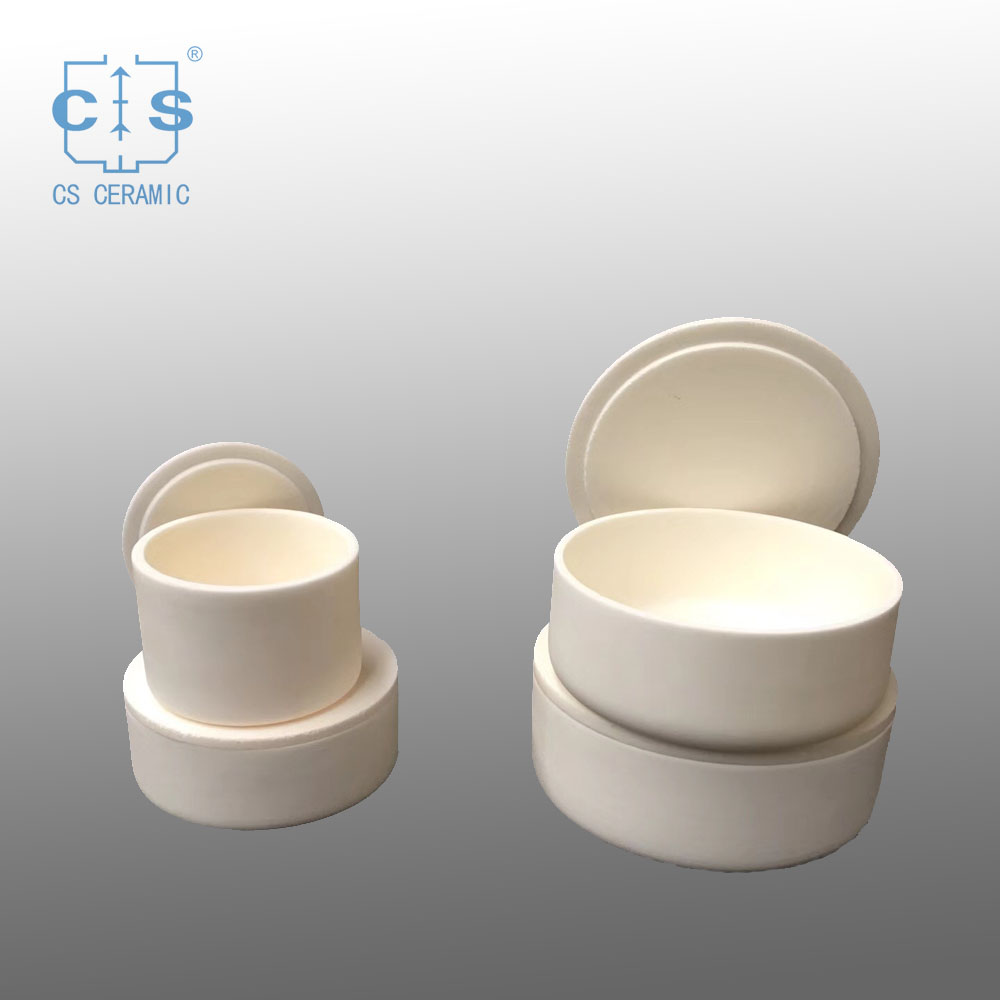

1. This alumina crucible with lid is made of high-grade aluminum oxide ceramic, which is durable and offers excellent underground to thermic shock.
2. It has a short form, making it ideal for smelting and thawing small quantities of metal and alloys.
3. The hat is premeditated to fit securely on the crucible, allowing for efficient fire u transfer to the stuff inside.
4. The wide back talk on the crucible ensures easy pouring of the liquefied material without whatever spills.
Item NO. | Volume (ml) | Outer diameter (mm) | Height (mm) |
CS-AC-119 | 25 | 35 | 35 |
CS-AC-121 | 30 | 36 | 45 |
CS-AC-123 | 30 | 40 | 35 |
CS-AC-124 | 225 | 90 | 45 |
CS-AC-125 | 240 | 90 | 45 |
CS-AC-126 | 300 | 100 | 50 |
CS-AC-127 | 300 | 100 | 50 |
CS-AC-128 | 250 | 80 | 65 |
CS-AC-129 | 325 | 100 | 50 |
CS-AC-130 | 400 | 115 | 55 |
CS-AC-131 | 440 | 110 | 55 |
CS-AC-132 | 570 | 120 | 60 |
CS-AC-133 | 600 | 135 | 15 |
CS-AC-134 | 600 | 135 | 55 |
CS-AC-195 | 500 | 150 | 40 |
CS-AC-136 | 80 | 75 | 27 |
CS-AC-137 | 80 | 60 | 40 |
CS-AC-141 | 120 | 90 | 35 |
CS-AC-151 | 200 | 100 | 35 |
CS-AC-152 | 200 | 100 | 40 |
CS-AC-193 | 130 | 65 | 45 |
CS-AC-194 | 200 | 100 | 40 |

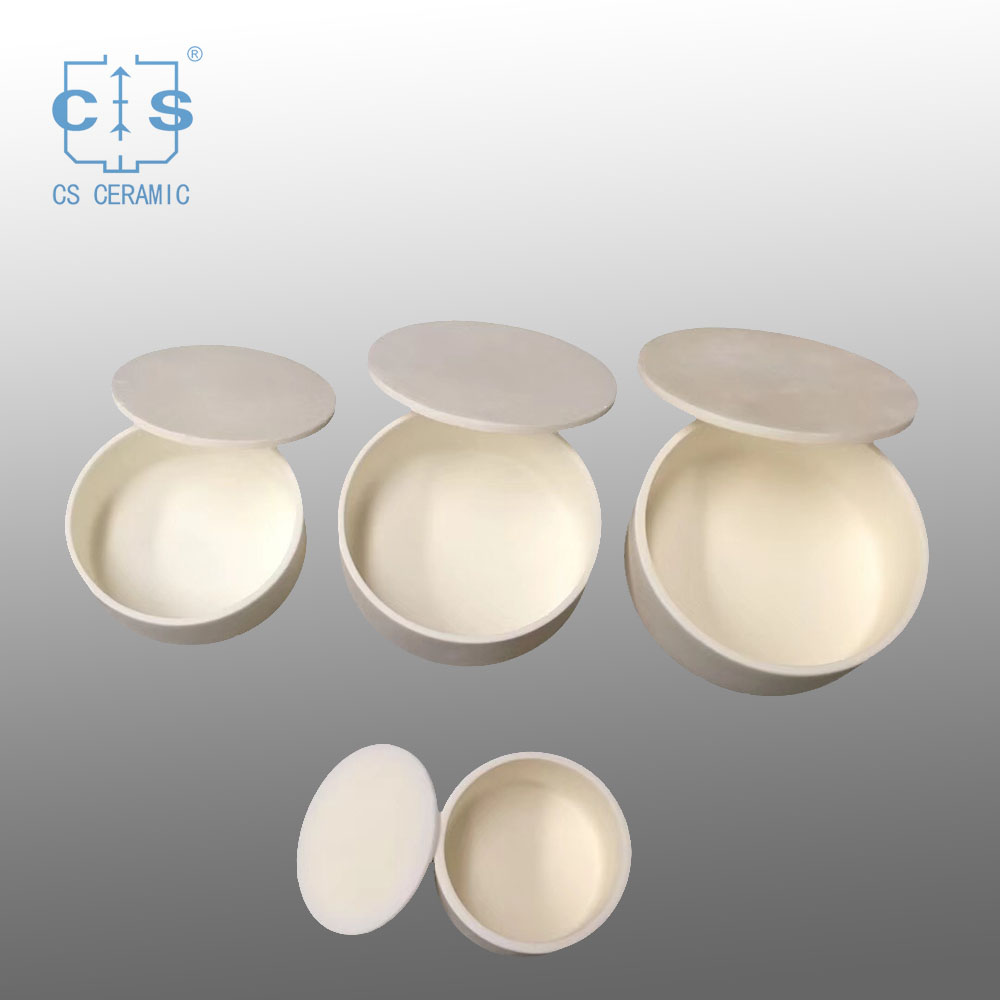

Products Display
1. Ideal for use in laboratory and industrial applications for melting, refining, and analyzing materials.
2. Perfect for fusing and tempering metals, as well as alloys and other furnace lining materials.
3. Put up be used for a variety show of technological and heavy-duty processes, such as distillation, calcination, and chemical substance reactions.
Item | Test Condition | 95% Al2O3 | 99% Al2O3 | 99.5% Al2O3 | ||
Physical properties | Density | g/cm3 | >3.6 | 3.89 | 3.96 | |
Moisture absorption | % | 0 | 0 | 0 | ||
Mechanical properties | ROHS Hardness | ≥85 | ≥89 | ≥89 | ||
Flexural strength | psiX103 | 20℃ | 358 | 550 | 550 | |
Compressive strength | psiX103 | 20℃ | 2068(300) | 2600(377) | 2600(377) | |
Fracture toughness | Mpa.m3/2 | K(l c) | 4.3 | 5.6 | 6 | |
Thermal properties | Maximum use temperature | ℃ | 1450 | 1600 | 1800 | |
Thermal expansion coefficient | 1X10-6/℃ | (25-1000℃) | 7.6 | 7.9 | 8.2 | |
Thermal shock resistance | ℃ | Tc | 250 | 200 | 200 | |
Thermal conductivity | w/mok | 20℃ | 16 | 30 | 30.4 | |
Electrical properties | Volume resistivity | Ohm/cm2 | 100℃ | >1013 | >1014 | >1014 |
Dielectric breakdown strength | KV/mm | 8.7(220) | 8.7(220) | 8.7(220) | ||
Dielectric constant | (E) | 1MHz25℃ | 9 | 9.7 | 9.7 | |
Dielectric constant (100MHz) | (E) | 9.5 |

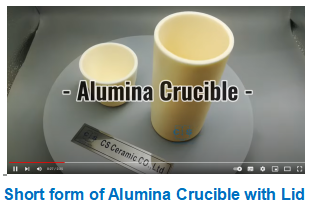

Q1. What is the short spring for Alumina Crucible with Lid?
The short form for Alumina Crucible with Lid is ACL.
Q2. What is Alumina Crucible with Lid?
Alumina melting pot with Lid is a typewrite of laboratory equipment used for warming materials at highschool temperatures.
Q3. What are the advantages of exploitation an Alumina Crucible with Lid?
The advantages of using an aluminium oxide Crucible with Lid include its underground to energy shock, its ability to withstand high temperatures, and its durability.
Q4. What is the stuff used to make an aluminium oxide melting pot with Lid?
Aluminum oxide Crucible with Lid is successful of a high-grade, high-purity alumina material.
Q5. What is the resolve of using an Alumina Crucible with Lid?
Aluminium oxide Crucible with Lid is secondhand for melting, evaporating, and analyzing a wide straddle of materials in the laboratory.
Q6. What is the terms range for an Alumina Crucible with Lid?
The price of an Alumina Crucible with hat varies depending on the size up and quality of the product. Generally, prices range from $50 to $200.
1. Use a soft, lint-free cloth to wipe away any dust or dirt particles from the come up of the alumina crucible with lid.
2. For stubborn soil and grime, employ a modest detergent and warm water to clean the surface.
3. Rinse the alumina melting pot with clean water to remove any soap residue.
4. Dry the alumina crucible with chapeau with a soft cloth and store in a cool and dry place.
Quality testing standards
1. Ensure that the product has a lid that fits firmly on the crucible so that No heat or material is lost during use.
2. Assure that the material used for construction is of high quality, long-wearing and tolerant to corrosion.
3. Ensure that the crucible has a unvarying wall thickness for uniform heating and cooling.
4. Verify that the crucible is capable to withstand caloric traumatise and not undefined or break off undefined to sudden temperature changes.
