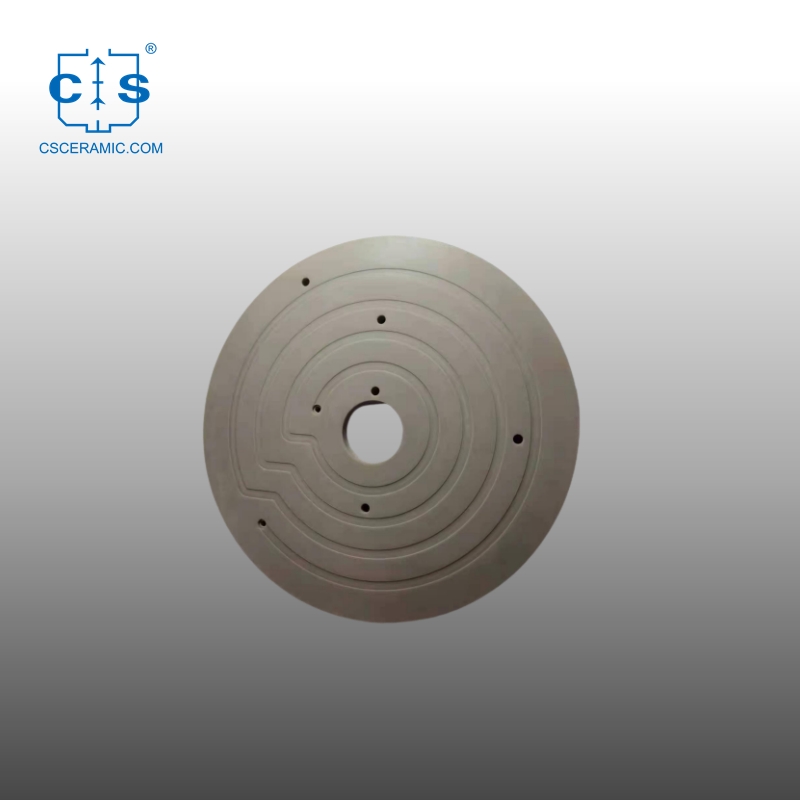

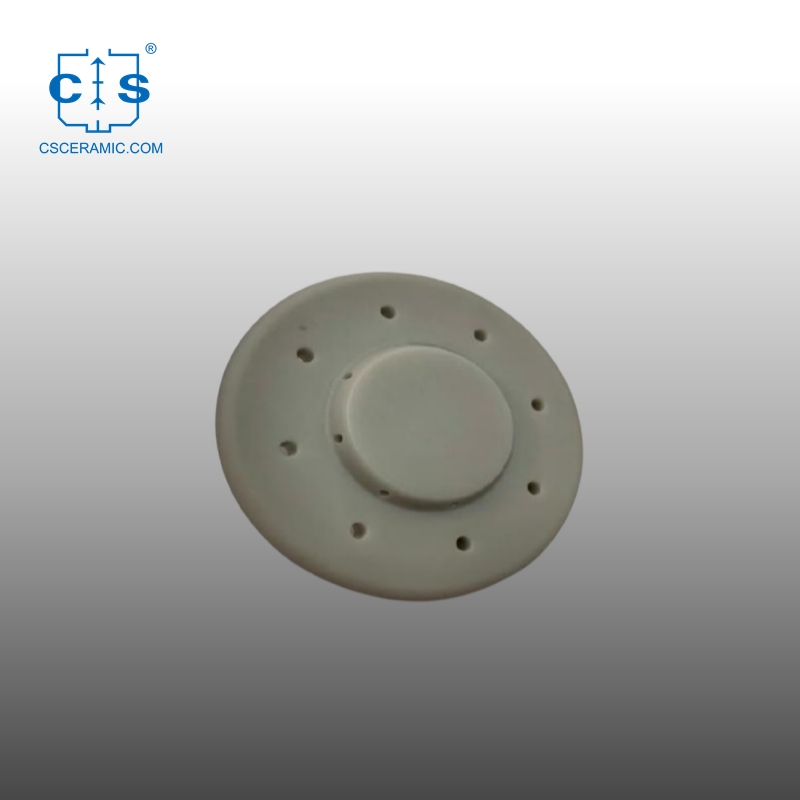

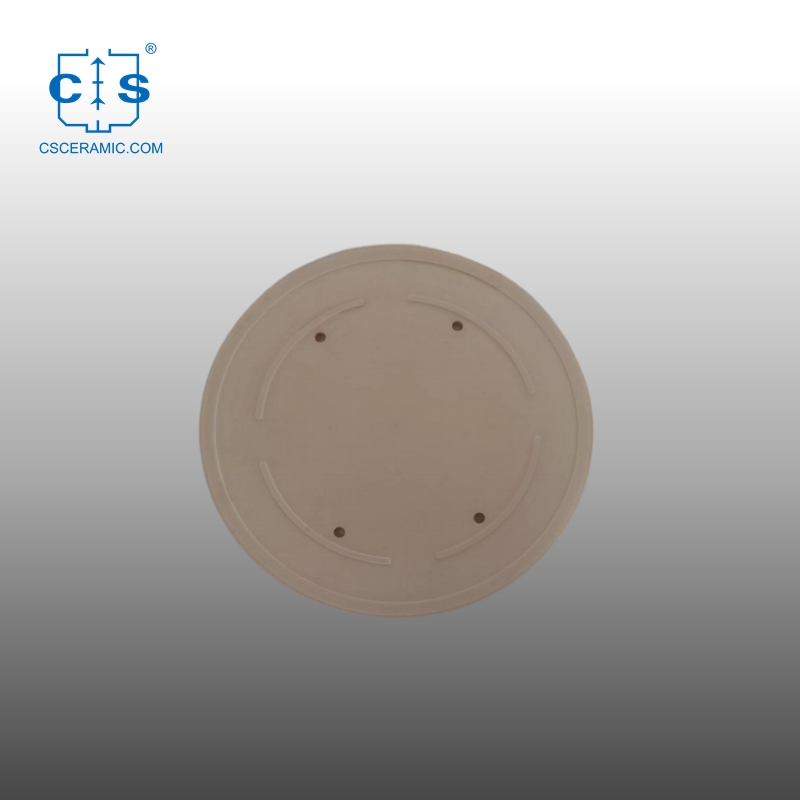

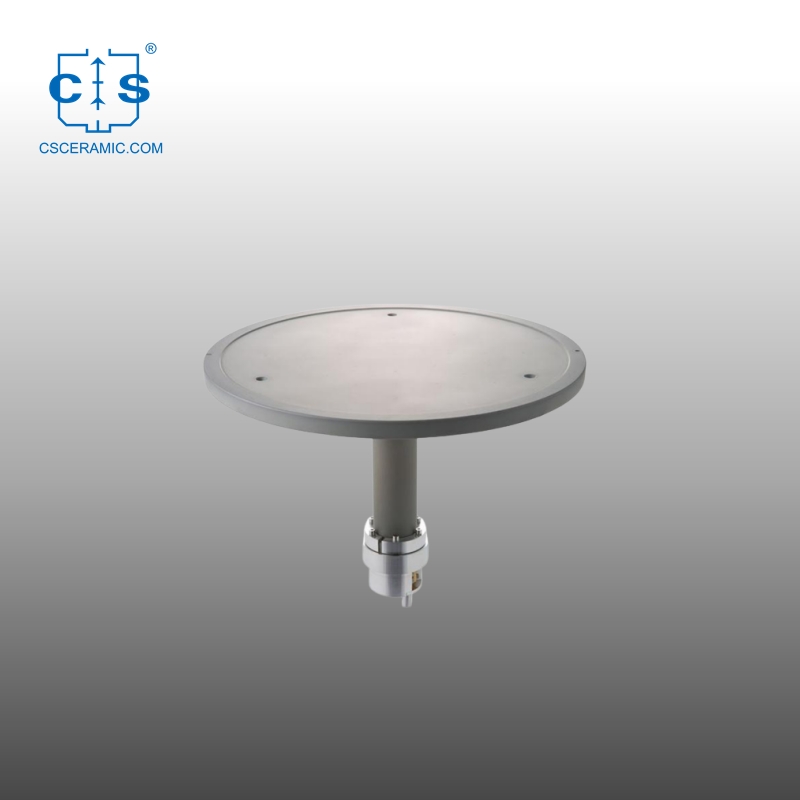

Aluminum Nitride Ceramic Heaters

Aluminum Nitride Ceramic Heaters

Advantages

1.Exceptional Thermal Conductivity: Aluminum nitride ceramic heaters are renowned for their high thermal conductivity, allowing them to efficiently transfer heat across their surface.

2.Uniform Temperature Distribution: Aluminum nitride ceramic heaters offer consistent temperature distribution across their surface.

3.High Thermal Stability: These ceramic heaters exhibit remarkable thermal stability even at elevated temperatures.

4.Chemical Resistance: They are resistant to many chemicals and corrosive substances.

5.Longevity and Durability: They are durable and have a longer operational life compared to some other heating technologies.

6.Low Thermal Expansion: Aluminum nitride has a low coefficient of thermal expansion, meaning it expands and contracts minimally with changes in temperature.

7.Environmental Friendliness: Aluminum nitride is non-toxic and environmentally friendly, making it a preferable choice for industries striving to minimize their environmental impact.

Descriptions

1.Aluminum nitride ceramic heaters can withstand high temperatures of 2200 ℃(purity ≥ 99%), providing fast and uniform heating for various applications.

2.The excellent thermal conductivity of aluminum nitride ensures efficient heat transfer.

3.Tailor your heating solutions to perfection with our customizable aluminum nitride ceramic heaters.

4.From size and shape to power and thermal characteristics, these heaters can be adjusted according to your specific requirements.

OEM/ODM is acceptable. Your goods will be produced exactly according to your drawings or inquiry.

Applications

1.Semiconductor Processing: Aluminum nitride ceramic heaters are extensively used in semiconductor manufacturing processes. They have fast and uniform heating capacity.

2.Medical Equipment: These heaters are employed in medical devices that require accurate and controlled heating for testing, analysis, and medical research.

3.Aerospace and national defense: They are used for temperature sensitive testing, thermal cycling, and thermal management under extreme conditions in aerospace applications.

4.Laboratory Instruments: In research settings, They are employed in devices like ovens, incubators, and thermal analyzers to ensure accurate and consistent heating for experimental processes.

5.Analytical Instruments: They are found in various analytical instruments, including gas chromatographs and mass spectrometers, where they contribute to controlled and stable temperature conditions during analysis.

6.Materials Processing: They are used in powder sintering, ceramic firing, and metal heat treating processes, where controlled heating is vital to achieve desired material properties.

Properties

Material Properties of AIN Ceramic
Property Sort	Characteristic		Unit	Property Index
				AN170	AN200	AN220
Basic Property	Color		-	Grey	Grey	Beige
	Water absorption		%	0	0	0
	Volume density		g/cm3	≥3.30	≥3.30	≥3.26
	Surface roughness		um	0.1~0.6	0.1~0.6	0.1~0.6
	Camber		(length ‰)	≤2‰	≤2‰	≤2‰
Thermal Property	Thermal conductivity (20℃)		W/m.k	≥170	≥200	≥220
	Coefficient of thermal expansion	(20℃~300℃)	(*10-6/℃)	4.6	4.6	4.5
		(40℃~800℃)		5.2	5.2	5.2
Mechanical Property	Bending strength		MPa	≥450	≥300	≥200
	Modulus strength		GPa	320	310	310
	Moh's hardness		-	8	8	8
Electrical Property	Dielectric strengh		KV/mm	≥17	≥16	≥15
	Volume resistivity		Ω.cm	≥1014	≥1014	≥1013
	Dielectric constant		-	9	8.6	8.5
	Dielectric loss		*10-4	2.98	2	2

FAQ

Q1. What are aluminum nitride ceramic heaters?

Aluminum nitride ceramic heaters are heating elements made from aluminum nitride ceramic material.

Q2. What are the advantages of aluminum nitride ceramic heaters?

Aluminum nitride ceramic heaters offer exceptional thermal conductivity, rapid and uniform heating, high thermal stability, chemical resistance, and durability.

Q3. In what industries are aluminum nitride ceramic heaters commonly used?

Aluminum nitride ceramic heaters can be used in laboratory research, medical equipment industry, semiconductor manufacturing industry, aerospace industry, electronic manufacturing industry, and so on.

Q4. Can aluminum nitride ceramic heaters be customized?

Yes, aluminum nitride ceramic heaters can be customized in terms of size, shape, wattage, and heating profiles to suit specific application requirements.

Q5. Are aluminum nitride ceramic heaters energy-efficient?

Yes, aluminum nitride ceramic heaters are energy-efficient due to their high thermal conductivity.
