laboratory analysis ceramic consumables
Manufacturer of Industrial Precision Ceramics
Ceramic Crucible Leco 528-018. Manufacturer of carbon sulfur crucible & cs crucible for LECO CS230. Eltra 90148/90149/90150/90152 Horiba 905.200.380.001 Bruker: JW-N009250423 Alpha AR3818 SerCon: SC0893 LECO528-018/002-301/002-302 Elementar 905.200.380.001 AN. Used for Carbon sulfur Analyzer Elemental Analysis.
Read More
Alumina tubes both sides open are commonly used in various industrial and laboratory applications. They are ideal for use in processes such as heating, cooling, and drying, and can offer superior thermal and electrical insulation.
Read More
Alumina Ceramic Substrate Sheet is an ideal choice for applications requiring high performance, reliability, and durability. It is available in various sizes and thicknesses to suit different applications.
Read More
Achieve unparalleled levels of purity with our Bone Ash Cupels. Engineered to remove impurities and unwanted elements, these cupels enable you to extract the true essence of your precious metals.
Read More
Alumina pipes advantage:high heat resistance,good cold-resistance heat-resistance,resistance to acid and alkali corrosion. Long service life. OEM is accpected.
Read More
Alumina crucible and boat are wildly used in laboratory and industrial analysis as well as metal and nonmetal material sample melting.Available in various sizes and shapes.
Read More
Circle alumina ceramic rods have a higher strength to weight ratio than other ceramics, and can be used to manufacture lighter and stronger parts.Available in a variety of sizes and shapes.
Read More
952018.906 100μl Platinum/Pt Crucibles(Sample Pans) for TA Instruments TA Q500/Q50/TGA 2950/2050. Manufacturer for TA crucibles and DSC sample pans. TA Instruments tga analyser good alternative sample cups.
Read More
Zirconia ceramic are used in shaft, plunger, sealing structure, auto-mobile industry, oil drilling equipment, insulation parts in electrical equipment, ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity. We can supply the products according to customer's drawings, samples and performance requi1
Read More
ME-00024123 DSC Alumina crucibles sample pans for Mettler TGA/sample robot measurements. Manufacturer for Mettler Toledo crucibles,sample pans and dsc consumables.
Read More

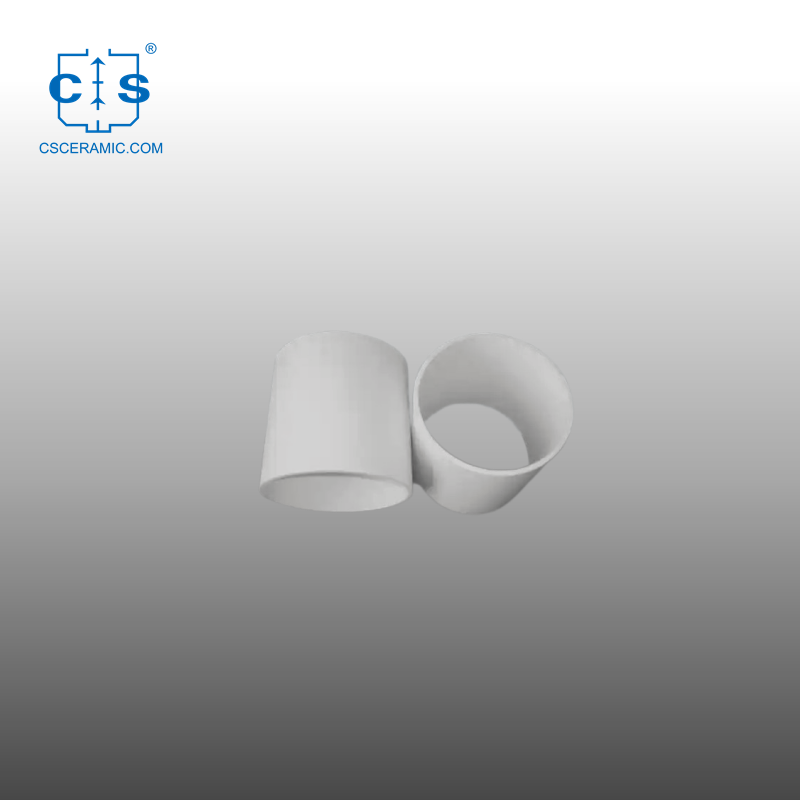

Alumina Bushing Ceramic Insulator for cable terminations. Multiple fluted and capped bushings, re-entrant bushings, tubular bushings, barrel and cylindrical bushings, etc. can be customized.
item no. :
CS-A-20Color :
White99.5% 99.7% 99% 90% 92% 95%
Material : Alumina ceramic
Shape : OEM
Size : OEM
1. Alumina bushing ceramic insulator is highly resistant to electric arcing, which increases safety and reliability.
2. It is highly resistant to chemical erosion, making it perfect for applications that require frequent exposure to water and other corrosive materials.
3. Alumina bushing ceramic insulator can be easily machined and molded, making it ideal for custom applications.
4. Alumina bushing can reduce wear, vibration and noise of equipment, and has the effect of anti-corrosion.
5. It can facilitate the maintenance of mechanical equipment, simplify the structure of equipment and manufacturing process.
1. Alumina bushing is a ceramic connector for industry parts.
2.Alumina bushing can be welding, adhesive, inset with the metals use for the industry parts.
3. Alumina bushing produced by technical ceramic with excellently properties.
4. The flexibility of the use of bushing is relatively high, it can play a lot of role, generally speaking, bushing is a kind of parts to protect the equipment.
| Products | Size in mm (L*W*T) or (S*T) | ||
| Ceramic square tile | 10*10*2~10, 17.5*17.5*2~15, 20*20*2~20, 33*33*5~25 etc. | ||
| Alumina Tile | 6*3~6, 11*3~25, 12*3~25,19.05*3~25 | ||
| Ceramic block | 32*32*32, 40*40*40 | ||
| Hex/square tile mats | 150*150, 300*300, 500*500 | ||
| Material of mats | Paper, nylon mesh, acetate cloth etc. | ||
OEM/ODM is acceptable. Your goods will be produced exactly according to your drawings or inquiry
| ITEM | UNIT | 95% Al2O3 | 99% Al2O3 |
| Density | g/cm3 | 3.7 | 3.85 |
| Vickers Hardness | Gpa | 14 | 17 |
| Flexural Strength | Mpa | 310 | 360 |
| Compressive Strength | Mpa | 2200 | 2500 |
| Electrical Resistivity | Ω·cm | >1014 | >1014 |
| Dielectric Strength | KV/mm | 15 | 17 |
| Dielectric Constant | 1 MHz | 8 | 9 |
| Thermal Conductivity | W/m.K | 25 | 29 |
| Max. Working Temperature | ℃ | 1450 | 1600 |
| Resistance to Thermal Shock | △T(℃) | 210 | 230 |
| Thermal Expansion Coefficient(25 - 1000 ℃) | 10-6/K | 7 - 9 | 7 - 9 |
1. Alumina bushing ceramic insulator can be used as electrical insulators in high voltage power lines and substations.
2. It can be used in the automotive industry as an insulating material between engine components. The material's resistance to heat and electrical conduction make it suitable for this purpose.
3. Used in the aerospace industry to insulate delicate electronics from the extreme temperatures encountered during flight. The material's remarkable insulation properties make it ideal for this application.
4. Used in the medical industry to manufacture components of medical equipment such as X-ray machines. The material's resistance to electrical conduction and heat makes it ideal for this purpose.
5. Used in the telecommunications industry to insulate sensitive electronic components from electrical and thermal shock. The material's excellent insulation properties make it well-suited for this purpose.
Q1. What information should we supply to get a quote?
Please offer the specification of alumina bushing ceramic insulator, such as shape, dimension, quantity, application etc.
Q2. What is the difference between alumina bushing ceramic insulator and other types of insulators?
Alumina bushing ceramic insulator is more durable and can withstand higher temperatures than other types of insulators. It also offers superior electrical insulation, excellent arc resistance, and low maintenance.
Q3. How is alumina bushing ceramic insulator installed?
Alumina bushing ceramic insulators are typically installed in one of two ways. The first is by adhering the insulator directly to the surface of the electrical component. The second is by using a mounting bracket, which is attached to the component and then secured to the insulator.
Q4. What is the lifespan of alumina bushing ceramic insulators?
The lifespan of alumina bushing ceramic insulators depends on the specific application and environment in which they are used. Generally, they can be used for several years with proper use and maintenance.
1. First, wipe the alumina bushing ceramic insulator with a damp cloth to remove dust and dirt.
2. Use a soft bristle brush and a mild detergent solution to scrub the alumina bushing ceramic insulator.
3. Wash the alumina bushing ceramic insulator with clean water, and then dry it with a soft cloth.
4. Ensure that the alumina bushing ceramic insulator is dry when used next time.
1. Visual inspection of the alumina bushing ceramic insulator for any signs of damage or irregularities.
2. Measurement the dimensions of the alumina bushing ceramic insulator to check for accuracy.
3. Checking for any pinhole defects in the alumina bushing ceramic insulator.
4. Verification of the material and chemical composition of the alumina bushing ceramic insulator.
1. We supply personalized and customized services to contact your personal needs.
2. We are experienced professionals with a good record of success.
3. We provide superior client service and promptly respond to all inquiries.
4. We provide militant prices and strive to ensure that your funds receive the best value.
5. We use the latest technologies and tools to ensure that your project is completed to the highest standards.
High Mechanical Strength Alumina Steatite Ceramic Parts
Alumina steatite ceramic parts are an ideal choice for components that require minimal maintenance and have a long life,they have excellent electrical insulation and thermal shock resistance.Available in various sizes.
Alumina Ceramic Thermocouple Insulator Tubes
Alumina ceramic thermocouple insulated tubes provide excellent insulation performance and durable durability, used to isolate thermocouples from high temperatures and corrosive environments.Available in various sizes.
Alumina Ceramic Laser Reflector
CS CERAMIC is committed to delivering high-quality alumina ceramic laser reflector tailored to your exact specifications.
Alumina Ceramic Ball Bearing Ceramic Bushings
Alumina ceramic ball bearing is a type of bearing that uses ceramic balls in order to reduce friction and improve bearing performance.These bushings are designed to reduce maintenance costs and extend the life of equipment.
Industrial Alumina Ceramic Piston Parts
Alumina ceramic piston adopts the ultra-hard wear resistance of modern engineering ceramic materials, can be assembled by ceramic metallization bonding,welding and socket technology.Available in various sizes.
High Alumina Ceramic Washer Ceramic Seal
Alumina ceramic washer ceramic seal is used as seals for a variety of applications.These rings are designed to provide a tight,reliable seal that won't leak or break down over time.Available in various sizes.
95% to 99% Alumina Ceramic Washer Ceramic Seal Ring
Alumina washer ceramic seal ring is used as seals for a variety of applications. These rings are designed to provide a tight, reliable seal that won't leak or break down over time.All sizes can be customized.
High Wear Resistance Alumina Ceramic Washer Sealing Ring
Ceramic washer sealing ring is used as seals for a variety of applications. These rings are designed to provide a tight, reliable seal that won't leak or break down over time.All sizes can be customized.
