ME-00026763 Aluminum crucibles sample pans for Mettler DSC Automation and TGA measurements. Thermal Analyzer Sample Pan for thermogravimetric analyzer. Manufacturer for Mettler Toledo crucibles and sample pans.
item no. :
CS-MM-015lead date :
5-7 daysSuitable for : Mettler
Material : Aluminum
Part NO : ME 0026763

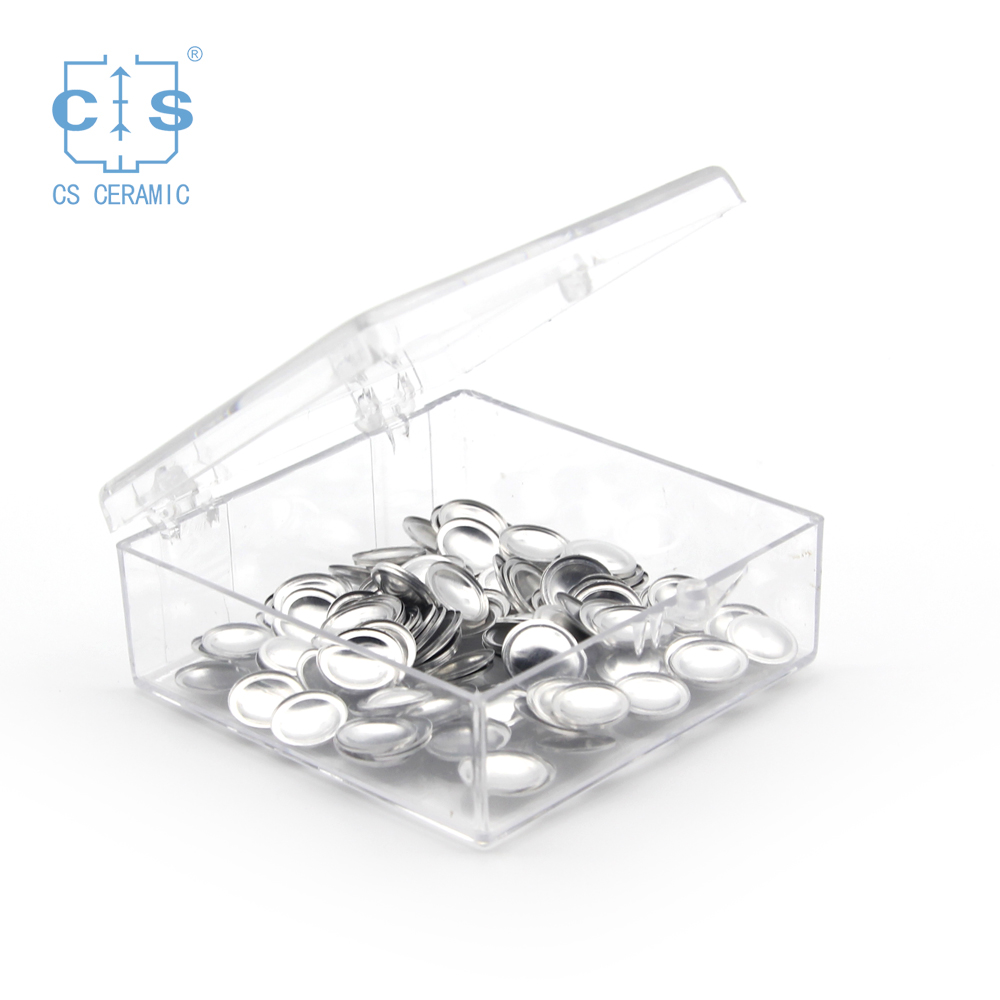

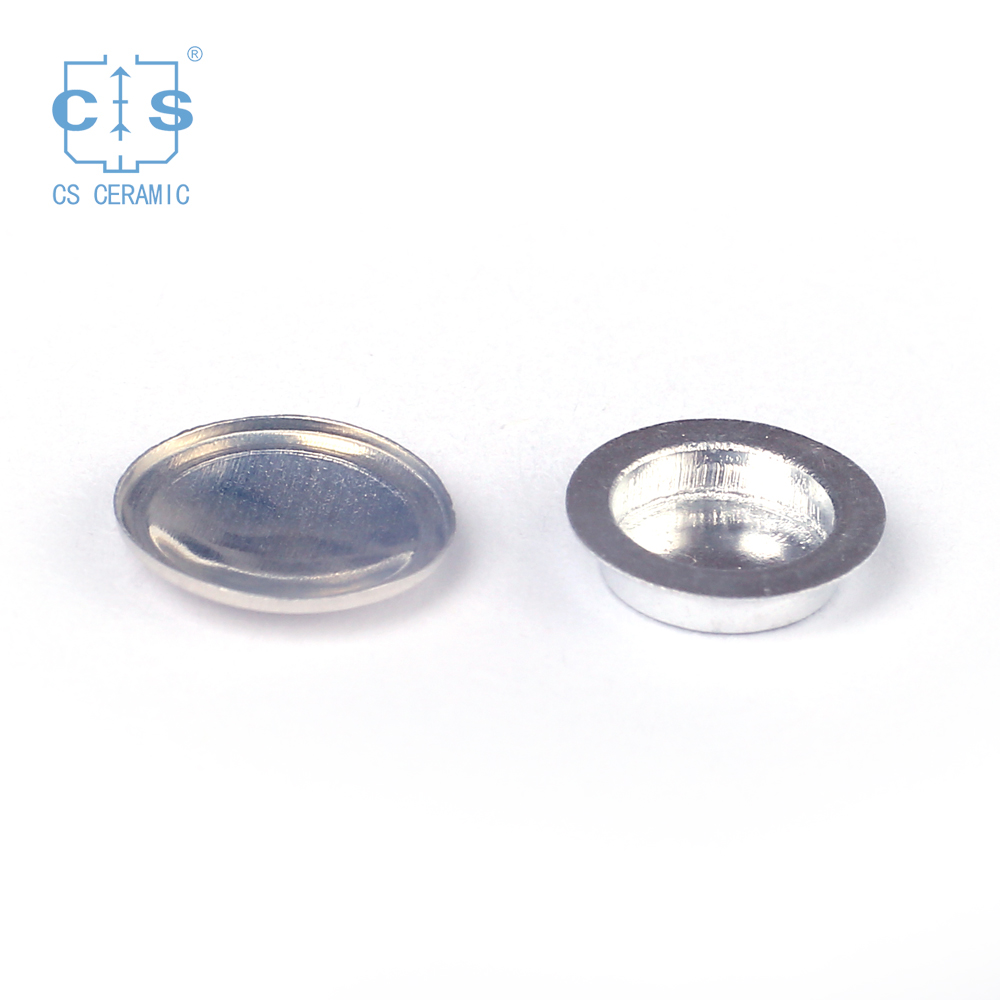

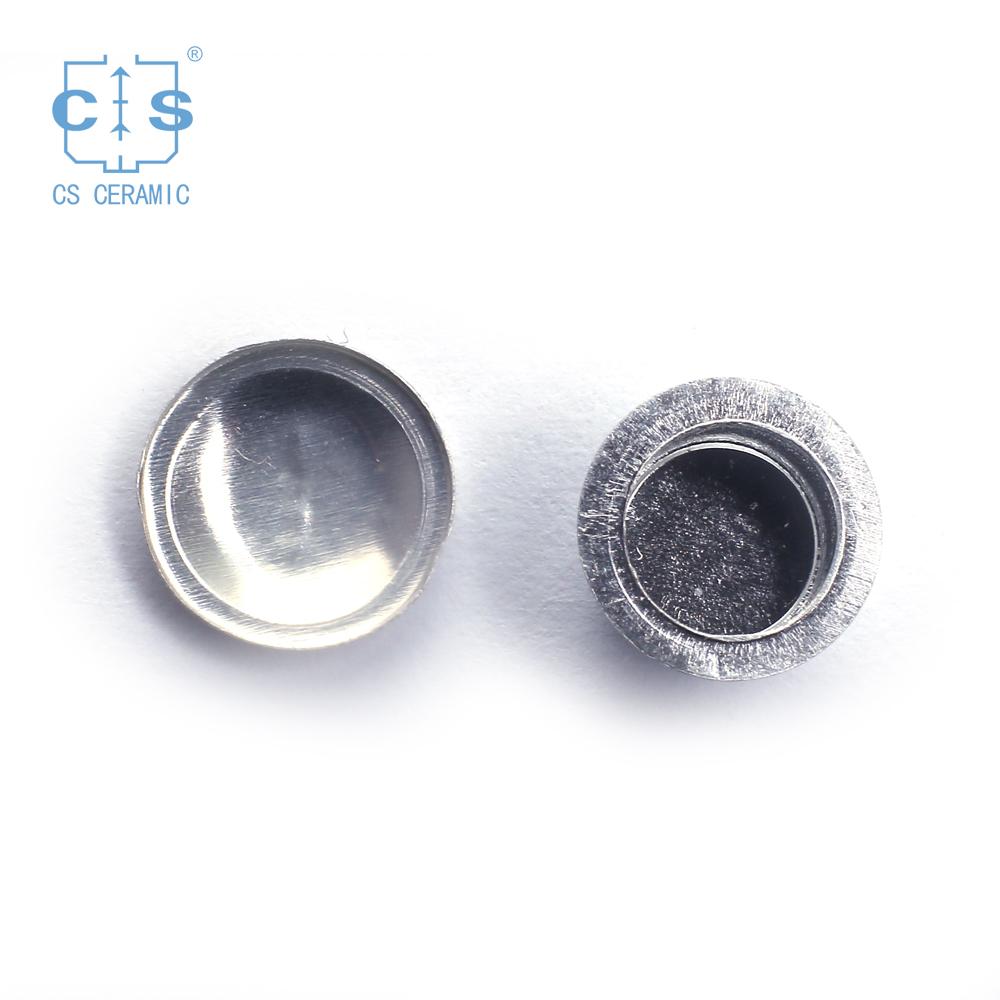

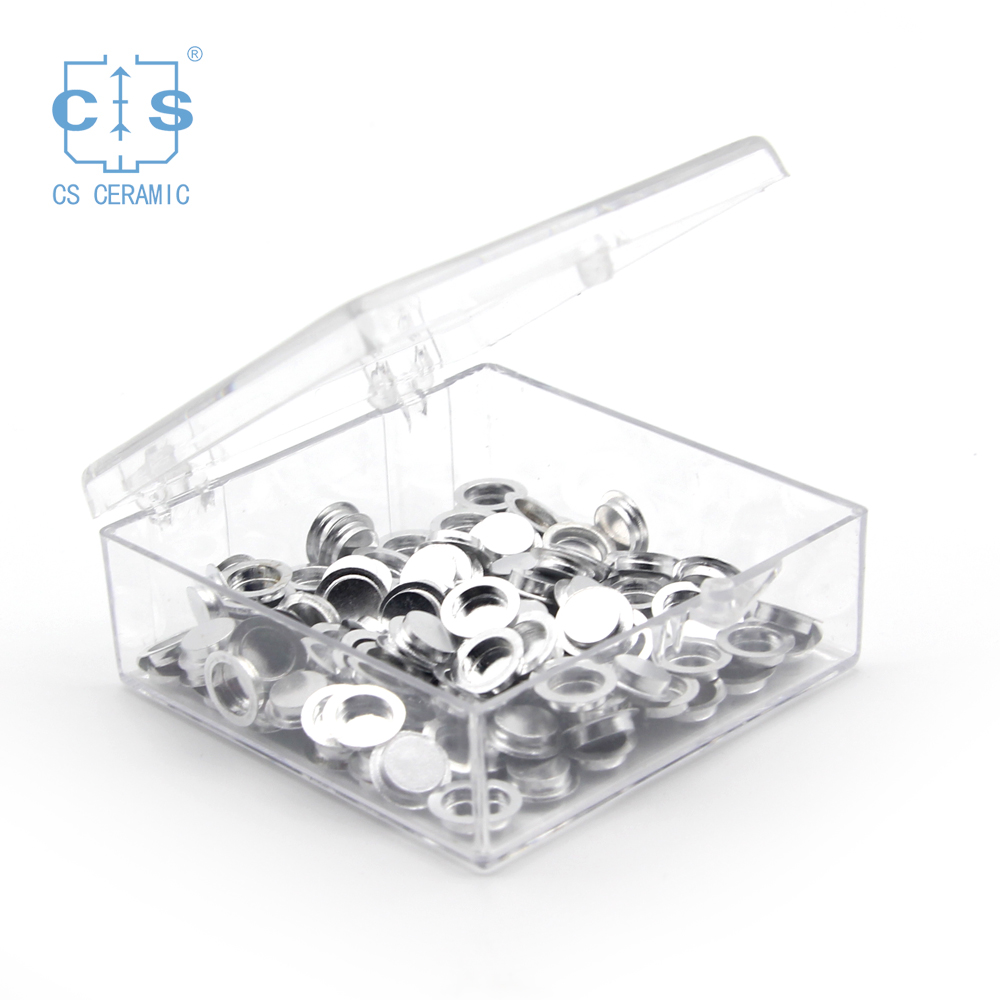

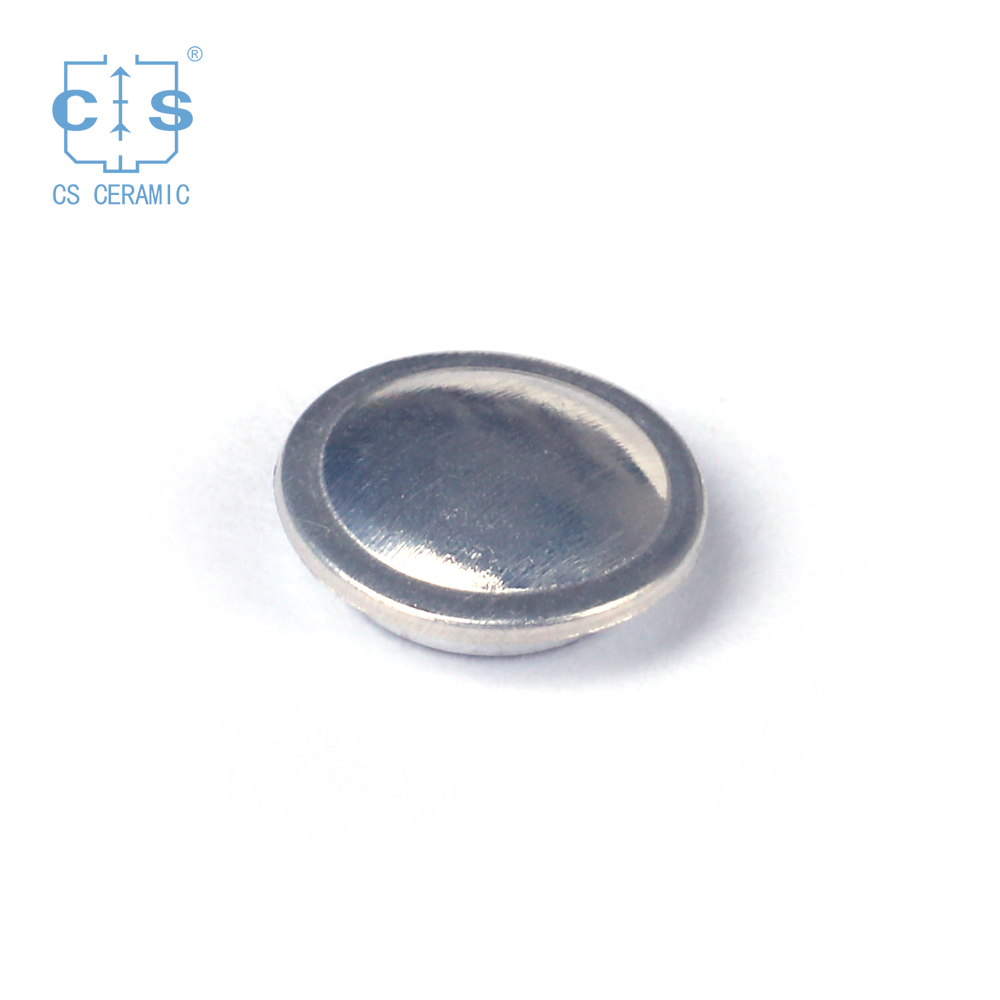

40μl Aluminum crucibles standard w/lid ME-00026763 for Mettler toledo (Sample pans)
Item info :
| Type | Sample pan /crucible with lid |
| Suitable for | Mettler DSC |
| Part NO | ME-00026763 |
| Volume μL | 40 μL |
| Pin | Without |
| Lid | With Standard lids（Three lid types can be combined with the 40 μL pans: standard lids, lids for piercing by the robot, and lids with a prepierced 50 μm hole ME-51140832.） |
| Material | Aluminum |
| Temperature range | Room temperature to 640℃，Maximum Pressure 0.2 MPa |
| QTY/PKG | 100SETS/BOX ; 400 SETS/BOX (Both available) |
| Matching press |
Crucible Sealing Press Equivalent To ME-119410 Die And Plunger A2 |
| Original | MADE IN CHINA |
Usage:
The Mettler 40μl crucible has the minimum signal time constant, especially when combined with helium gas.It is ideal for pressing film, sheet or powder samples into the bottom of the crucible.The gap between the crucible and the lid forms a naturally generated atmosphere. However, if a hole is drilled in the lid, the atmosphere can be freely exchanged. It is often used for DSC testing Crucible is the container of sample and plays the role of protecting DSC sensor from contact with sample.The crucible should generally be inert to the sample, that is, it should not react with the sample at all.
In most cases, aluminum is inert, but is corroded (dissolved) by sodium hydroxide and many acids.In some cases, metal samples will form a co-fusion metal with aluminum.
Solution: Heat the aluminum crucible in 400℃ air for 10min to strengthen the oxidation protective layer.Under pressure, aluminum crucible made of pure aluminum can be sealed by cold welding with special tablet press.The standard 40 L aluminium crucible with a lid, mettler-Tolido, is the most commonly used. Because the time constant of the light aluminium crucible is smaller and the separation of peaks can be improved, it is often used for testing thin films and powder samples, etc. However, this light crucible is not suitable for liquid samples, as the lid often extrudes the sample.
Notice :
To ensure heat transfer efficiency between sample and sensor, please select quality sample pan/crucible with suitable temperature range to conduct experiment, so to get the most accurate effect.
Quality sample pan and crucible is helpful to expand DSC application range. With more sample put in large sized sample pan/crucible to measure weak thermal effect, and to get better resolution, light sample pan/crucible with better thermal conductivity can be used.
Aluminum Sample Pans and Lids ME-00026763 for Mettler toledo(click to review the video)

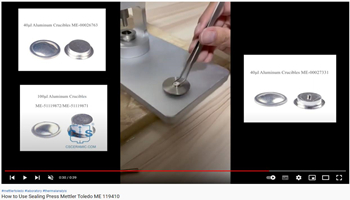

Recommended matching sealing press Mettler ME-119410 (click to review the video)
Size details:
OEM: All sizes can be customized and can be made into various complex shapes with high dimensional accuracy. Please clearly provide the height, bottom diameter, top diameter, and any special requirements. To speed up the quotation, please provide drawings.
70μl Alumina Crucibles Medium W/Lid ME-00024123 For Mettler Toledo TGA/Sample Robot
ME-00024123 DSC Alumina crucibles sample pans for Mettler TGA/sample robot measurements. Manufacturer for Mettler Toledo crucibles,sample pans and dsc consumables.
150μl Alumina sample pans crucibles w/lid ME-00024124 for Mettler Toledo
ME-00024124 Alumina crucibles Thermal analysis sample pans for Mettler DSC and SDTA measurements. Manufacturer for Mettler Toledo crucibles. Thermal analysis crucible consumable sample tray for thermal test .
30μl Alumina crucibles small w/lid ME-51140843 for Mettler Toledo (Sample pans)
ME-51140843 Alumina crucibles sample pans for Mettler DSC and SDTA measurements. Manufacturer for Mettler Toledo crucibles and sample pans. DSC analysis pan for Thermal analysis Analyzer.
900μl Alumina large sample pans crucibles w/lid equivalent to ME-51119960 for Mettler Toledo (Sample pans)
ME-51119960 Alumina crucibles sample pans for Mettler DSC and SDTA measurements. Manufacturer for Mettler Toledo crucibles and sample pans. DSC sample test trays for dsc measurement.
30μl Alumina crucible small equivalent to ME-51140843 crucible only for Mettler Toledo
Alumina crucibles sample pans for Mettler DSC and SDTA measurements. Manufacturer for Mettler Toledo crucibles and sample pans. Thermal analysis crucible consumables for dsc machine.
70μl Alumina crucibles equivalent to ME-00024123 crucible only for Mettler Toledo (Sample pans)
Small alumina crucible for Mettler DSC and SDTA measurements. Manufacturer for Mettler Toledo crucibles and sample pans. Al2O3 sample pan & DSC analysis pan for thermal analysis.
50μl Alumina crucible with lids D5.4*3.5mm for Mettler Toledo
Small alumina crucible for Mettler DSC and SDTA measurements. Manufacturer for Mettler Toledo crucibles and sample pans. Al2O3 sample pan & DSC analysis pan for thermal analysis.
