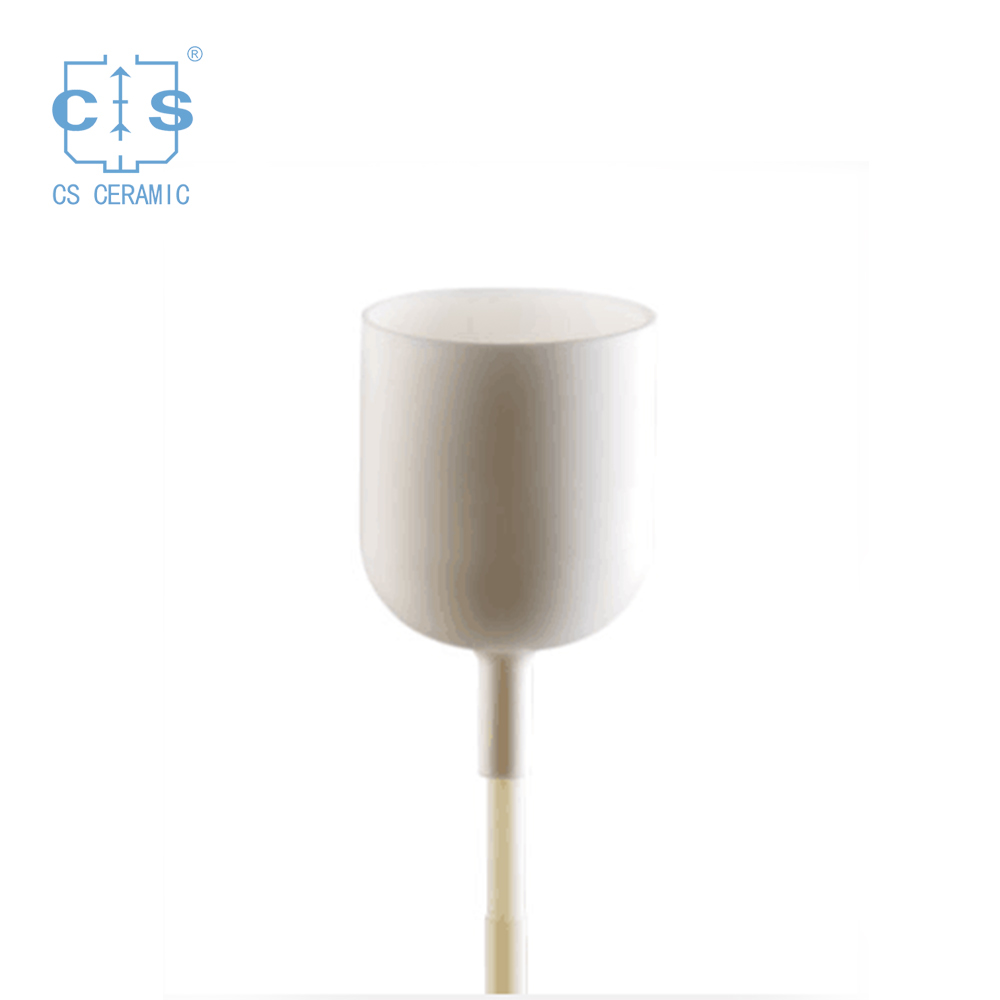

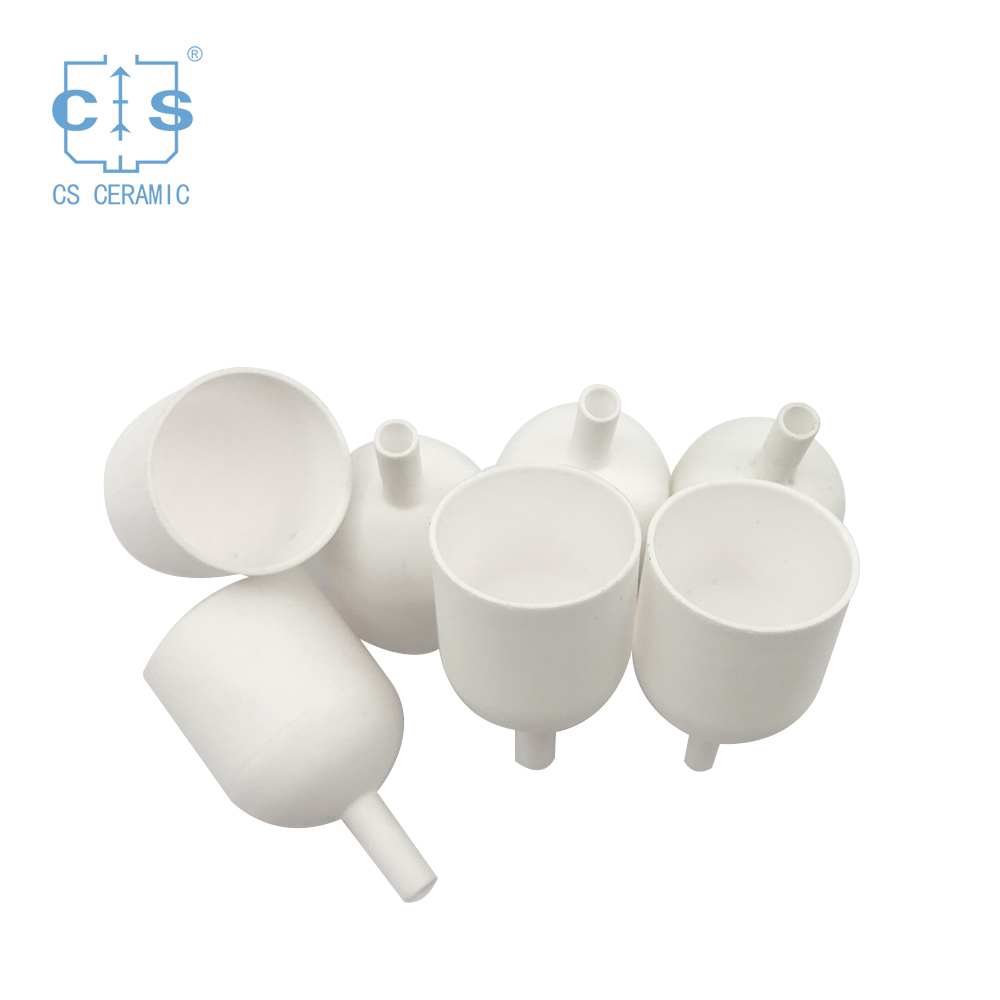

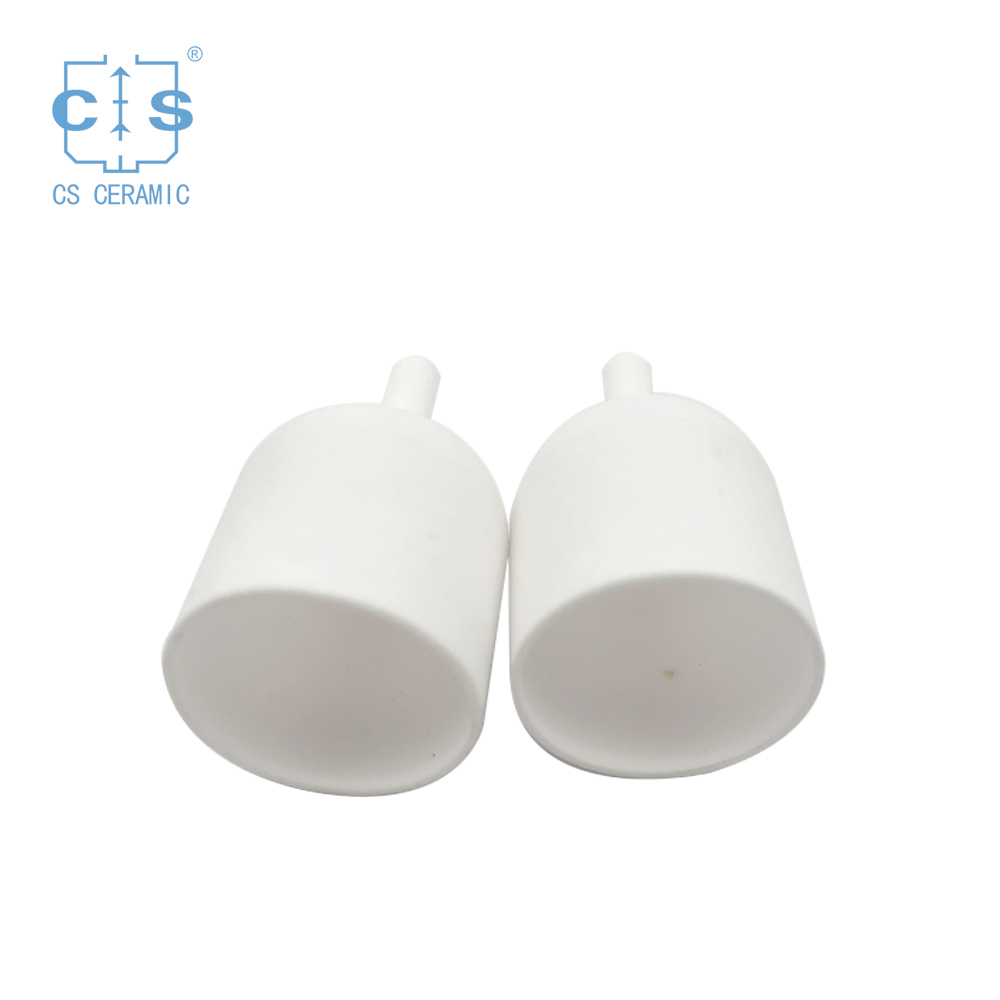

Netzsch TGA Alumina Crucibles Sample Pans

3.4ml Netzsch Alumina Crucibles TGA Sample Carrier GB445213 for Netzsch STA 449 F1/F3/F5 Jupiter

3.4ml Netzsch Alumina Crucibles TGA Sample Carrier GB445213 for Netzsch STA 449 F1/F3/F5 Jupiter

3.4ml Netzsch Alumina crucibles Special shape GB445213 for Netzsch STA 449 F1/F3/F5 Jupiter TGA measurements. Manufacturer for Netzsch crucibles and sample cups. Netzsch Instruments good alternative DSC sample pans.

item no. :
CS-NA-088
Suitable for : Netzsch STA 449 F1/F3/F5 Jupiter
Material : ceramic
Part NO : GB445213

contact now catalogue

description

3.4ml Netzsch Alumina Crucibles TGA Sample Carrier GB445213 for Netzsch STA 449 F1/F3/F5 Jupiter

Item info

Type	Sample pan /crucible
Suitable for	Netzsch STA449 F1/F3/F5
Part NO	Netzsch GB445213
Volume	3.4ml Max Temp 1700°C other size are available ： other size are available ： 0.53ml Ceramic crucible NGB811194 ; 0.9ml Ceramic crucible GB445215 , 4.2ml Ceramic crucible CS-NA-088-02 ， 5ml Ceramic crucible NGB809163 , 0.9 ml Highly Sintered Ceramic crucible NGB820039, 3.4ml Highly Sintered Ceramic crucible NGB820041, 5ml Highly Sintered Ceramic crucible NGB820037 , 10 ml Highly Sintered Ceramic crucible NGB820017
Lid	Without \| if need lid ,click here Alumina Lids For Volume 3.4ml Crucible GB445213 --CS-NA-088-3
Material	Alumina Ceramic other Material is available ： 3.4ml Fused Silica Crucible Equivalent To Netzsch NGB811507
Temperature range	Room temperature to 1600℃
QTY/PKG	10PCS/BOX ; 20PCS/BOX (Both available)
Brand	CS CERAMIC
Original	MADE IN CHINA

Usage

Netzsch Alumina(Aluminum oxide) sample pans are the crucibles that are normally used for DSC and TGA measurements.

Clean Methods

There sample pans (crucibles )can be reused. After mechanical cleaning, store them, if need be, in water(or possibly even in 10% hydrochloric acid ) because many salts are soluble in water. Oxides form chlorides in hydrochloric acid,which can then be removed by rinsing. After drying, heat the crucibles to red heat to ensure that no weight loss occurs when they are used.

Shipping

We do international shipping for clients.

Special offer

Most of our crucibles are produced to OEM order, please mark clearly height, bottom diameter, top diameter, wall thickness and any special requirements i.e. lips etc. To speed up quotations please supply a drawing and if appropriate, the name of the system in which they are to be used.
