item no. :
CS-THG-J10001Color :
BlackPort :
Shenzhen China, Express deliverylead date :
Within one monthMaterial : Silicon Carbide
Purity : 98.5%
Shape : Round
Original Country : Made in China

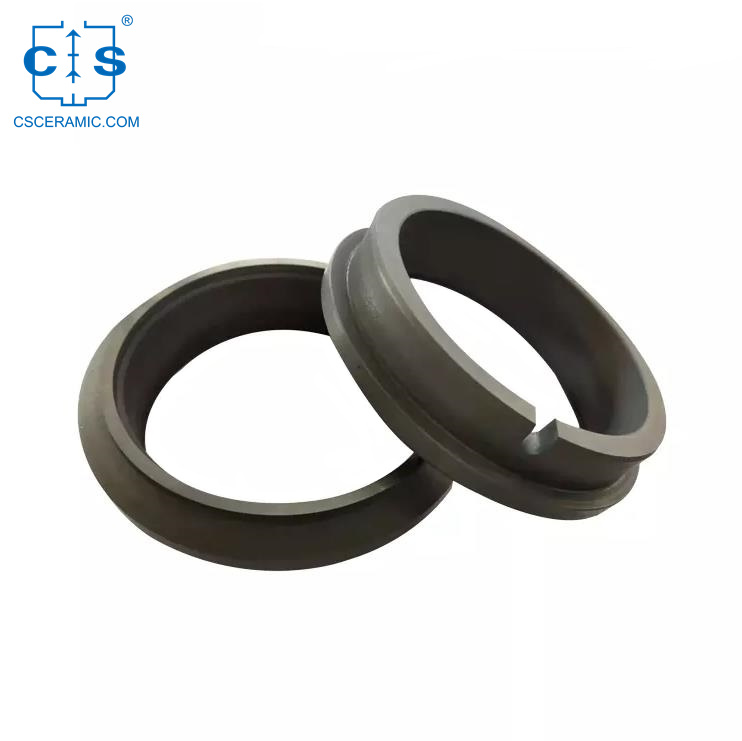

SiC Seal Rings Features
1.High temperature resistance:It can be used in high temperature environment (1300 ° C).
2.High hardness:High hardness, wear resistance, and good anti-corrosion performance.
3.High thermal conductivity:High thermal conductivity, which can reduce the temperature of the equipment.
4.High strength:Good strength, toughness and strength can be improved.
5.Good oxidation resistance:It can resist oxidation and is not easy to corrode.
6.Good thermal shock resistance:High thermal shock resistance, which can reduce the frequency of maintenance.
7.Low coefficient of thermal expansion:Low coefficient of thermal expansion, which can reduce the deformation of the equipment.
8.Easy to install:It is easy to install and maintain, and can be customized according to customer requirements.
Sic Ring Applications
1.Silicon carbide seal rings are used in a wide variety of applications, including pumps, valves, compressors, and mixers.
2.These rings are highly resistant to wear and corrosion, making them ideal for many applications.
3.They are also used in applications where high temperatures are present, such as in the oil and gas industry.
4.Silicon carbide seal rings can be used in a variety of shapes and sizes, including standard O-Rings, V-Rings, and T-Rings, as well as custom-made shapes and sizes.
5.They are also used in applications where a high degree of cleanliness is necessary, such as in medical and food processing equipment.
Item | Inch | OD(mm) | ID(mm) | Thickness | Height | Purity |
CS-THG-J10001 | 1-150 | 0.5-140 | 0.25-50 | 1-50 | 98.5 | |
CS-THG-J10002 | 25 | 15 | 5 | 15 | 98.5 | |
CS-THG-J10003 | 26 | 12 | 2 | 4 | 98.5 | |
CS-THG-J10004 | 0.750 | 31.60 | 20.49 | 5.56 | 11.11 | 98.5 |
CS-THG-J10005 | 0.875 | 34.77 | 23.66 | 5.56 | 11.11 | 98.5 |
CS-THG-J10006 | 1.000 | 37.95 | 26.95 | 5.50 | 12.70 | 98.5 |
CS-THG-J10007 | 1.125 | 41.12 | 29.92 | 5.60 | 12.70 | 98.5 |
CS-THG-J10008 | 1.250 | 47.47 | 33.30 | 7.09 | 12.70 | 98.5 |
CS-THG-J10009 | 1.375 | 50.65 | 36.40 | 7.13 | 12.70 | 98.5 |
CS-THG-J10010 | 1.500 | 53.82 | 39.57 | 7.13 | 12.70 | 98.5 |
CS-THG-J10011 | 1.625 | 57.00 | 42.66 | 7.17 | 12.70 | 98.5 |
CS-THG-J10012 | 1.750 | 60.17 | 46.03 | 7.07 | 12.70 | 98.5 |
CS-THG-J10013 | 1.875 | 63.35 | 49.20 | 7.08 | 12.70 | 98.5 |
CS-THG-J10014 | 2.000 | 66.52 | 52.38 | 7.07 | 12.70 | 98.5 |
CS-THG-J10015 | 2.125 | 69.70 | 55.86 | 6.92 | 14.90 | 98.5 |
CS-THG-J10016 | 2.250 | 72.87 | 59.03 | 6.92 | 14.90 | 98.5 |
CS-THG-J10017 | 2.375 | 76.05 | 62.21 | 6.92 | 14.90 | 98.5 |
CS-THG-J10018 | 2.500 | 79.22 | 65.38 | 6.92 | 15.88 | 98.5 |
CS-THG-J10019 | 2.625 | 82.40 | 68.63 | 6.89 | 15.88 | 98.5 |
CS-THG-J10020 | 2.750 | 85.57 | 71.81 | 6.88 | 15.88 | 98.5 |
CS-THG-J10021 | 2.875 | 88.75 | 74.98 | 6.89 | 15.88 | 98.5 |
CS-THG-J10022 | 3.000 | 91.92 | 78.16 | 6.88 | 15.88 | 98.5 |
CS-THG-J10023 | 3.125 | 95.10 | 81.30 | 6.90 | 15.88 | 98.5 |
CS-THG-J10024 | 3.250 | 98.27 | 84.51 | 6.88 | 15.88 | 98.5 |
CS-THG-J10025 | 3.375 | 101.45 | 87.68 | 6.89 | 15.88 | 98.5 |
CS-THG-J10026 | 3.500 | 104.62 | 90.86 | 6.88 | 17.46 | 98.5 |
CS-THG-J10027 | 3.625 | 107.80 | 94.16 | 6.82 | 17.46 | 98.5 |
CS-THG-J10028 | 3.750 | 114.15 | 97.33 | 8.41 | 17.46 | 98.5 |
CS-THG-J10029 | 3.875 | 117.32 | 100.21 | 8.56 | 17.46 | 98.5 |
CS-THG-J10030 | 4.000 | 120.20 | 103.68 | 8.26 | 17.46 | 98.5 |
1. Heat resistance: The temperature of the sealing surface shall not be lower than the temperature of the medium in the sealed container by more than 10°C.
2. Leakage: The leakage amount shall not be greater than 0.02 ml/min.
3. Pressure resistance: The sealing ring shall not deform and break when the pressure of the sealed container reaches the specified pressure.
4. Wear resistance: The wear amount of the sealing surface of the sealing ring shall not exceed 0.1 mm.
5. Corrosion resistance: The sealing ring shall not be corroded by the medium in the sealed container.
6. Hardness: The hardness of the sealing ring shall not be lower than HRC60.
OEM Service
1.Silicon carbide seal rings are a popular choice for OEMs because of their excellent performance in a variety of demanding applications.
2.They are made from high-performance materials that are resistant to thermal shock and abrasion.
3.Their superior wear resistance makes them ideal for use in high pressure, high temperature applications.
4.They are also highly resistant to corrosion and have excellent mechanical strength.
5.Silicon carbide seal rings are available in a variety of shapes, sizes, and configurations.
6.They can be customized to meet the specific requirements of your application.
To better ensure the safety of your goods,Professional, Environmentally friendly,Convenient and efficient packing services will be provided.
Why Choose Us
As a professional industrial ceramic supplier, we have a series of advantages that guarantee our market share in the
international trade market.
1.Reliable quality control, complete specifications, support customization of non-standard products.
2.Professional and committed service team.
3.Multiple protection of packaging, secure and reliable.
4.Highly efficient delivery channel, safe and rest-assured.
FAQ
1.Q: How are silicon carbide seal rings manufactured?
A: Silicon carbide seal rings are typically machined from a solid block of silicon carbide material. The individual shapes and sizes of the seal rings are cut, shaped, and polished to meet the exact specifications of each application.
2.Q: What types of industries use silicon carbide seal rings?
A: Silicon carbide seal rings are used in a variety of industries including aerospace, automotive, and medical. They are also used in applications that require high temperature, high wear resistance, and excellent chemical resistance.
