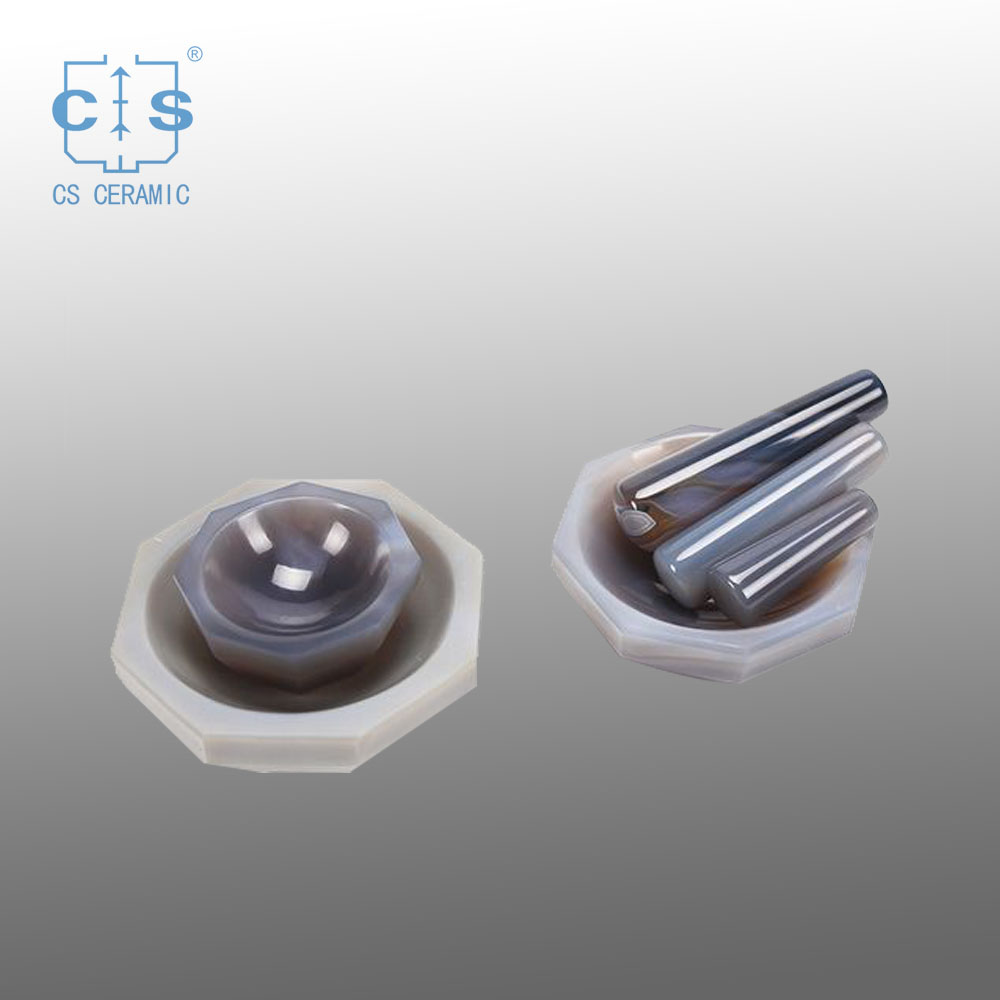

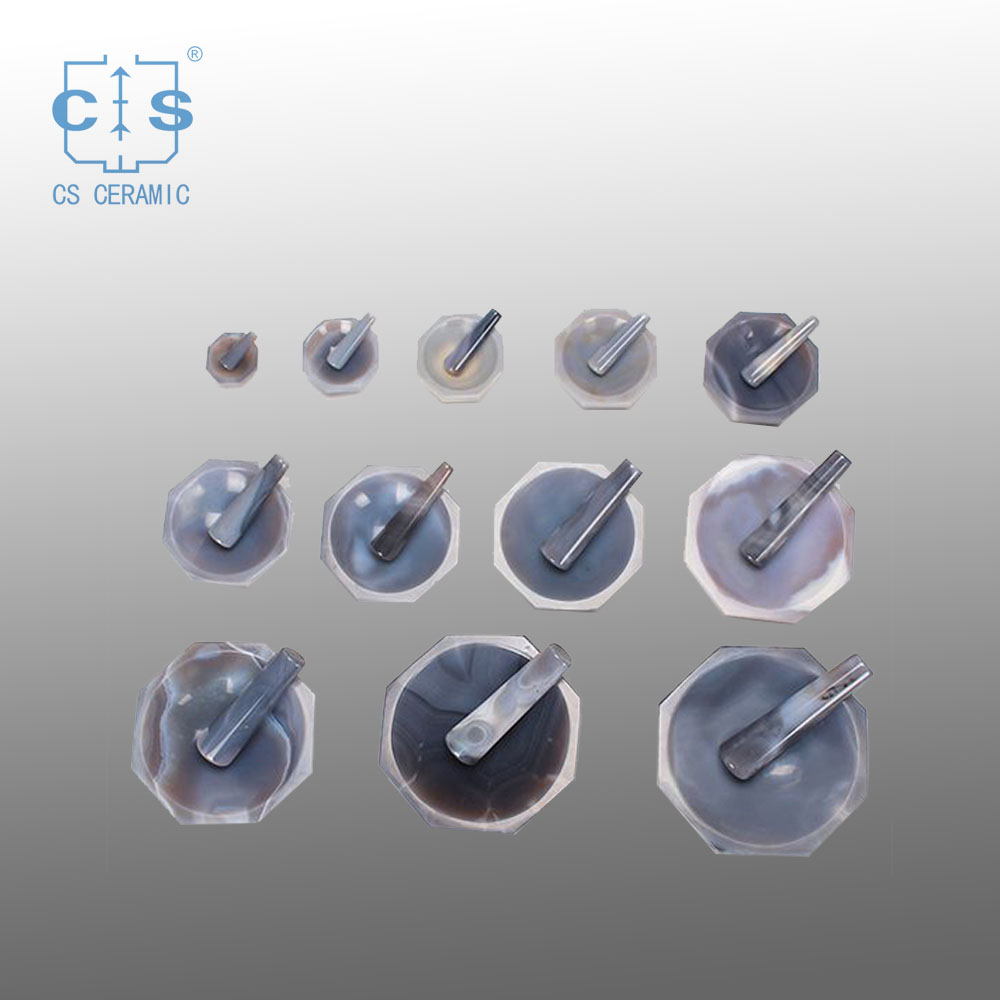

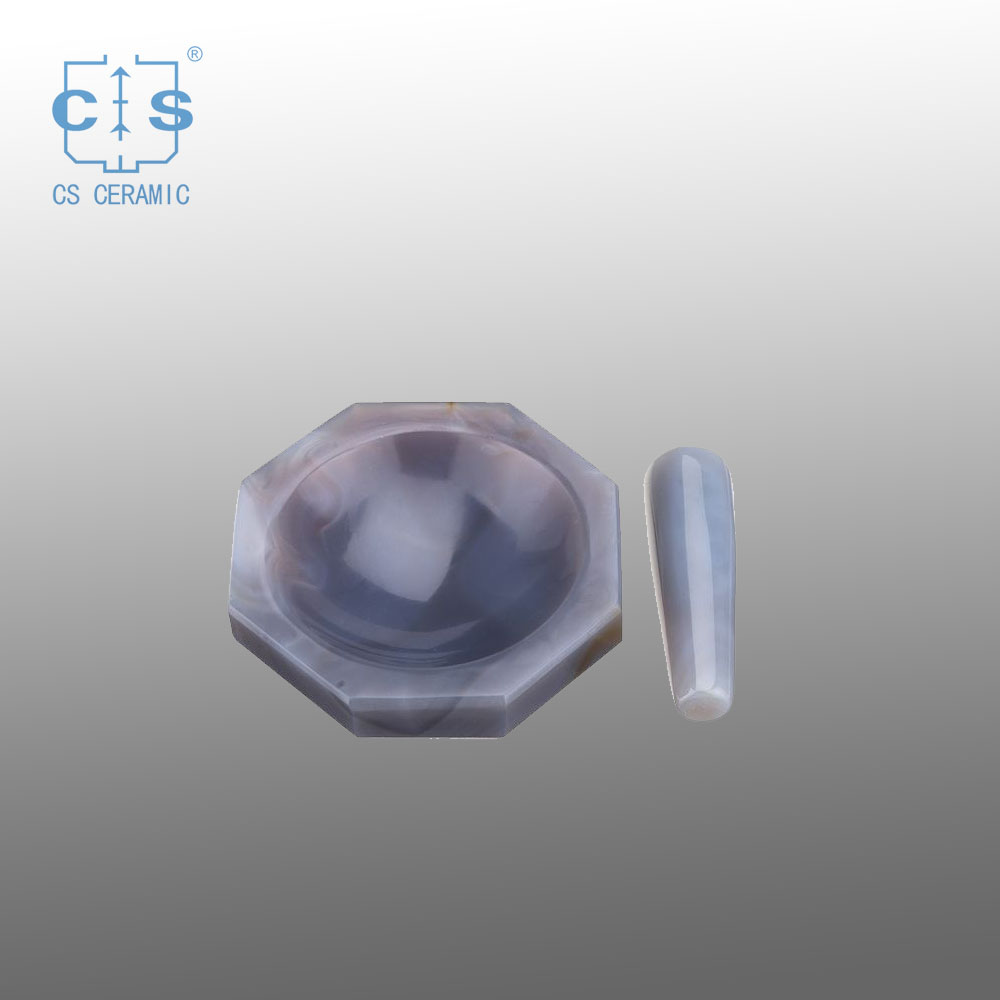

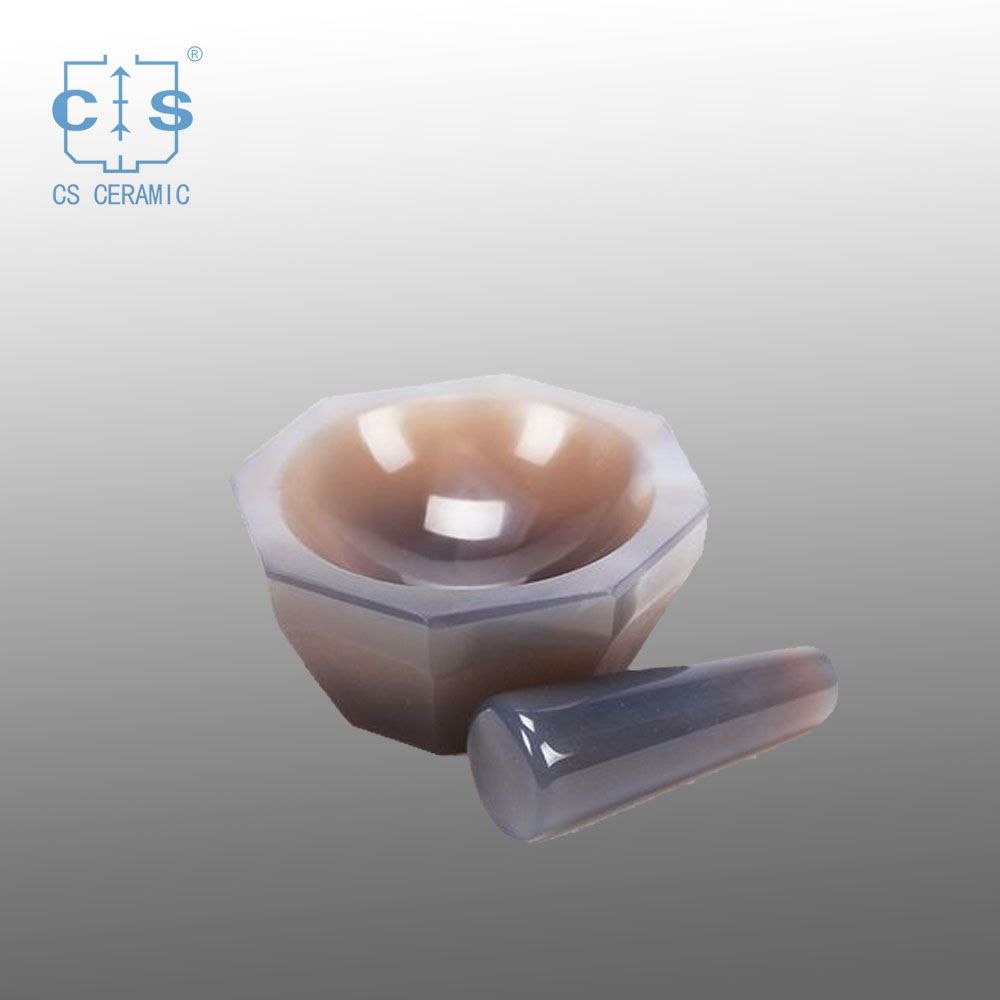

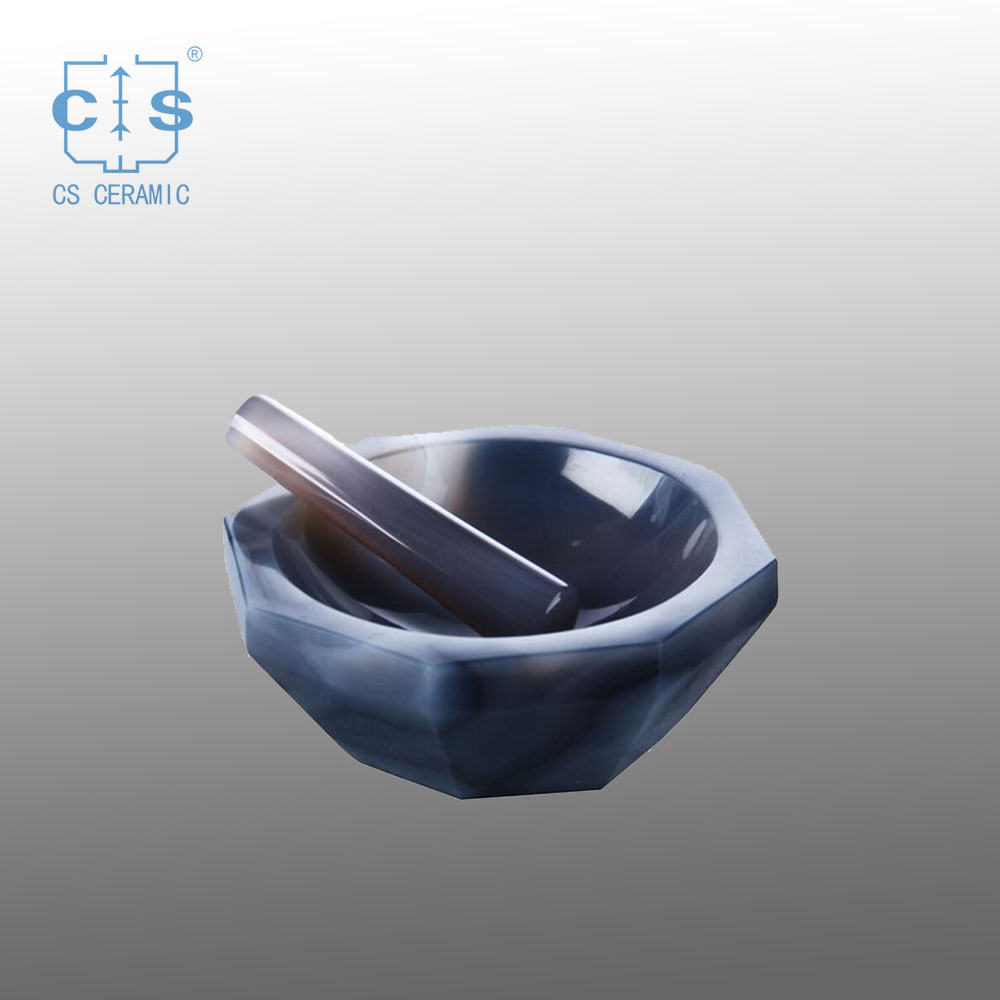

D40-270mm,High Quality Lab Agate Mortar & Pestle，It is widely used in chemical experiment, medical research, geological analysis, metallurgy and other fields
item no. :
CS-A-53Color :
White
Product Item: Natural Agate Mortar and Pestle
Application:
Agate mortar, agate mortar: mainly ground the solid or mix the solid evenly. It is suitable for grinding and analyzing experimental instruments for a small amount of samples inside the laboratory. Advanced grinding for pharmaceutical plants, high compressive strength, acid and alkali resistance. After the grinding, no chyle body material is mixed into the workpiece.It is widely used in chemical experiment, medical research, geological analysis, metallurgy and other fields
Feature:
1. The product is made of authentic natural agate stone as raw material.
2. Fine workmanship, beautiful appearance, no cracks, no impurities, strong resistance to wear.
3.The product gloss is high quality, strong corrosion resistance, can be used in acid abrasive materials.
Szie details :
Natural Agate mortar
Item NO.
OD(mm)
ID(mm)
Depth(mm)
Item NO.
OD(mm)
ID(mm)
Depth(mm)
CS-MN-01
40
30
13
CS-MN-12
160
150
50
CS-MN-02
60
50
15
CS-MN-13
190
170
55
CS-MN-03
70
60
18
CS-MN-14
200
180
58
CS-MN-04
80
70
20
CS-MN-15
210
190
60
CS-MN-05
90
80
23
CS-MN-16
220
200
63
CS-MN-06
100
90
25
CS-MN-17
230
210
65
CS-MN-07
110
100
27
CS-MN-18
240
220
68
CS-MN-08
120
110
30
CS-MN-19
250
230
70
CS-MN-09
130
120
33
CS-MN-20
260
240
73
CS-MN-10
140
130
37
CS-MN-21
270
250
75
CS-MN-11
150
140
40
Natural Agate Pestle
Item NO.
Length mm
Diameter mm
CS-MP-Φ4cm
40
18
CS-MP-Φ5cm
50
18
CS-MP-Φ6cm
60
19
CS-MP-Φ7cm
70
20
CS-MP-Φ8cm
80
22
CS-MP-Φ9cm
90
22
CS-MP-Φ10cm
100
24
CS-MP-Φ11cm
110
25
CS-MP-Φ12cm
120
27
CS-MP-Φ13cm
130
27
CS-MP-Φ14cm
140
27
CS-MP-Φ15cm
150
28
CS-MP-Φ16cm
160
30
CS-MP-Φ17cm
170
30
CS-MP-Φ18cm
180
32
CS-MP-Φ19cm
190
35
CS-MP-Φ20cm
200
38
Technical parameters：
| Technical parameters of agate mortar: | ||
| Composition | SiO2 | MgO/CaO/Mn2O3 |
| wt% | 97.26 | 2.74 |
Notes for using agate mortar:
1. Do not make it contact with fluoric acid.
2. Do not heat it up or dry it in oven.
3. In case of large lump or crystalline sample, it should be cracked outside and then put into agate mortar for grinding.
4. Mortar should be washed with water after using. If necessary, it can be washed with diluted hydrochloric acid first and then with water. If it is still not clean, add a little salt and grind it for some time, then pour it out and wash the mortar again. If necessary, sea sand can be used instead of salt to clean.
5. For objects with high hardness and coarse granularity, it would be better not to grind them in agate mortar to not scratch the surface.
6. When grind sample, the mortar should be placed on an object that is not easy to slide and the pestle should be kept vertical. Large pieces of solid can only be crushed, intead of mashing by pestle, otherwise the mortar, pestle will damage,or solid will splash out. Explosive substances can only be crushed lightly without grinding.When grind substances those are corrosive to skin, thick paper or plastic sheets should be placed on the mortar, and perforate the central of the sheet, insert pestle into the hole and grind the sample. Mass of solid added into the mortar shall not exceed 1/3 of its volume.
Shipping : We do international shipping .
Related product recommendation：

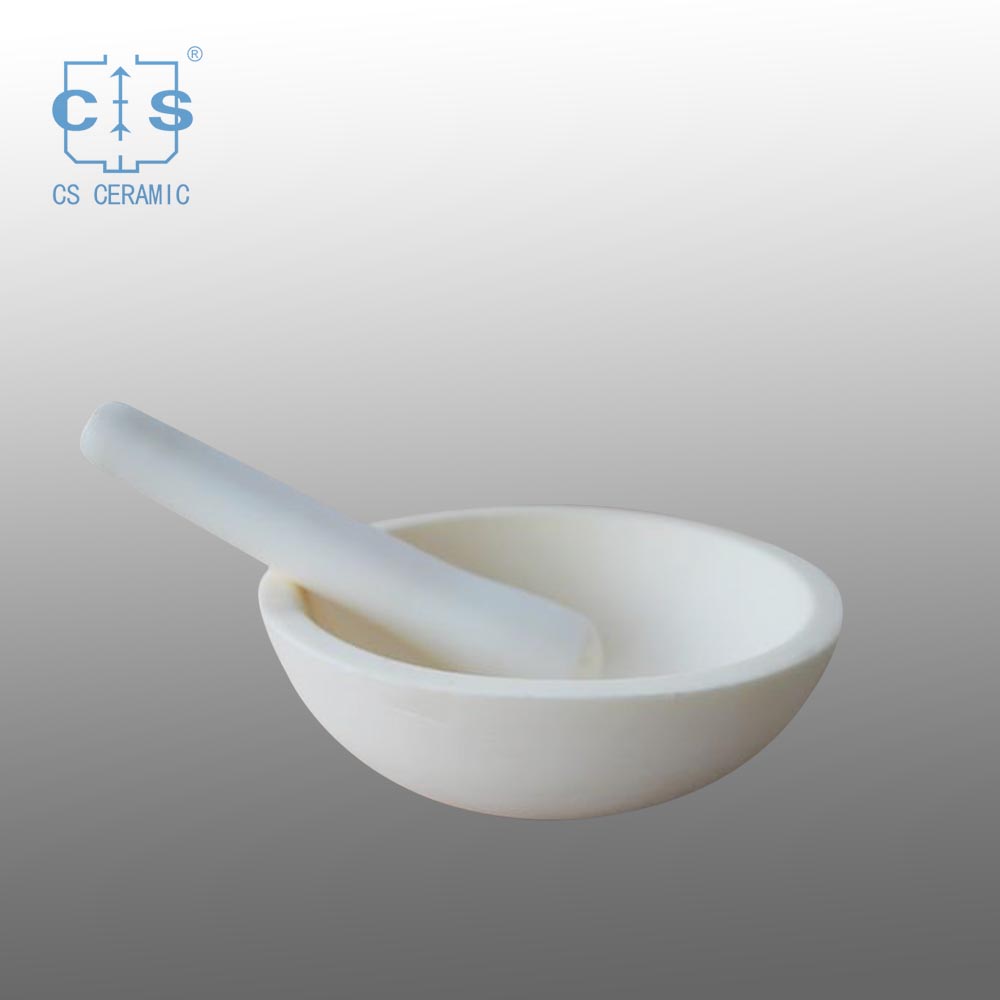

Alumina Ceramic Mortar And Pestle

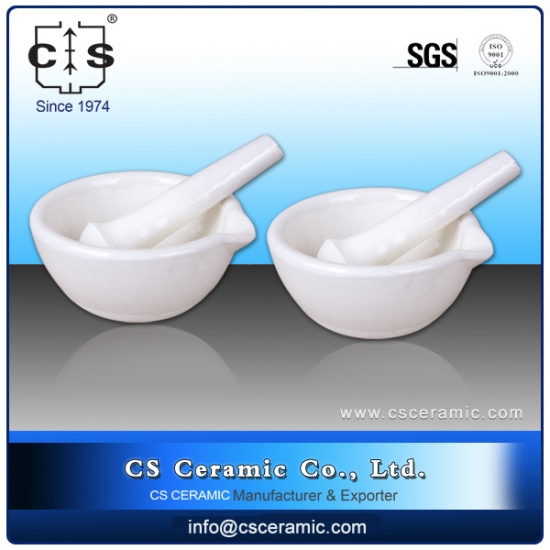

Laboratory Ceramic Porcelain Mortar and Pestle
