item no. :
CS-TGT-163Color :
White99.5% 99.7% 99%
Material : Alumina ceramic
Length : 5mm--1250mm
Shape : One hole
Size : OEM
1. Alumina tubes with low coefficient of thermal expansion of 10.3 x 10-6/K, ideal for use thermal stability in applications.
2. Alumina tubes have a low thermal conductivity of approximately 25 W/mK
3. Alumina tubes with high tensile strength and a modulus of elasticity of up to 200 GPa.
4. Alumina tubes resistance to corrosion and chemical attack, making them ideal for use in harsh environments.
5. Alumina tubes are non-toxic and do not release any hazardous substances, making them ideal for use in medical and food-grade applications.
6. High temperature resistance, 1600℃ in long use,1800℃ in short use (Al2O3≥99%).

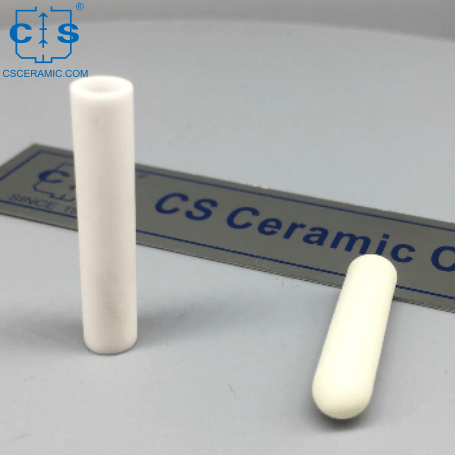

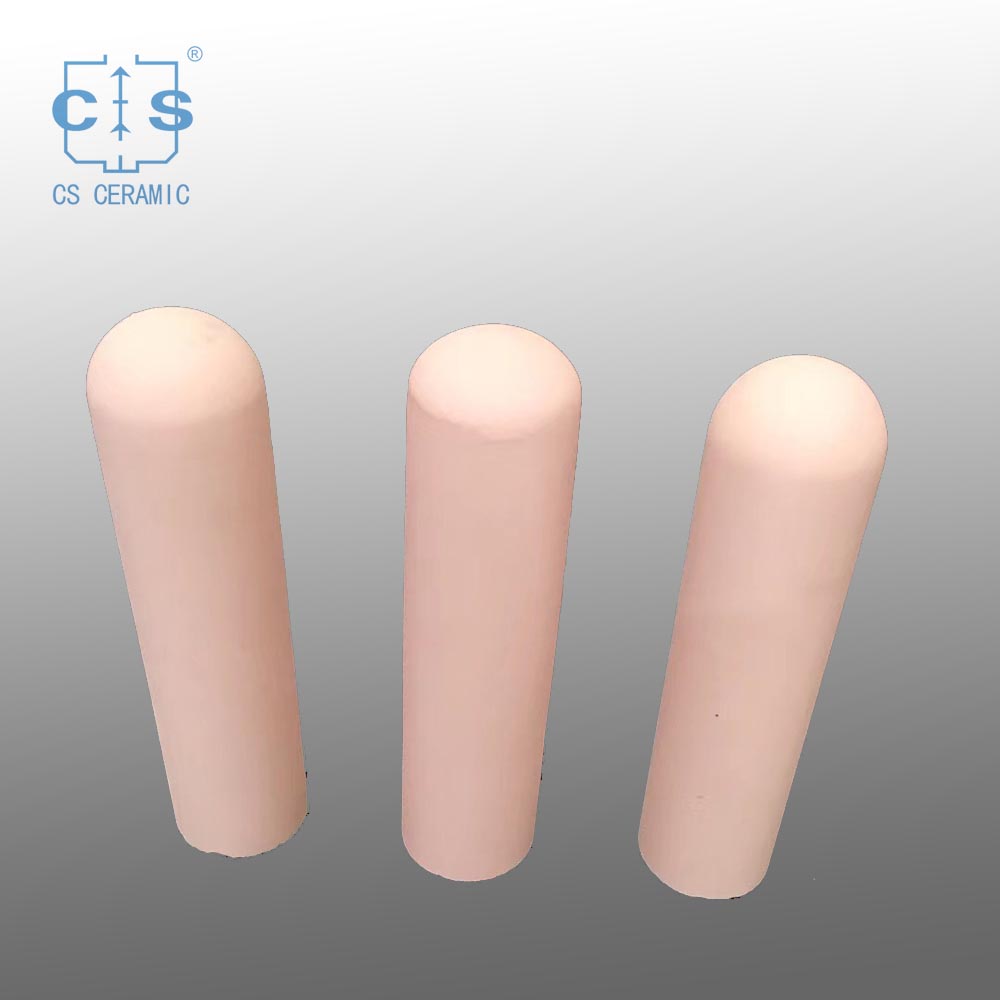

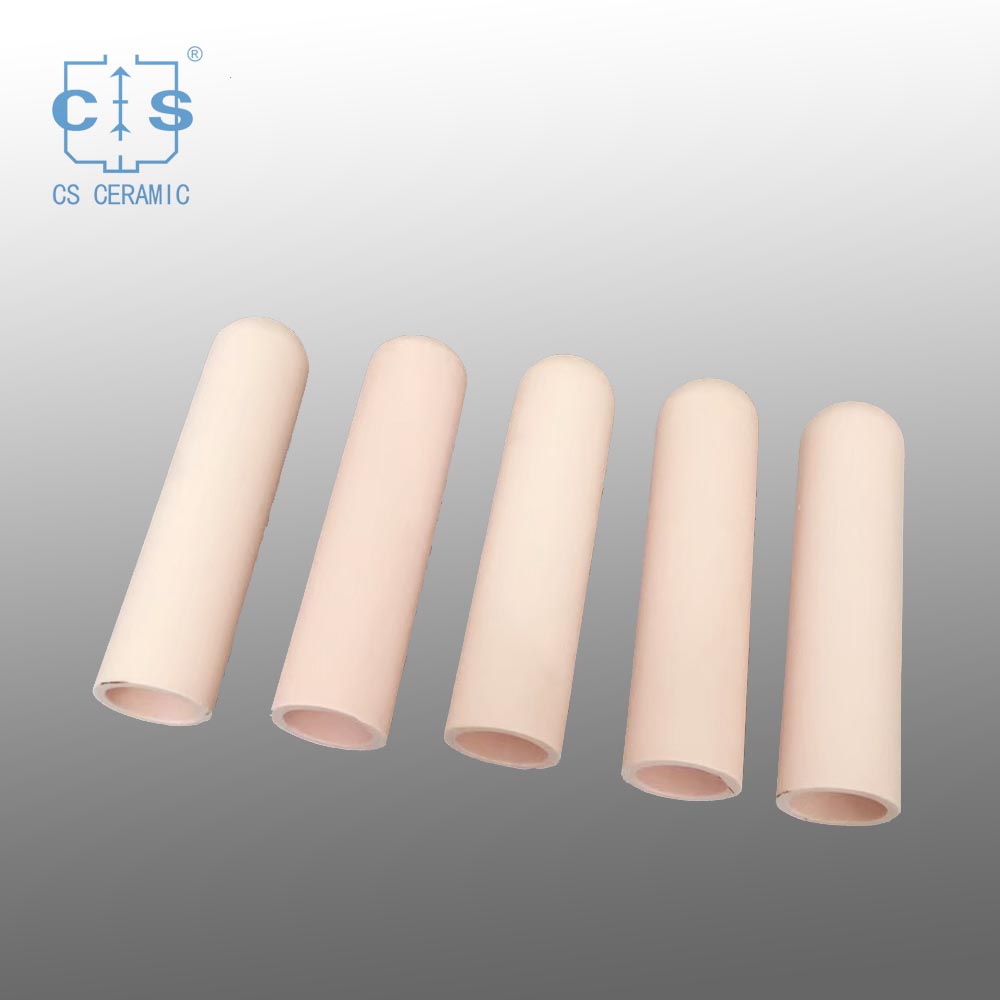

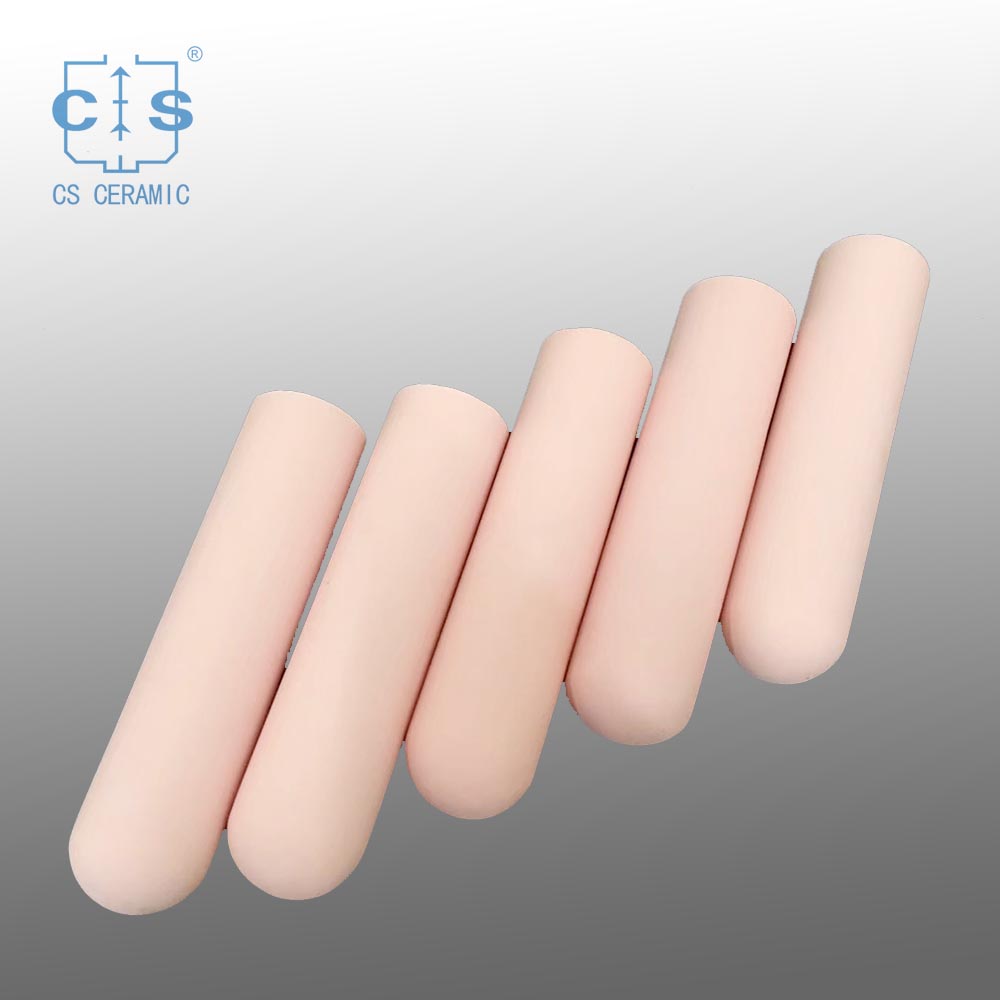

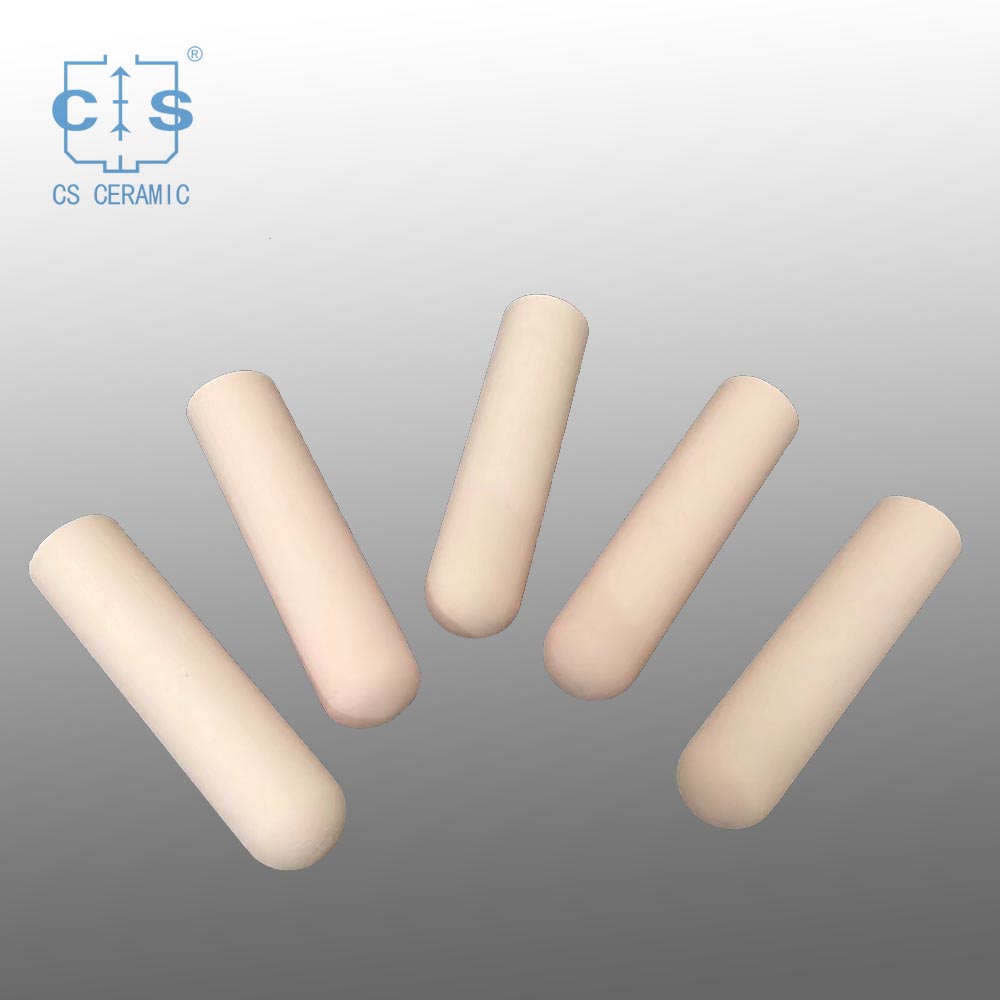

1. Laboratory TGA alumina ceramic tubes are high-quality, durable tubes designed for use in laboratory Thermal Gravimetric Analysis (TGA) systems.
2. These tubes are made of robust alumina ceramic materials that can withstand extreme temperatures and provide reliable results.
3. They are lightweight, easy to handle, and come in a variety of sizes to meet the needs of any laboratory.

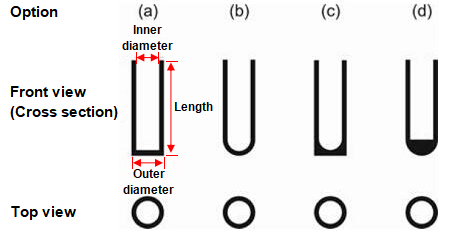

Alumina Tube (One side open) | ||||||||
Item NO. |
Outer diameter*
Inner diameter
(mm)
|
Length & Purity | Item NO. |
Outer diameter*
Inner diameter
(mm)
|
Length & Purity | Item NO. |
Outer diameter*
Inner diameter
(mm)
|
Length & Purity |
CS-AT-047 | 2.0*1.0 |
L≤1500mm
Al2O3=99.5%
|
CS-AT-066 | 19.05*14.3 |
L≤2500mm
Al2O3=95%
Al2O3=99%
Al2O3=99.5%
|
CS-AT-10240 | 32*26 |
20≤L≤2000
Al2O3=99%
|
CS-AT-048 | 3.0*2.0 | CS-AT-061 | 20.0*15.0 | CS-AT-10241 | 32*27 | |||
CS-AT-049 | 4.0*2.5 | CS-AT-062 | 22.23*15.88 | CS-AT-10242 | 33*28 | |||
CS-AT-050 | 5.0*3.0 | CS-AT-063 | 23.83*17.48 | CS-AT-10243 | 34*18 | |||
CS-AT-051 | 6.0*3.5 | CS-AT-064 | 25*18.8 | CS-AT-10244 | 34*22 | |||
CS-AT-052 | 6.35*3.96 |
L≤2500mm
Al2O3=95%
Al2O3=99%
Al2O3=99.5%
|
CS-AT-065 | 25.4*19.05 | CS-AT-10245 | 34*23 | ||
CS-AT-053 | 7.95*4.78 | CS-AT-066 | 26.0*20.0 | CS-AT-10246 | 34*30 | |||
CS-AT-054 | 8.0*5.5 | CS-AT-067 | 28.0*22.0 | CS-AT-10247 | 35*27 | |||
CS-AT-055 | 9.53*6.35 | CS-AT-068 | 30.0*23.0 | CS-AT-10248 | 35*29.5 | |||
CS-AT-056 | 10.0*6.0 | CS-AT-10230 | 30*15 |
20≤L≤2000
Al2O3=99%
|
CS-AT-10249 | 36*30 | ||
CS-AT-057 | 10.0*7.0 | CS-AT-10231 | 30*20 | CS-AT-10250 | 36*31 | |||
CS-AT-058 | 11.13*7.95 | CS-AT-10232 | 30*21 | CS-AT-10251 | 37*29 | |||
CS-AT-059 | 12.0*8.0 | CS-AT-10233 | 30*22 | CS-AT-10252 | 37*31.5 | |||
CS-AT-060 | 12.7*8.9 | CS-AT-10234 | 30*24 | CS-AT-10253 | 37*32 | |||
CS-AT-061 | 14.0*10.0 | CS-AT-10235 | 30*26 | CS-AT-10254 | 38*31 | |||
CS-AT-062 | 15.0*10.0 | CS-AT-10236 | 31*23 | CS-AT-10255 | 45*38.5 | |||
CS-AT-063 | 15.0*11.0 | CS-AT-10237 | 31*25 | CS-AT-10256 | 46*38.5 | |||
CS-AT-064 | 16.0*12.0 | CS-AT-10238 | 31*26 | CS-AT-10257 | 60*30 | 20≤L≤1000 | ||
CS-AT-065 | 17.48*12.7 | CS-AT-10239 | 31*27 |
|
1. They can be used in laboratory exhaust systems to reduce noise levels and improve ventilation efficiency.
2. Laboratory TGA alumina tubes can be used as a substrate for microelectronic devices, such as semiconductors, due to their low thermal expansion and high electrical insulation properties.
3. They can be used in laboratory burners to increase the efficiency of the combustion process and reduce the risk of fire.
4. They can be used as a support structure for laboratory experiments, such as chemical reactions, due to their high temperature resistance and stability.
5. Laboratory TGA ceramic tubes can be used as a protective barrier against corrosive substances in laboratory environments.
Item | Test Condition | 95% Al2O3 | 99% Al2O3 | 99.5% Al2O3 | ||
Physical properties | Density | g/cm3 | >3.6 | 3.89 | 3.96 | |
Moisture absorption | % | 0 | 0 | 0 | ||
Mechanical properties | ROHS Hardness | ≥85 | ≥89 | ≥89 | ||
Flexural strength | psiX103 | 20℃ | 358 | 550 | 550 | |
Compressive strength | psiX103 | 20℃ | 2068(300) | 2600(377) | 2600(377) | |
Fracture toughness | Mpa.m3/2 | K(l c) | 4.3 | 5.6 | 6 | |
Thermal properties | Maximum use temperature | ℃ | 1450 | 1600 | 1650 | |
Thermal expansion coefficient | 1X10-6/℃ | (25-1000℃) | 7.6 | 7.9 | 8.2 | |
Thermal shock resistance | ℃ | Tc | 250 | 200 | 200 | |
Thermal conductivity | w/mok | 20℃ | 16 | 30 | 30.4 | |
Electrical properties | Volume resistivity | Ohm/cm2 | 100℃ | >1013 | >1014 | >1014 |
Dielectric breakdown strength | KV/mm | 8.7(220) | 8.7(220) | 8.7(220) | ||
Dielectric constant | (E) | 1MHz25℃ | 9 | 9.7 | 9.7 | |
Dielectric constant (100MHz) | (E) | 9.5 |
Q1. What information should we supply to get a quote?
Please offer the specification of ceramic tube for furnace, such as shape, dimension, quantity, application etc.
Q2: What are the benefits of using laboratory TGA alumina ceramic tubes?
Laboratory TGA alumina ceramic tubes offer high temperature accuracy and repeatability, as well as excellent thermal shock resistance. They are also durable, non-reactive, and can be used to measure a wide range of temperatures.
Q3: How are laboratory TGA alumina ceramic tubes used?
Laboratory TGA alumina ceramic tubes are typically used in a TGA experiment to measure the weight change of a sample when exposed to different temperatures over time. The sample is placed inside the tube, which is then sealed and heated. The weight change is then measured and recorded in the laboratory’s data log.
Q4: What are the advantages of laboratory TGA alumina ceramic tubes over other laboratory TGA materials?
Laboratory TGA alumina ceramic tubes offer a number of advantages over other TGA materials, including higher temperature accuracy and repeatability, excellent thermal shock resistance, and durability. They are also non-reactive, making them ideal for use in sensitive experiments.
1. Begin by vacuuming the outside of the tube to remove any debris or dust.
2. Use a mild detergent and scrub the tube with a soft cloth or brush.
3. Use a mild abrasive or a toothbrush to scrub the inside of the tube.
4. Rinse the inside and outside of the tube with warm water and a soft cloth.
5. Use a clean, lint-free cloth to dry it.
1. Visual inspection of the tube for any signs of damage or irregularities.
2. Measurement of the length, width, and thickness of the tube to check for accuracy.
3. Checking for any leaks or pinhole defects in the tube.
4. Testing for proper adhesion of the end cap to the tube.
5. Verification of the material and chemical composition of the tube.
