Read Moreitem no. :
CS-DHP-G001Color :
WhitePort :
Any ports of Chinalead date :
1-7 daysPurity : 99.99%
Material : Boron nitride
Original Country : China

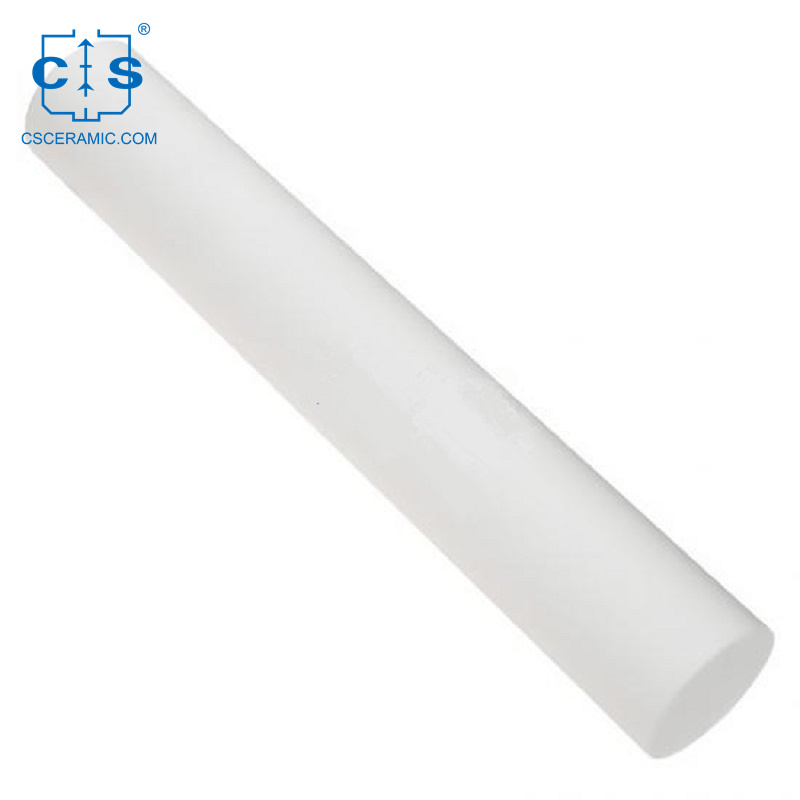

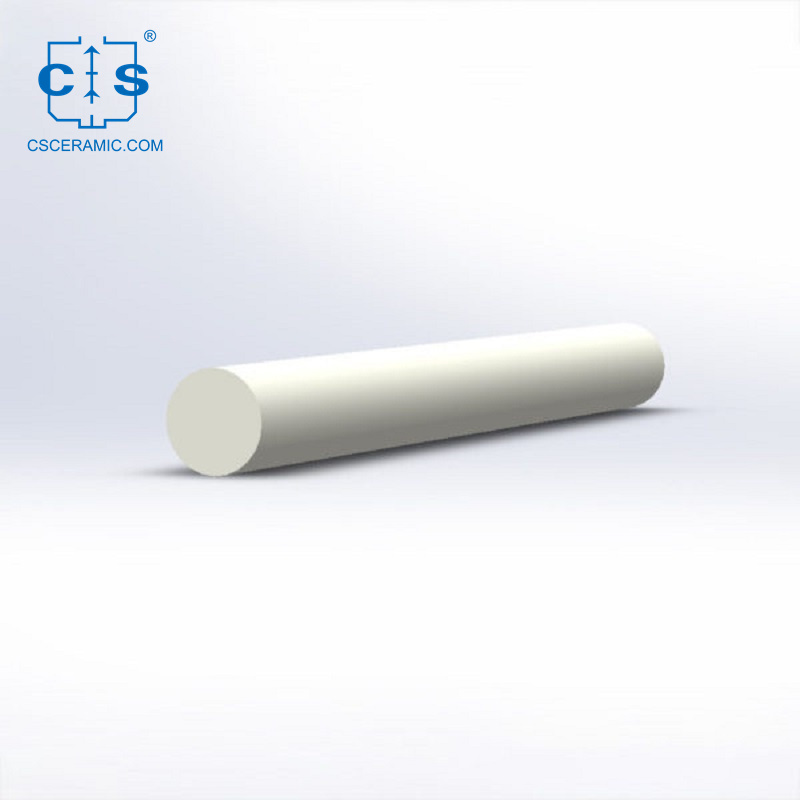

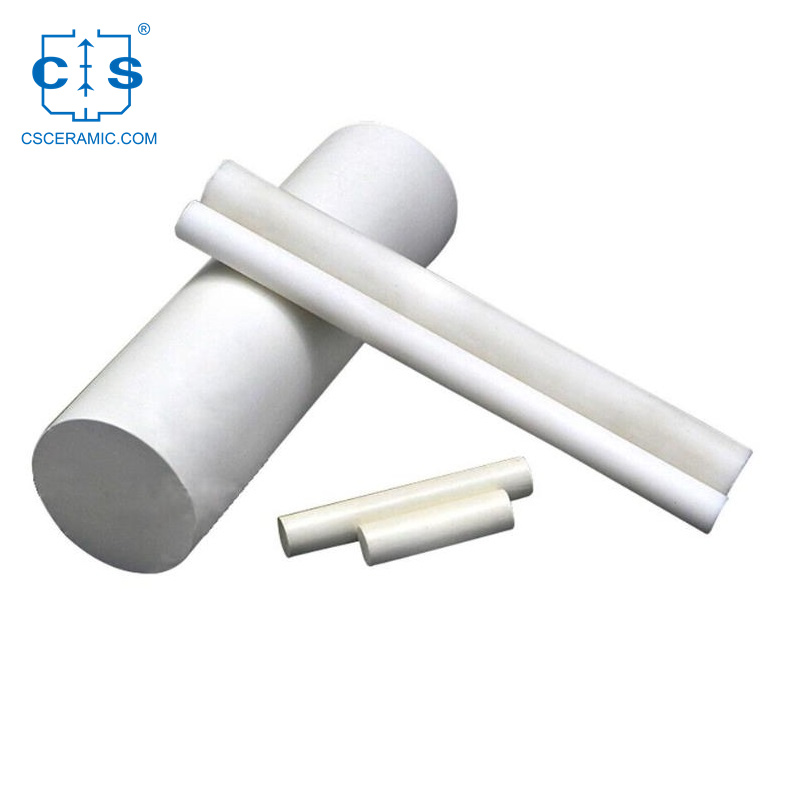

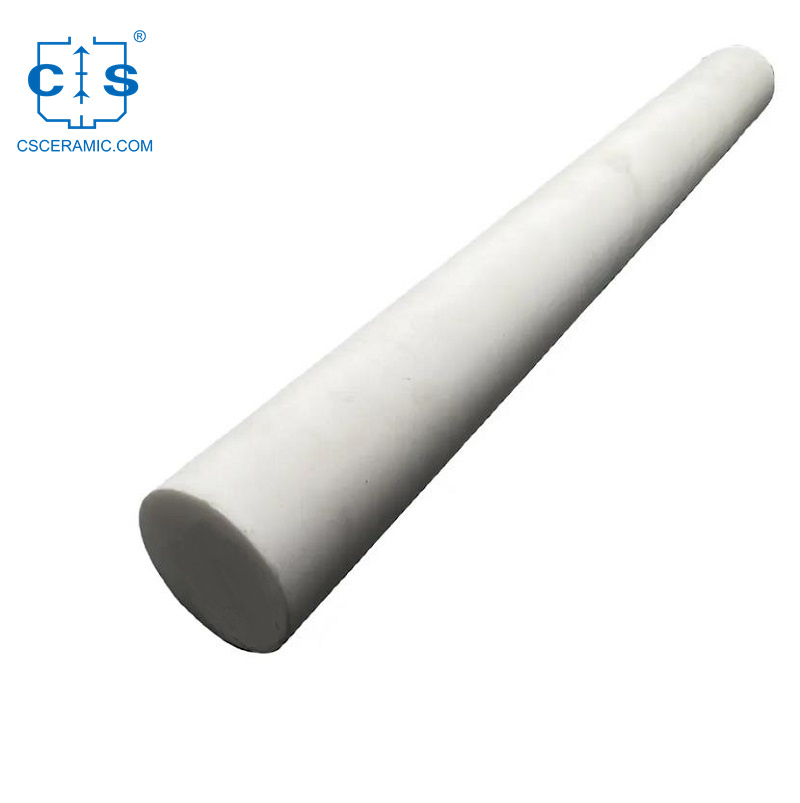

Boron Nitride Rods Application
Boron Nitride ceramic rods can be used in a wide variety of applications, from the production of high-temperature insulation systems to the manufacture of semiconductor wafers. The unique properties of boron nitride make it ideal for a variety of applications in the electronic, aerospace, and automotive industries.
1. High-temperature insulation systems: Boron nitride ceramic rods can be used in high-temperature insulation systems, such as those used in aircraft and spacecraft, as well as in nuclear reactors. The ceramic rods provide thermal insulation and strength, and can withstand extreme temperatures.
2. Semiconductor wafer manufacturing: Boron nitride ceramic rods are used in the manufacture of semiconductor wafers. The rods are used to form the substrate on which semiconductor components are built.
3. Aerospace applications: Boron nitride ceramic rods are used in the aerospace industry for a variety of applications. They can be used to produce high-temperature insulation systems, as well as to form components in aircraft and spacecraft.
4. Automotive applications: Boron nitride ceramic rods are used in a variety of automotive applications, such as brake systems, engine components, and transmissions. The ceramic rods provide strength and thermal insulation, making them ideal for automotive applications.
BN Metarials Properties
Grade | BN99 | CABN | ALBN | ZSBN | ZABN | SBN |
Compositions | BN>98.5% | BN>97.5% | AlN+BN | ZrO2+BN | ZrO2+AlN+BN | SiC+BN |
Binder | B2O3 | CaB2O3 | AlBO3 | B2O3 | AlBO3 | AlBO3 |
Density(g/cm3) | 1.95~2.0 | 2.0~2.1 | 2.6 | 2.9~3.0 | 3.2~3.3 | 2.4~2.6 |
25℃ Volume Resistivity(Ω·cm) | >1014 | >1013 | >1014 | >1012 | >1012 | >1012 |
Max. Service Temp. (℃) | ||||||
Oxygen | 900 | 900 | 900 | 1000 | 900 | 900 |
Inert Gas | 2400 | 2400 | 2100 | 1800 | 1800 | 1700 |
High Vacuum | 2200 | 2200 | 1900 | 1800 | 1800 | 1700 |
Three-point | 30 | 70 | 130 | 120 | 130 | 91 |
Flexural Strength(Mpa) | ||||||
Compressive Strength(Mpa) | 100 | 100 | 250 | 280 | 300 | 300 |
Coefficient of Thermal Expansion | 1.5 | 2 | 4.5 | 5 | 5 | 4 |
25~1000℃(10-6/K) | ||||||
Thermal Conductivity(W/mK) | 15 | 20 | 50 | 20 | 40 | 40 |
Boron nitride rods specification
Item
Dia / mm
Length / mm
Purity
CS-DHP-G001
3
100mmmm/200mm/500mm
99%
CS-DHP-G002
4
100mmmm/200mm/500mm
99%
CS-DHP-G003
4.8
100mmmm/200mm/500mm
99%
CS-DHP-G004
5
100mmmm/200mm/500mm
99%
CS-DHP-G005
10
100mmmm/200mm/500mm
99%
CS-DHP-G006
10
100mmmm/200mm/500mm
99%
CS-DHP-G007
12
100mmmm/200mm/500mm
99%
CS-DHP-G008
18
100mmmm/200mm/500mm
99%
CS-DHP-G009
20
100mmmm/200mm/500mm
99%
BN Rods Test Standards
1. Appearance inspection: The appearance of boron nitride ceramic rods should be even in color and free of defects, and the surface should be smooth and glossy.
2. Size inspection: The length, diameter and tolerance of boron nitride ceramic rods should meet the requirements of drawings or contracts.
3. Density test: The density of boron nitride ceramic rods should meet the requirements of drawings or contracts.
4. Hardness test: The hardness of boron nitride ceramic rods should meet the requirements of drawings or contracts.
5. Impact test: The impact strength of boron nitride ceramic rods should meet the requirements of drawings or contracts.
6. Thermal shock resistance test: The thermal shock resistance of boron nitride ceramic rods should meet the requirements of drawings or contracts.
7. Chemical corrosion test: The chemical corrosion resistance of boron nitride ceramic rods should meet the requirements of drawings or contracts.
8. Electrical insulation test: The electrical insulation of boron nitride ceramic rods should meet the requirements of drawings or contracts.
OEM Requirements
1. Details of the Boron Nitride ceramic rods such as dimensions, tolerances, and surface finish.
2. Quantity of the rods needed and any specific packaging requirements.
3. The time frame for delivery of the rods and any special shipping instructions.
4. Any additional services such as machining, coating, or assembly that need to be performed on the rods.
5. The method of payment and any other necessary financial information.
6. Information on the end use of the rods and any specific certifications or quality control requirements.
Packing Service
A. We take great care to ensure our Boron Nitride Rods maintain their quality throughout storage, transportation, and handling, keeping them in their original condition.
B.Boron nitride is a fragile ceramic material, which is why we take special care to minimize damage to our Hot-Pressed Boron Nitride Rods during storage and transportation. We use both protective outer boxes and cushioning materials to ensure the parts are not damaged, and some are even vacuum-packed for added protection.
Why Choose Us
As a professional industrial ceramic supplier, we have a series of advantages that guarantee our market share in the international
trade market.
1.Reliable quality control, complete specifications, support customization of non-standard products.
2.Professional and committed service team.
3.Multiple protection of packaging, secure and reliable.
4.Highly efficient delivery channel, safe and rest-assured.
FAQ
1.Q: What is Boron Nitride Ceramic Rods?
A: Boron nitride (BN) is a synthetically produced ceramic material with properties similar to those of graphite. It's an ideal material for a variety of applications, including machining, electrical insulation, and high temperature resistant materials. The rods are made from BN and are usually cylindrical in shape. They are used in a variety of industrial applications due to their excellent thermal, electrical, and chemical properties.
2.Q: What are the Adavantages use Boron Nitride ceramic rods?
A: Boron Nitride ceramic rods offer excellent thermal conductivity, good electrical insulation, high thermal shock resistance, low coefficient of friction, and good corrosion resistance. They are also lightweight and non-toxic. These characteristics make them suitable for a wide range of applications, such as high temperature bearings, electronic components, and heat exchangers. Additionally, Boron Nitride is a very hard and durable material, making it an ideal choice for wear parts and other components that require a long service life.
Boron nitride ceramics are a hot new material in the advanced ceramics market, and are used in a wide range of industrial applications. BN is ideal for applications requiring high thermal conductivity, chemical inertness, and electrical insulation.
Boron Nitride Plate / Sheet is made of powdered hexagonal boron nitride through high-temperature vacuum hot-pressing sintering. CS Ceramic provides customers with high-quality Boron Nitride Plates / Sheets.
Boron Nitride is a synthetic technical ceramic material. It has outstanding thermal characteristics.and excellent thermal shock resistance. The unique property of BN crucible is that it is non-wetting with molten metal.
Boron nitride (BN) nozzles made of hot pressed boron nitride ceramics have outstanding thermal shock resistance, crack or break will not happen when boron nitride nozzles undergo sudden heating or cooling.
Boron Nitride Tube, BN Tube, is made of powdered hexagonal boron nitride through high-temperature vacuum hot-pressing sintering. Heeger Materials is a worldwide supplier of high-quality Boron Nitride Tubes and other boron nitride products.
